1.8 inch Screen No Frame 14PIN SPI TFT LCD Display Screen ST7735S Drive IC 128(RGB)*160

1.Specification parameters

LCD Size：2.0 Inch(Diagonal)
Display Mode：Normally black
Resolution：240(H)RGB x 320(V)
Dot pitch：0.051(H) x 0.153(V) mm
Active area：30.6(H) x 40.8(V) mm
Module size：34.6(H) x 47.8(V) x2.05(D) mm
Color arrangement：RGB Vtertical stripe
Interface：SPI4 LINE
Drive IC：ST7789
Luminance(cd/m2): 300 (TYP)
Viewing Direction: All View
Backlight: 3 White LED
Operating Temp: -20℃~ + 70℃
Storage Temp: -30℃~+ 80℃

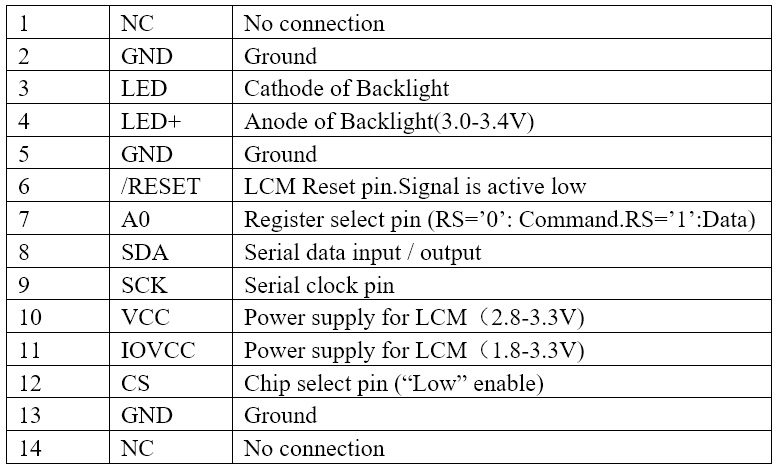

3.Pin Descriptions

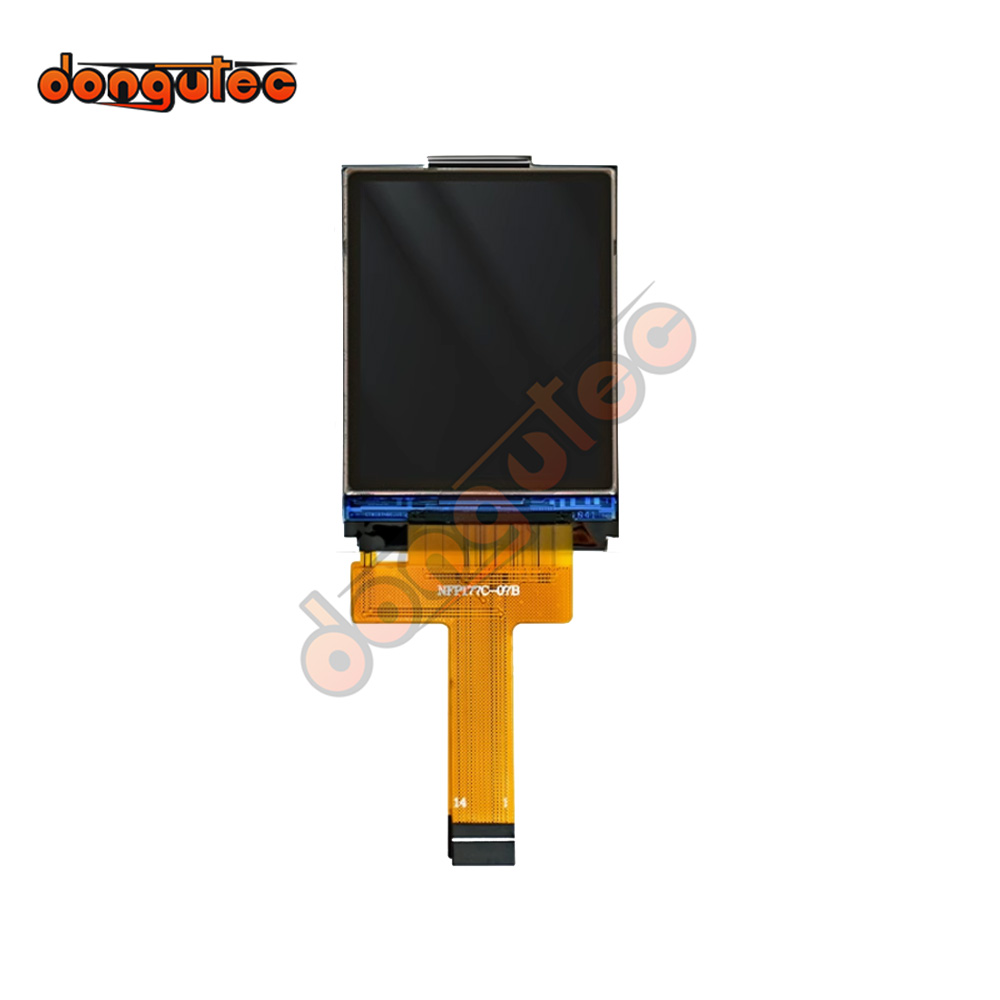

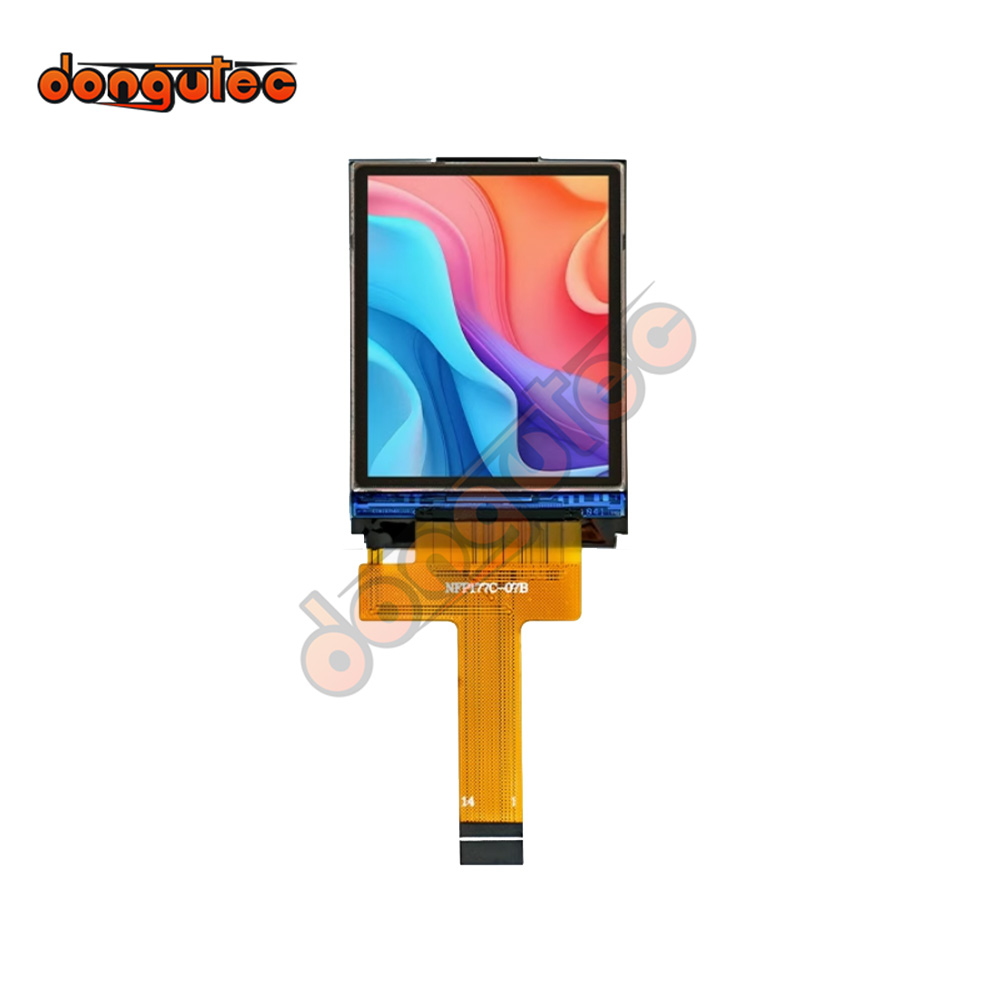

4.Photo Display

5.Packing & Delivery
