LCD12232 12232W LCD Graphic Screen Module SED1520 Controller White/Blue/Yellow Green Backlight Parallel Interface

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1.Specification parameters

    Dot Matrix: 122×32 Dots
    LCD Mode: STN
    Controller IC: SBN1661G-M18 or Equivalent
    Driving Method: 1/32 Duty; 1/6 Bias
    Viewing Angie: 6 O’clock direction
    6800 or 8080 serial 8-Bit MPU Interface
    Backlight: LED
    Operating Temperature Range: -20 to +70℃
    Storage Temperature Range : -30 to +80℃

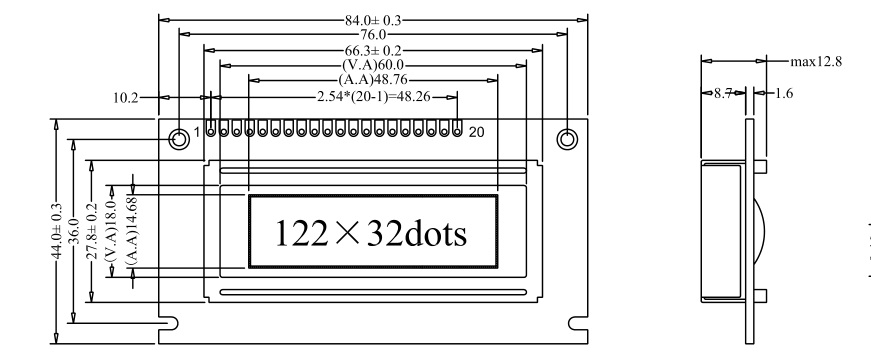

    2.Extenal Dimensions

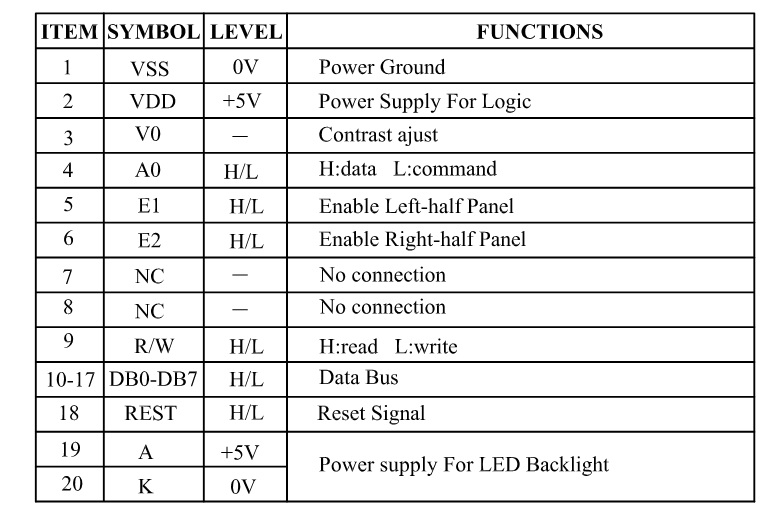

    3.Pin Descriptions

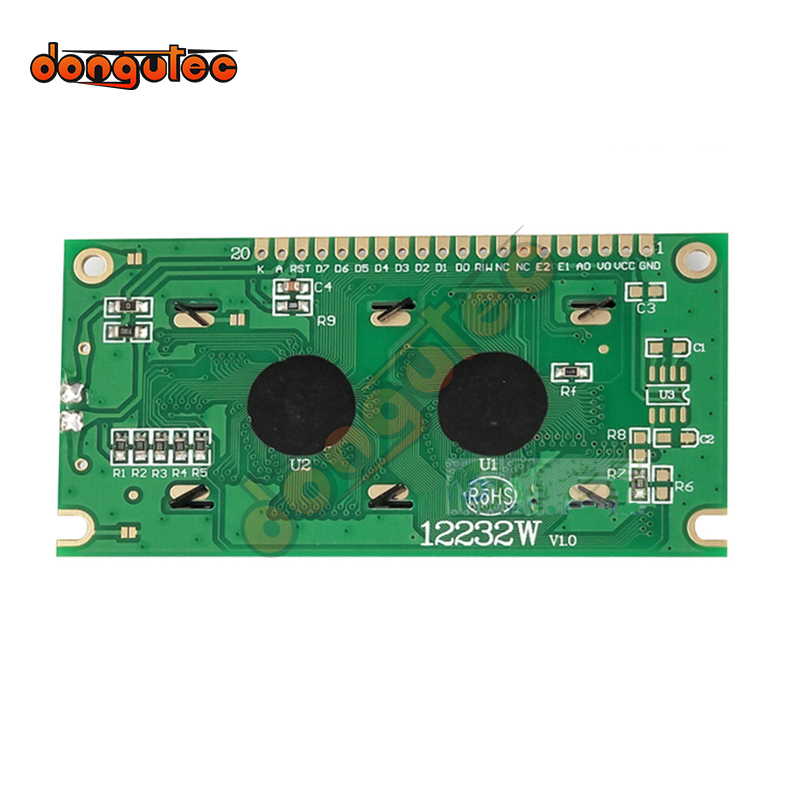

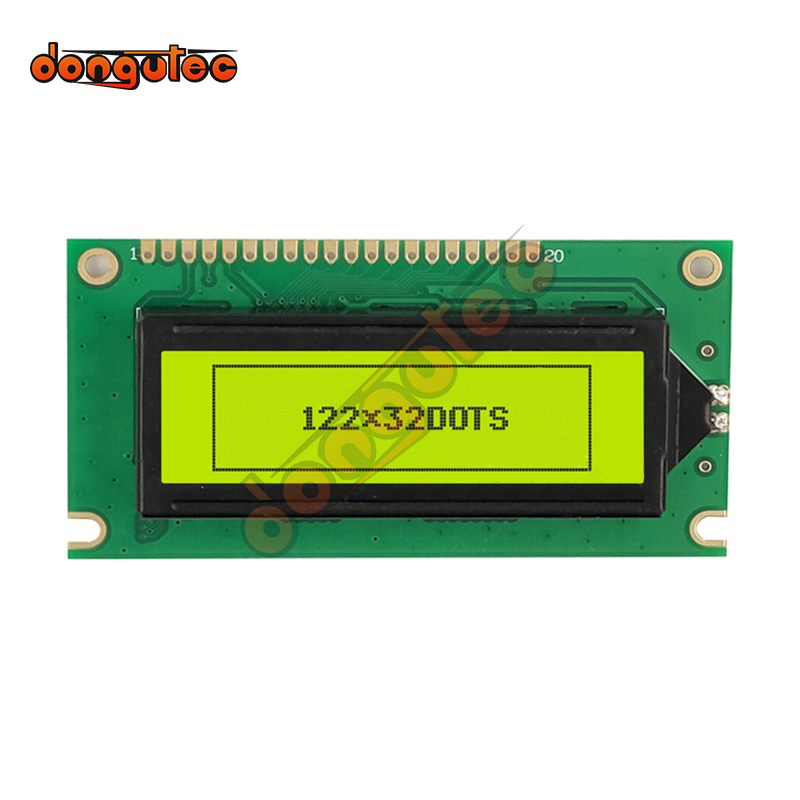

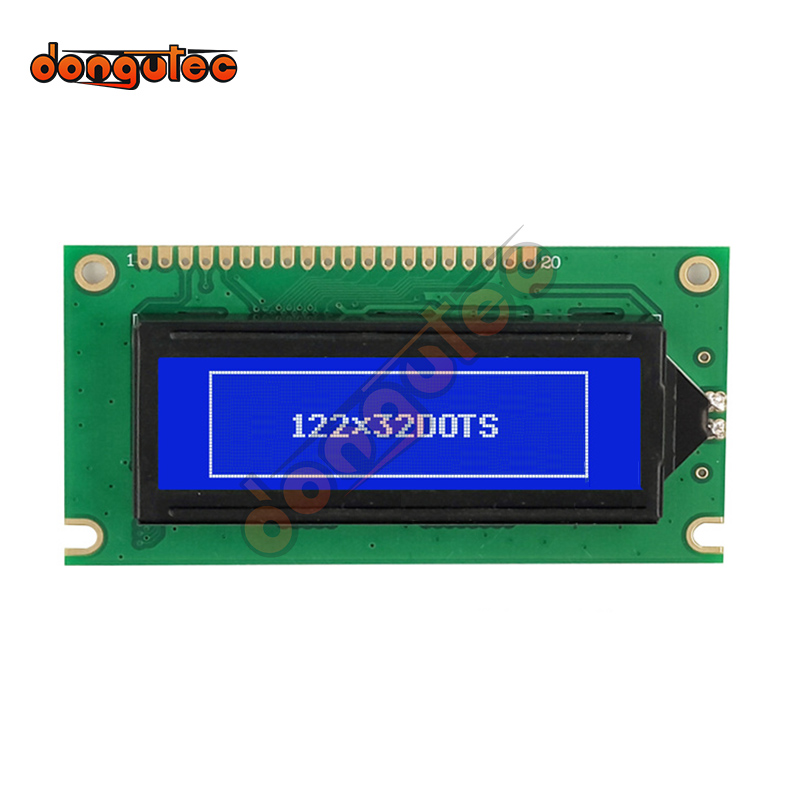

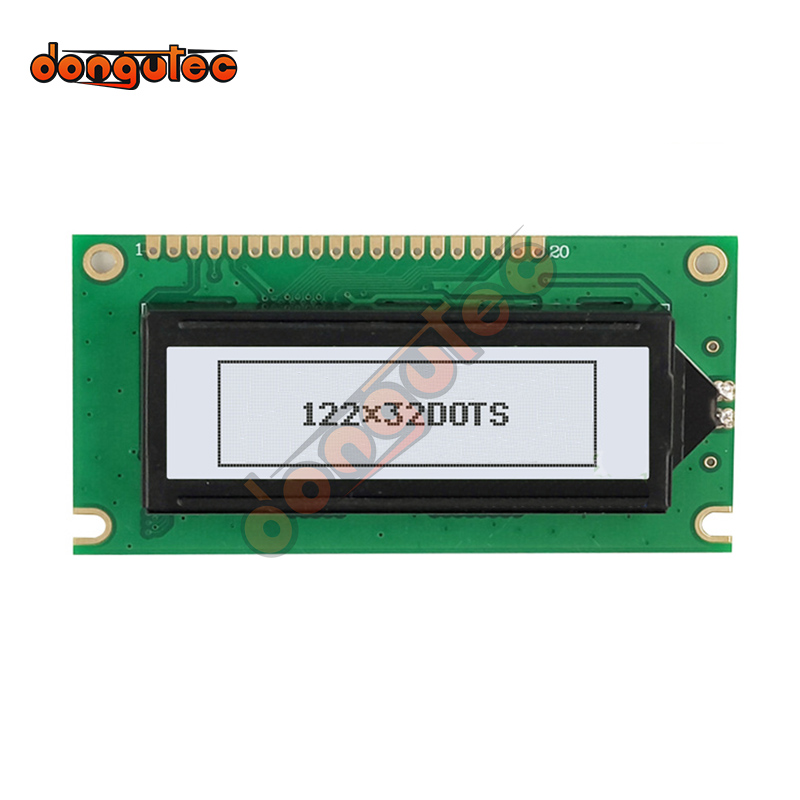

    4.Photo Display


    5.Packing & Delivery
