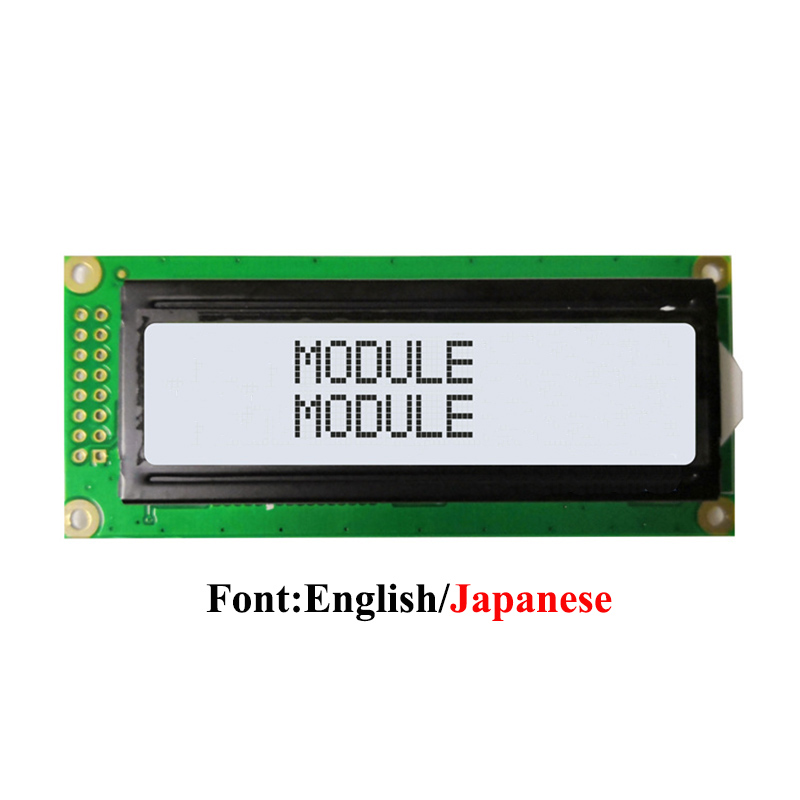

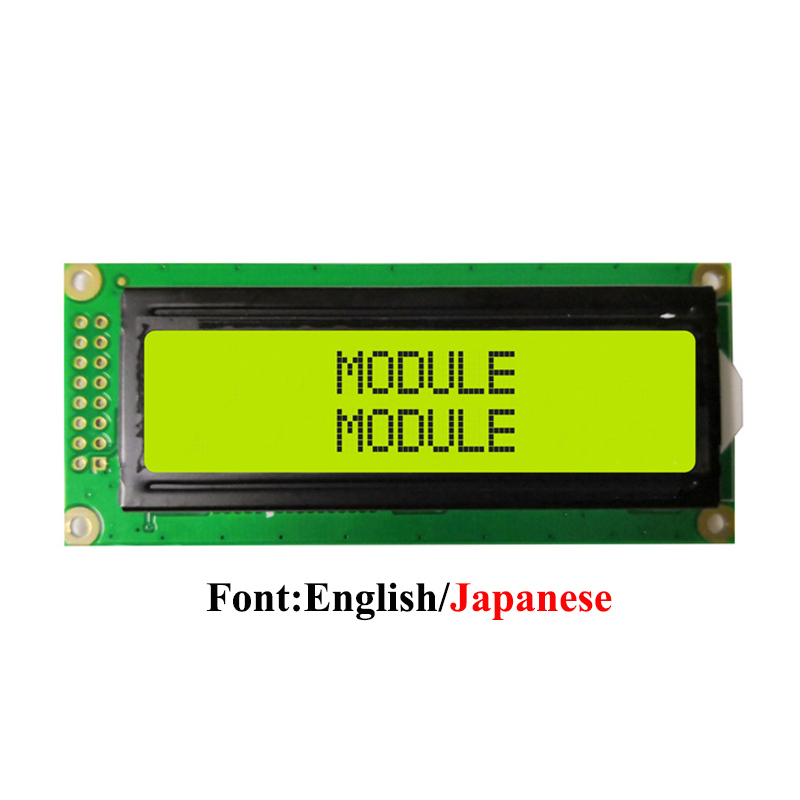

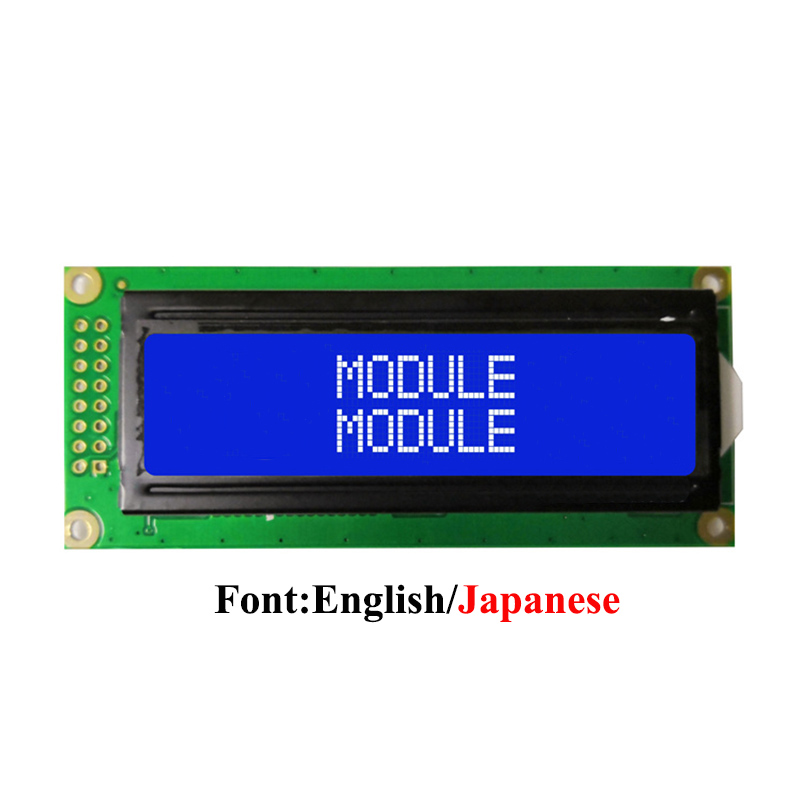

16X2 1602 Character LCD Module 5V 1602DF SPLC780 or Equivalent Blue/Yellow Green/Gray English/Japanese
16X2 1602 Character LCD Module 5V 1602DF SPLC780 or Equivalent Blue/Yellow Green/Gray English/Japanese
Quantity
Detail
Customer Reviews
1.Specification parameters
Characters: 16×2 Lines
Characters: 16×2 Lines
LCD Mode: STN
Controller IC: SPLC780D or Equivalent
Driving Method: 1/16 Duty; 1/5Bias
Viewing Angie: 6 O’clock direction
6800 serial 8-Bit/4-Bit MPU Interface
Backlight: LED
Operating Temperature Range: -20 to +70℃;
Storage Temperature Range : -30 to +80℃;
2.Extenal Dimensions
3.Pin Descriptions
4.Photo Display
5.Packing & Delivery
2.Extenal Dimensions
3.Pin Descriptions
4.Photo Display
5.Packing & Delivery
