16X2 1602 Character LCD Module 5V 1602DF SPLC780 or Equivalent Blue/Yellow Green/Gray

Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
1.Specification parameters
Characters: 16×2 Lines
LCD Mode: STN
Controller IC: SPLC780D or Equivalent
Driving Method: 1/16 Duty; 1/5Bias
Viewing Angie: 6 O’clock direction
6800 serial 8-Bit/4-Bit MPU Interface
Backlight: LED
Operating Temperature Range: -20 to +70℃;
Storage Temperature Range : -30 to +80℃;

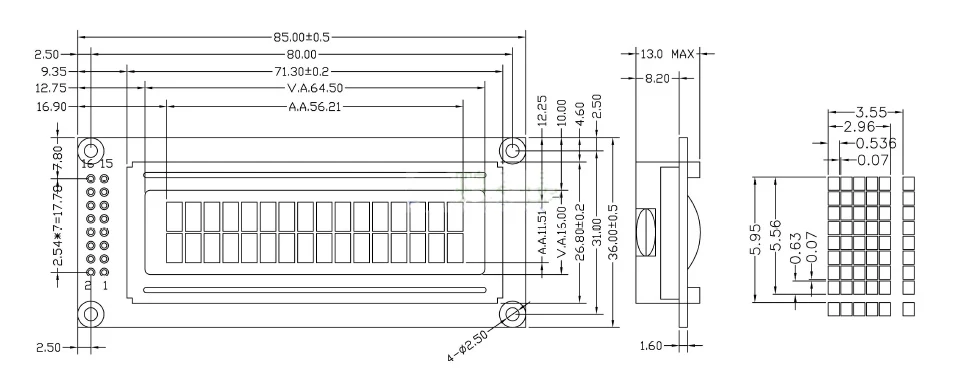

2.Extenal Dimensions
Pasted Image

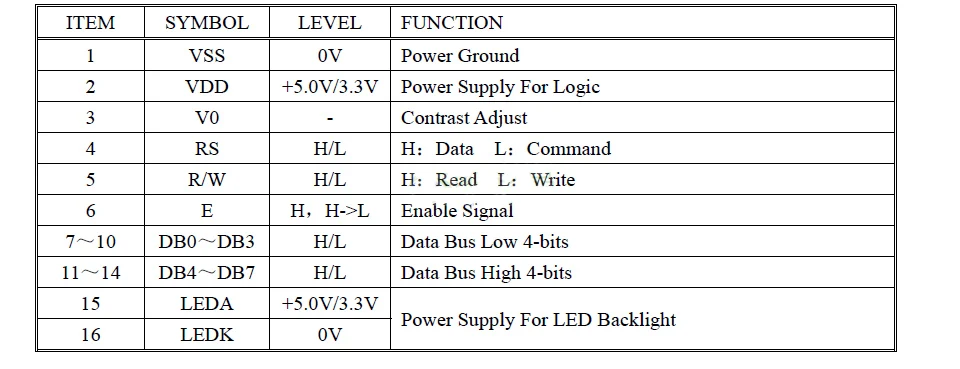

3.Pin Descriptions
Pasted Image

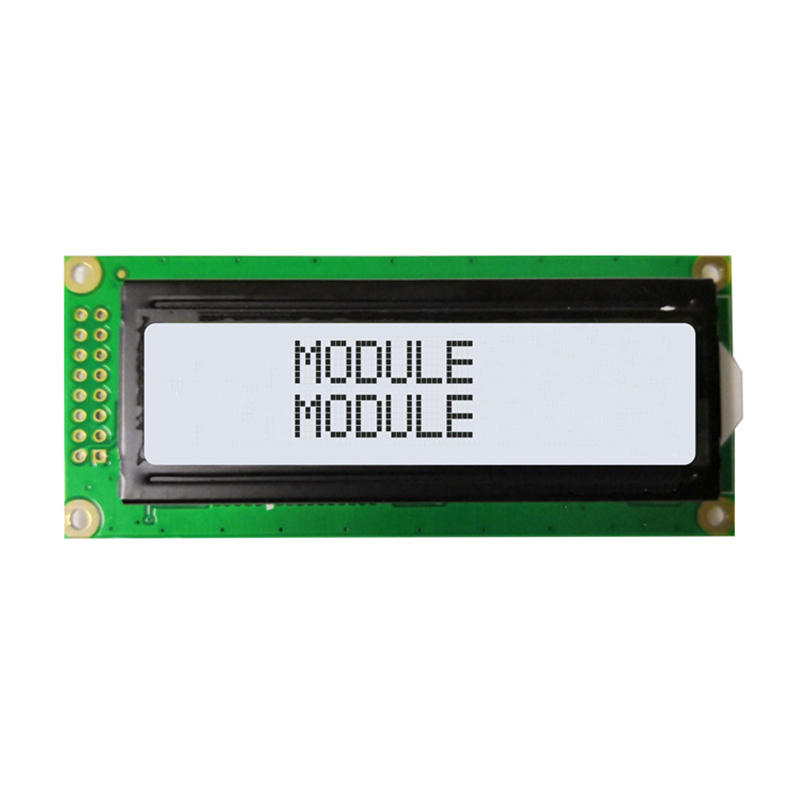

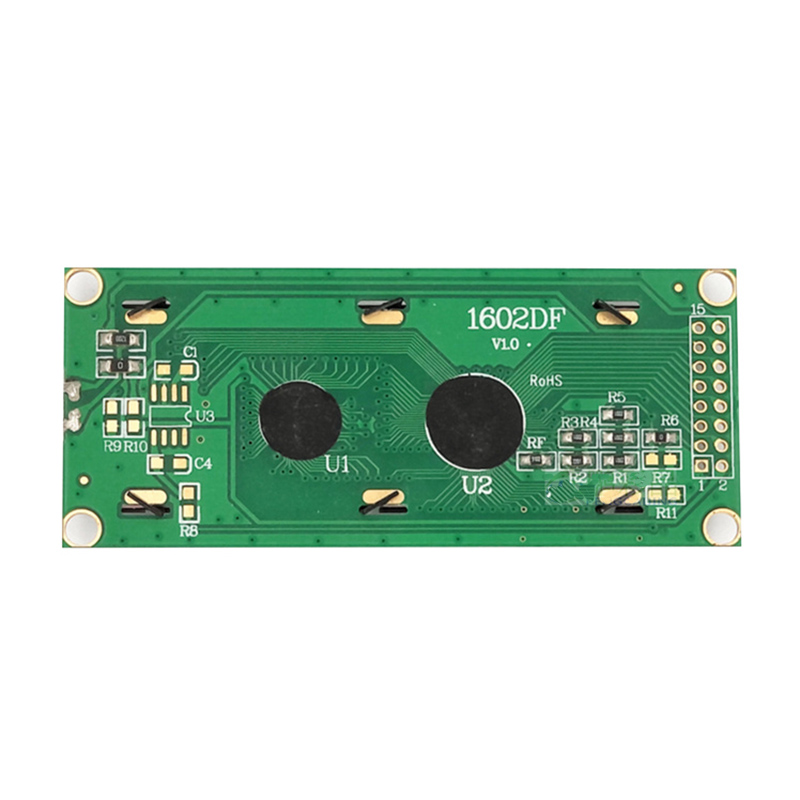

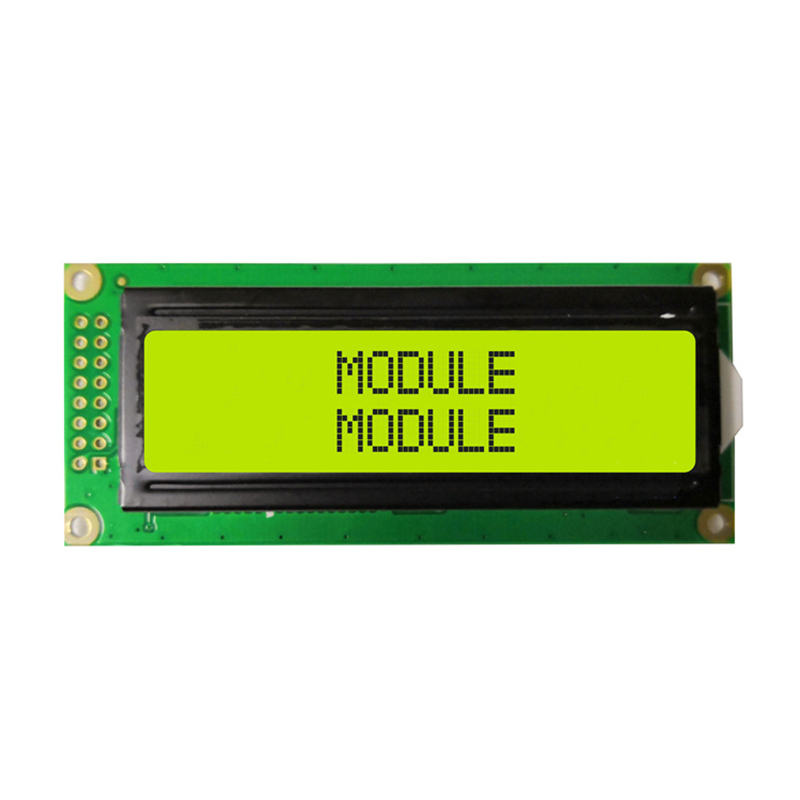

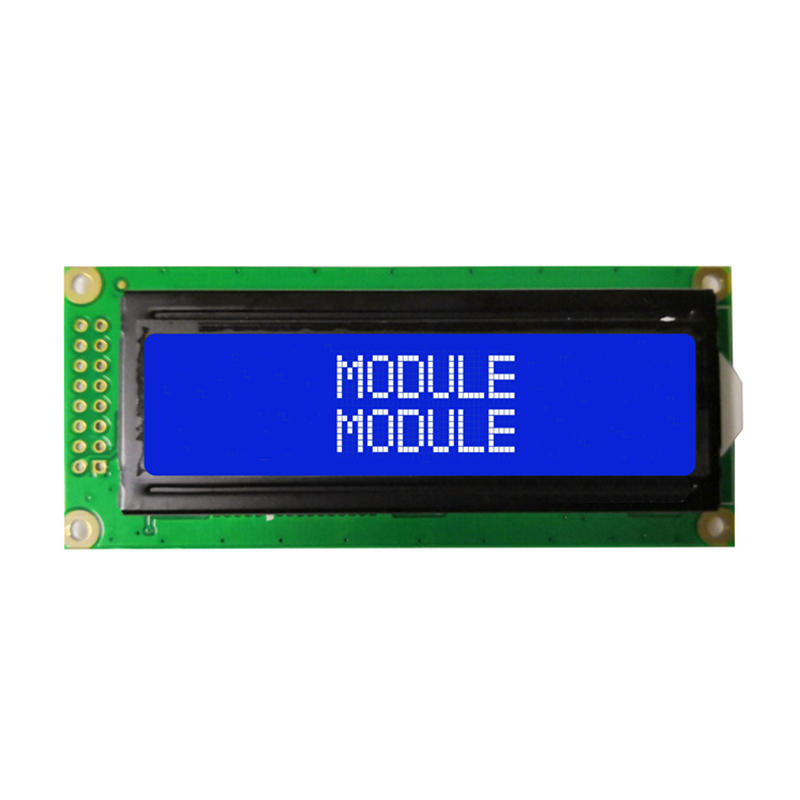

4.Photo Display


5.Packing & Delivery
