2004 LCD 20X4 Character Module Parallel Port Screen 5V 2004C Blue/Yellow Green/Gray English/Japanese

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1.Specification parameters
    Characters: 20×4 Lines
    LCD Mode: STN
    Controller IC: SPLC780D or Equivalent
    Driving Method: 1/16 Duty; 1/5Bias
    Viewing Angie: 6 O’clock direction
    6800 serial 8-Bit/4-Bit MPU Interface
    Backlight: LED
    Operating Temperature Range: -20 to +70℃;
    Storage Temperature Range : -30 to +80℃;

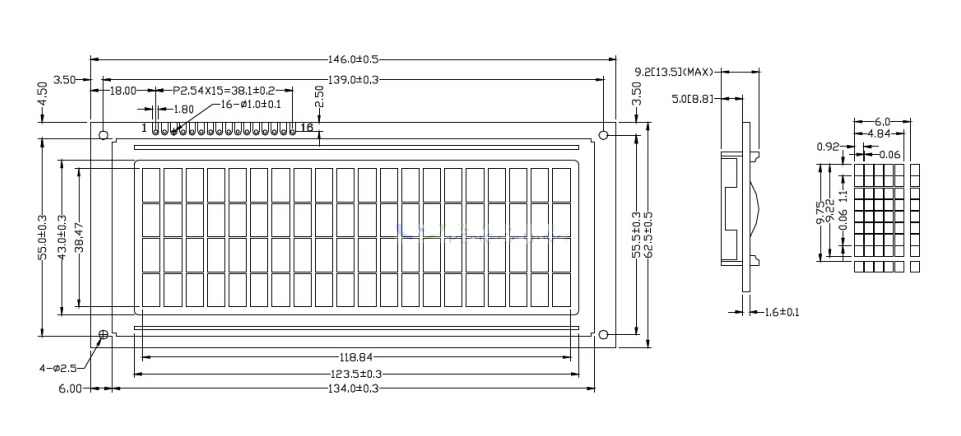

    2.Extenal Dimensions

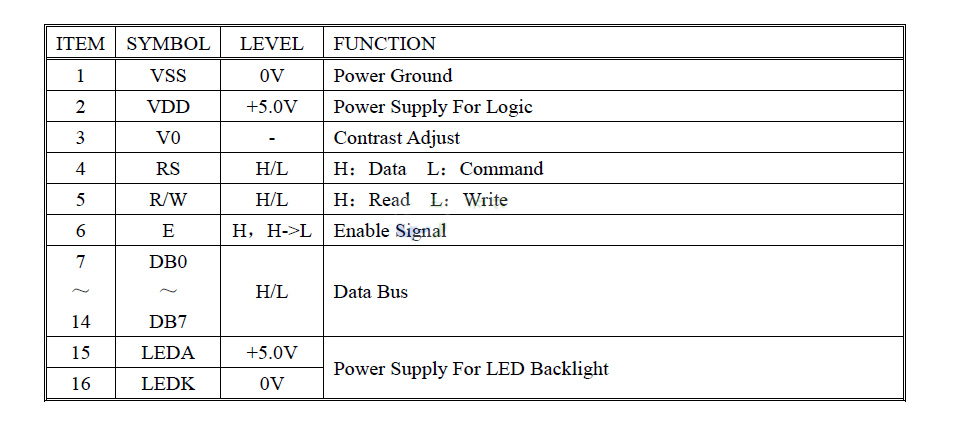

    3.Pin Descriptions

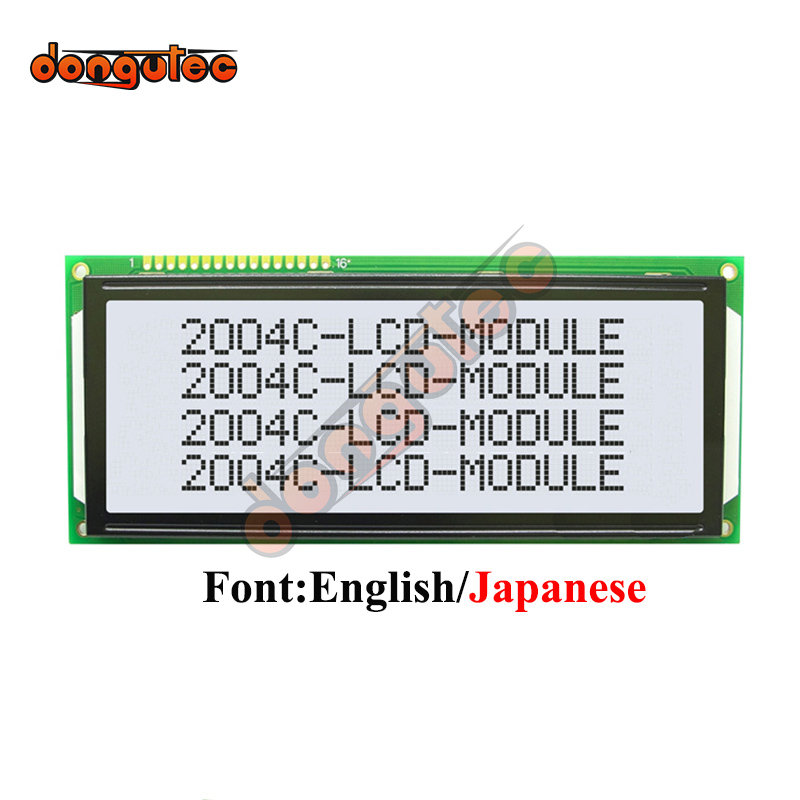

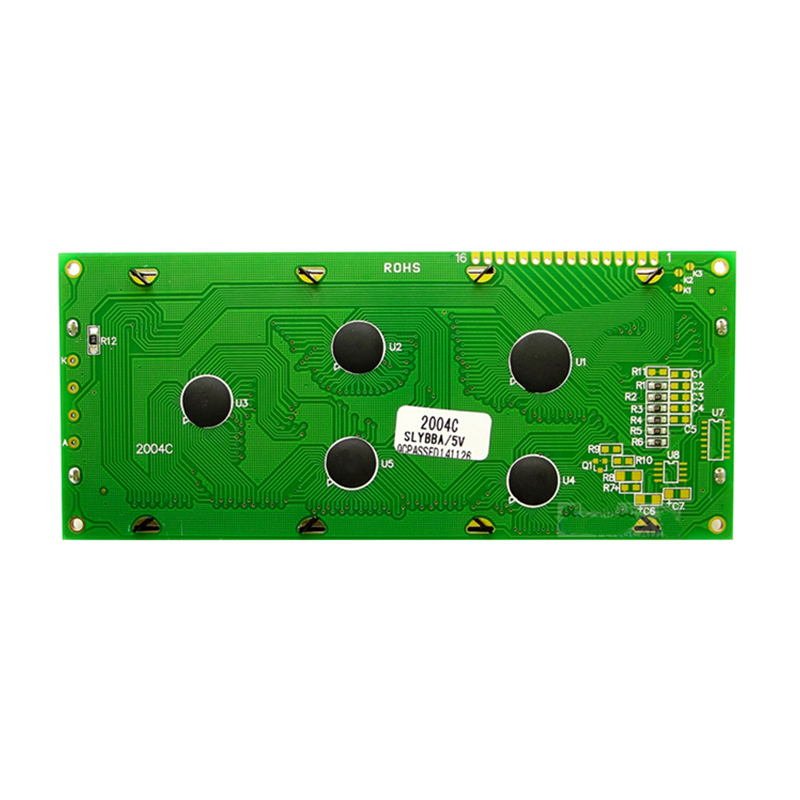

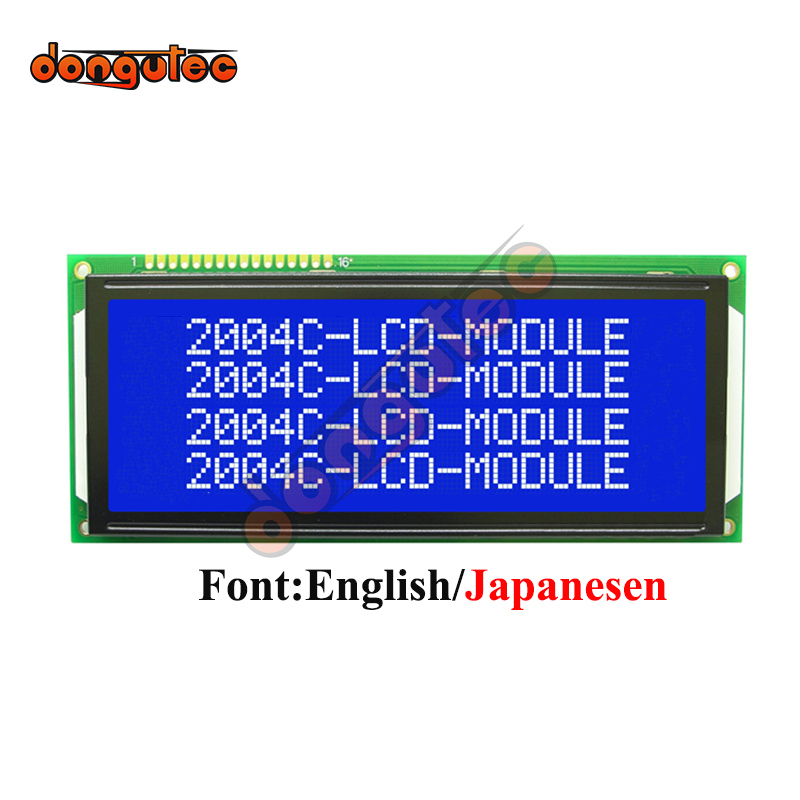

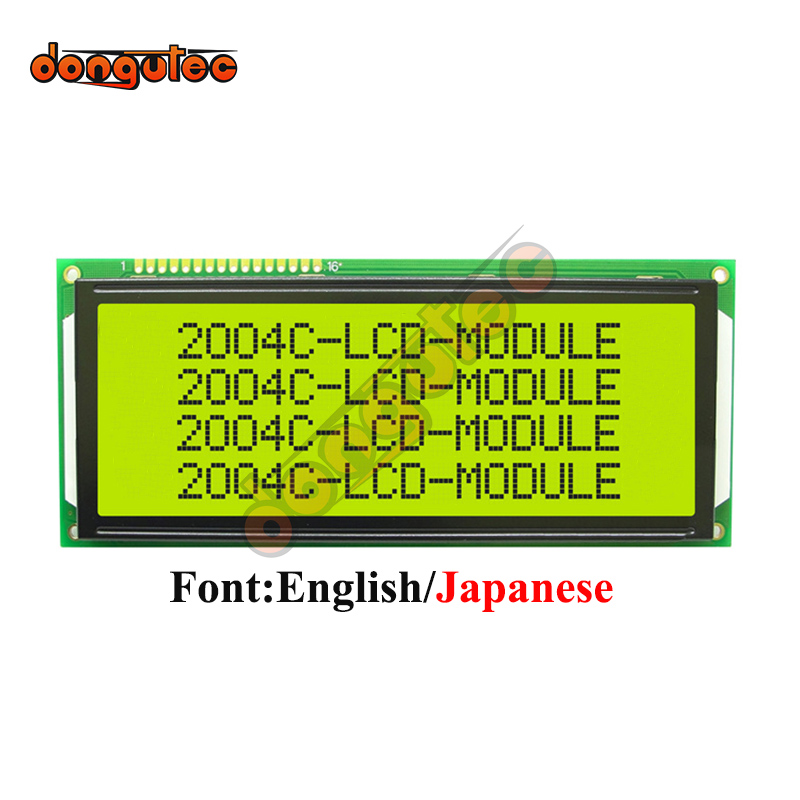

    4.Photo Display


    5.Packing & Delivery
