20x4 2004 Big Large LCD Display Module 5V 146*62.5mm HD44780 LC2042 WH2004L SPLC780D1
20x4 2004 Big Large LCD Display Module 5V 146*62.5mm HD44780 LC2042 WH2004L SPLC780D1
Quantity
Detail
Customer Reviews
1.Specification parameters
3.Pin Descriptions
4.Photo Display
5.Packing & Delivery
Model: LC2042
Display Format：20 Characters x 4 Lines
Outline Dimension (WxHxT)：146.0 x 62.5 x 14.0 mm
Viewing Area (WxH)：123.5 x 43.0 mm
Character Size (WxH)： 4.84 x 9.22 mm
Dot Size (WxH) ：0.92 x 1.10 mm
Controller：SPLC780D1 or EQV
Interface：4-bit or 8-bit parallel (6800 series MPU)
Working voltage：5V
Product specifications:STN

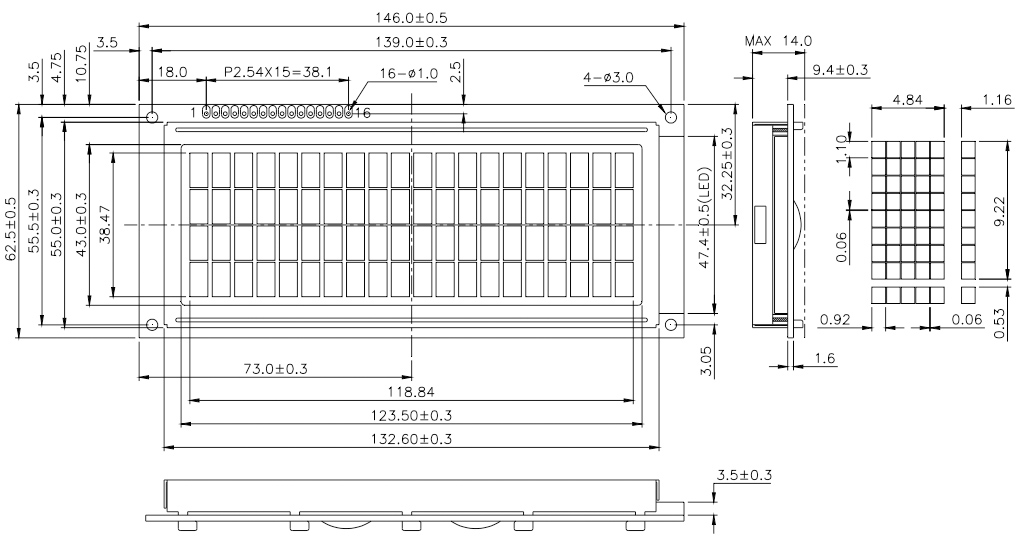

2.Extenal Dimensions

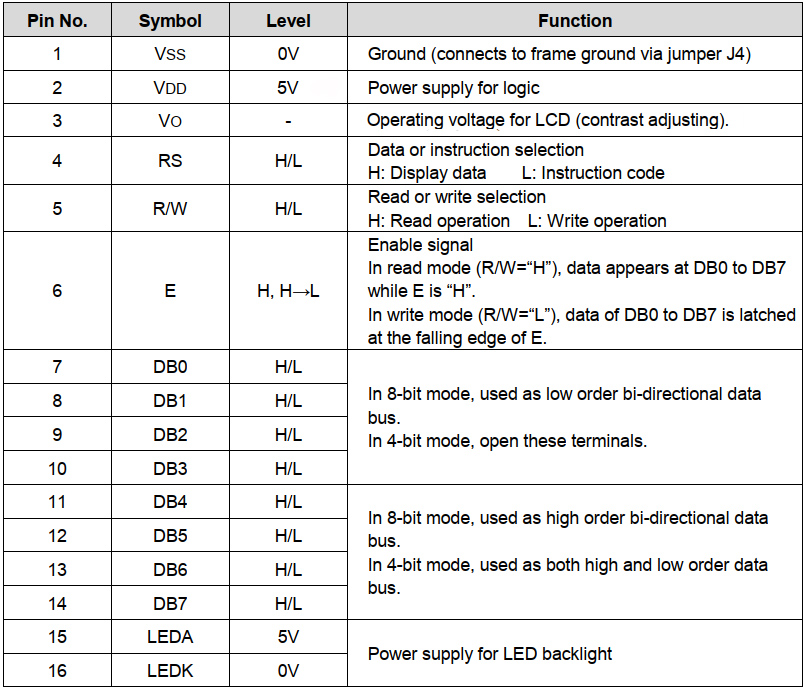

3.Pin Descriptions

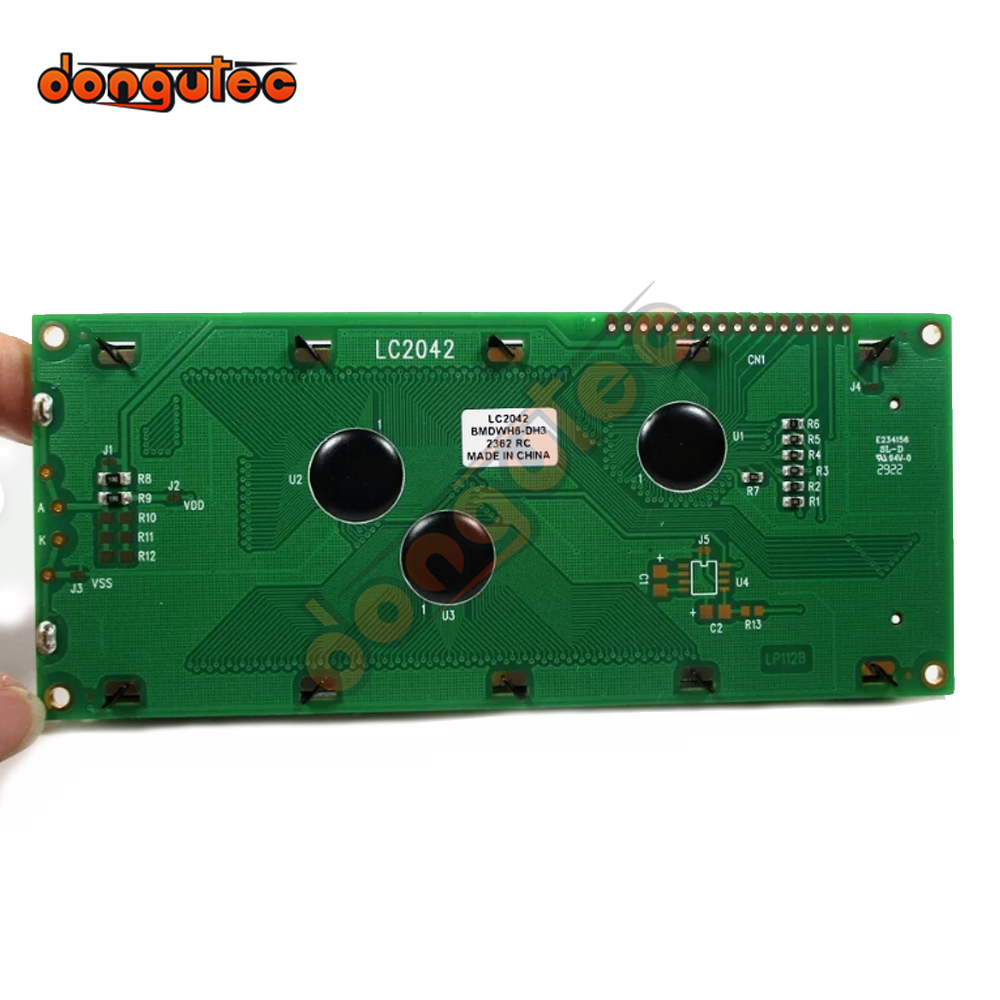

4.Photo Display
5.Packing & Delivery
