5V 1602 1602N LCD Screen AIP31066 or EQV Blue/Yellow Green/Gray

Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
1.Specification parameters

Characters: 16×2 Lines

LCD Mode: STN Gray/Transflective,Positive

Controller IC: AIP31066 or Equivalent

Driving Method: 1/16 Duty; 1/5Bias

Viewing Angie: 6 O’clock direction

6800 serial 8-Bit/4-Bit MPU Interface

Backlight: LED Yellow –Green

Operating Temperature Range: -20 to 70℃;

Storage Temperature Range : -30 to 80℃;

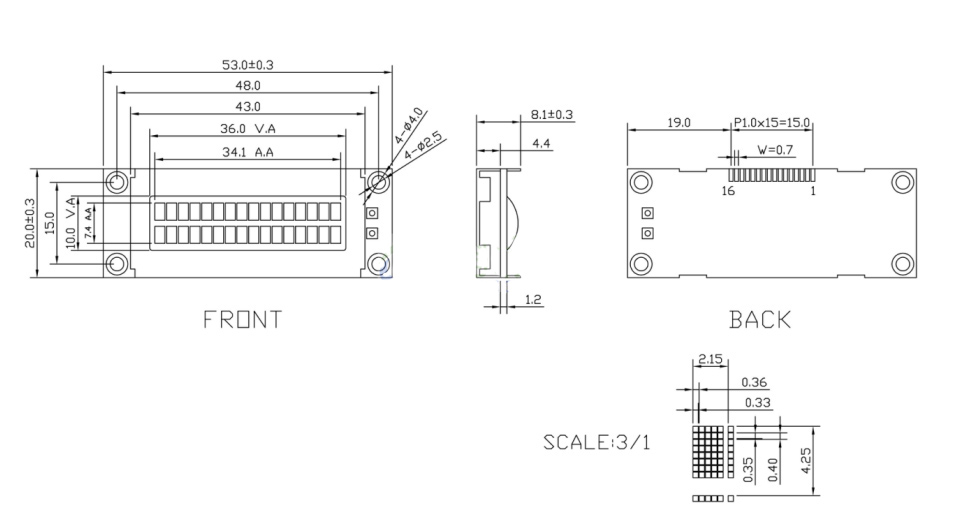

2.Extenal Dimensions

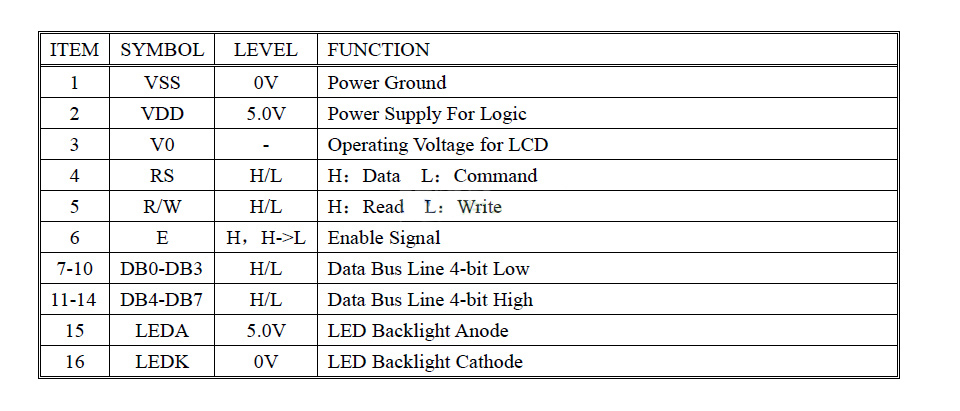

3.PinDescriptions

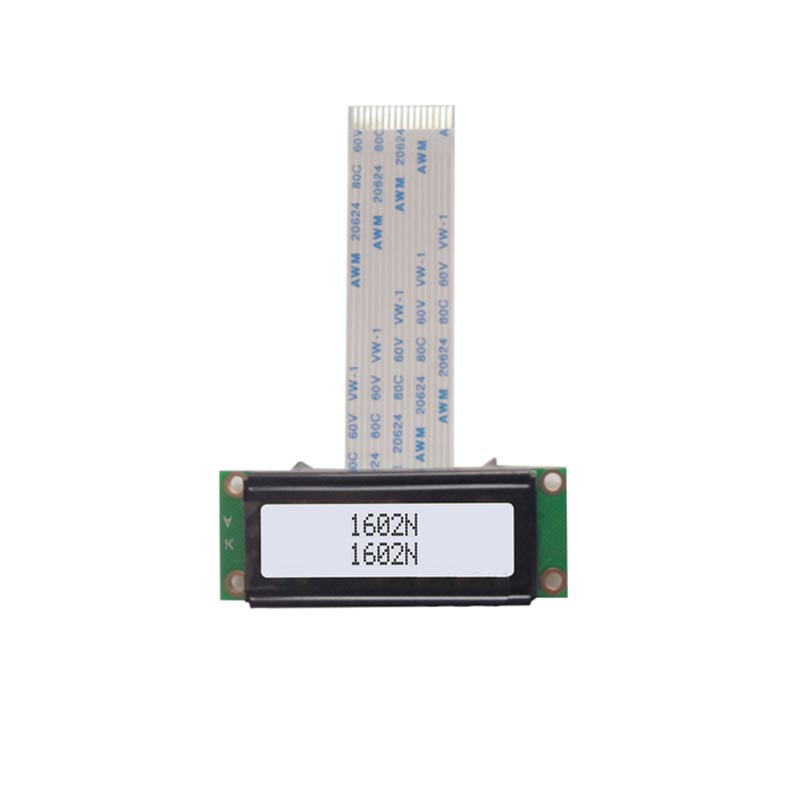

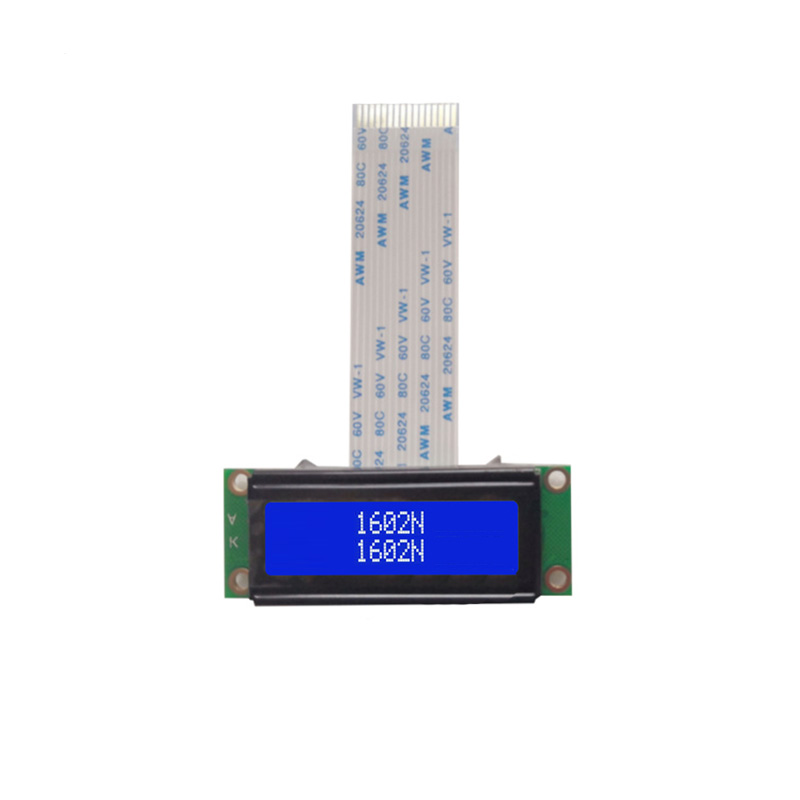

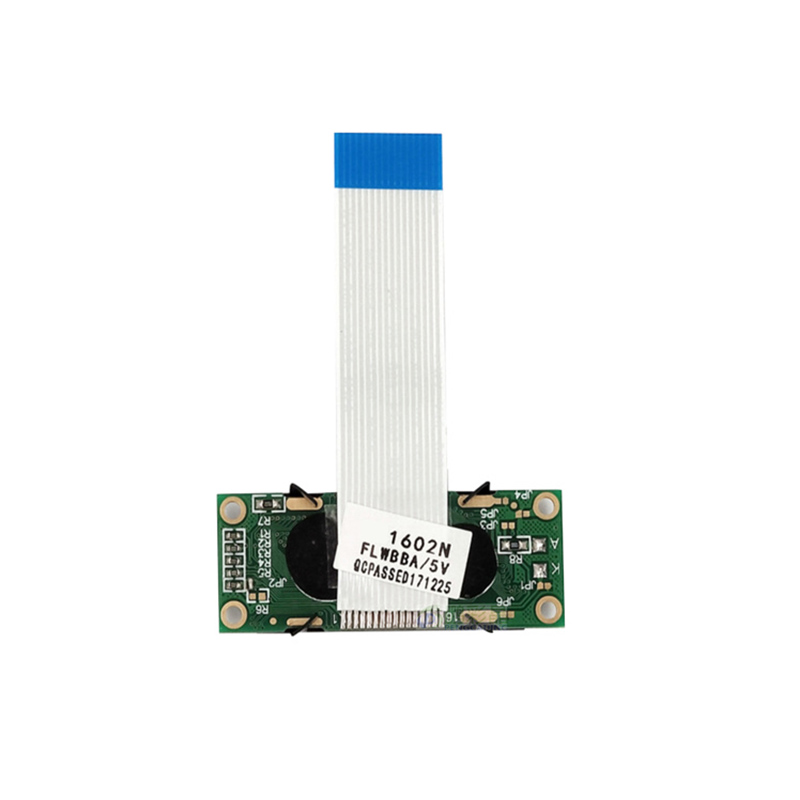

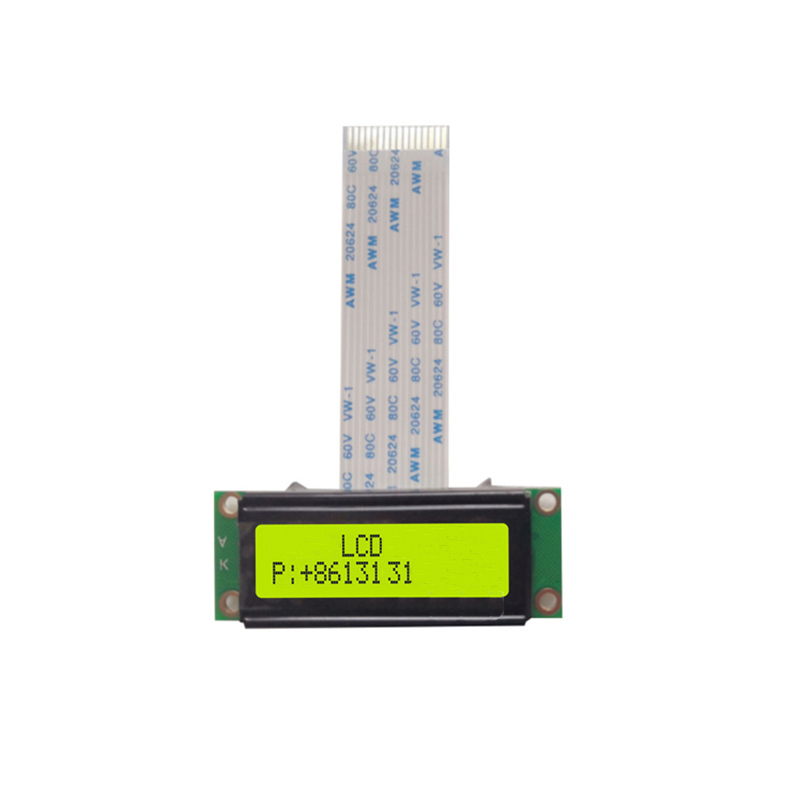

4.Photo Display


5.Packing & Delivery
