LCD 2002 2002B 20X2 Character Liquid Crystal Display Module Screen Parallel Port Screen English/Russian/Japanese/European

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1.Specification parameters
    Characters: 20×2 Lines
    LCD Mode: STN
    Controller IC: AIP31066 or Equivalent
    Driving Method: 1/16 Duty; 1/5Bias
    Viewing Angie: 6 O’clock direction
    6800 serial 8-Bit/4-Bit MPU Interface
    Backlight: LED
    Operating Temperature Range: -20 to +70℃;
    Storage Temperature Range : -30 to +80℃;

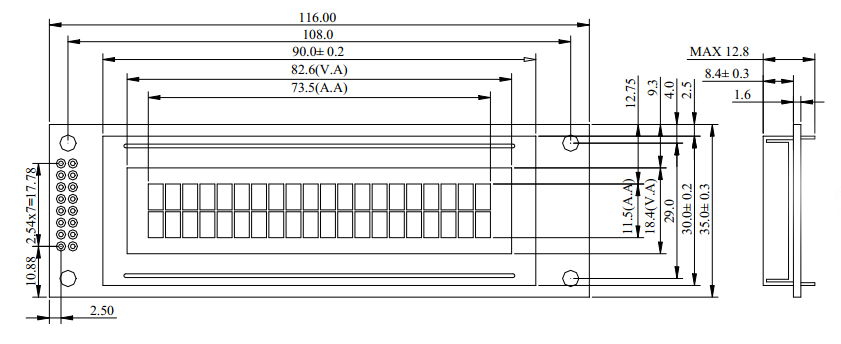

    2.Extenal Dimensions

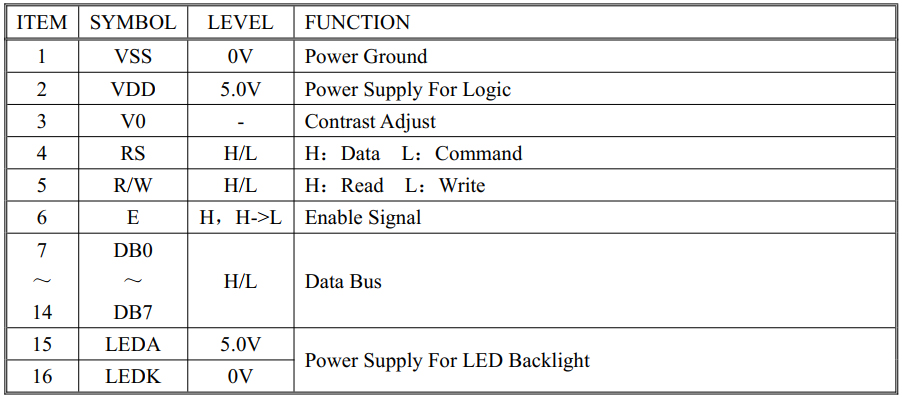

    3.Pin Descriptions

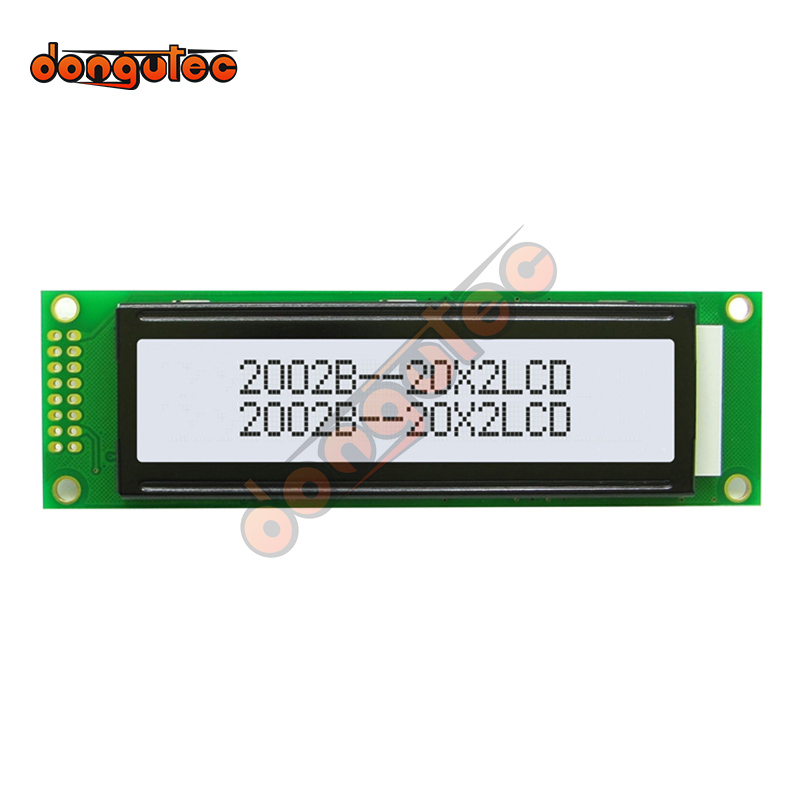

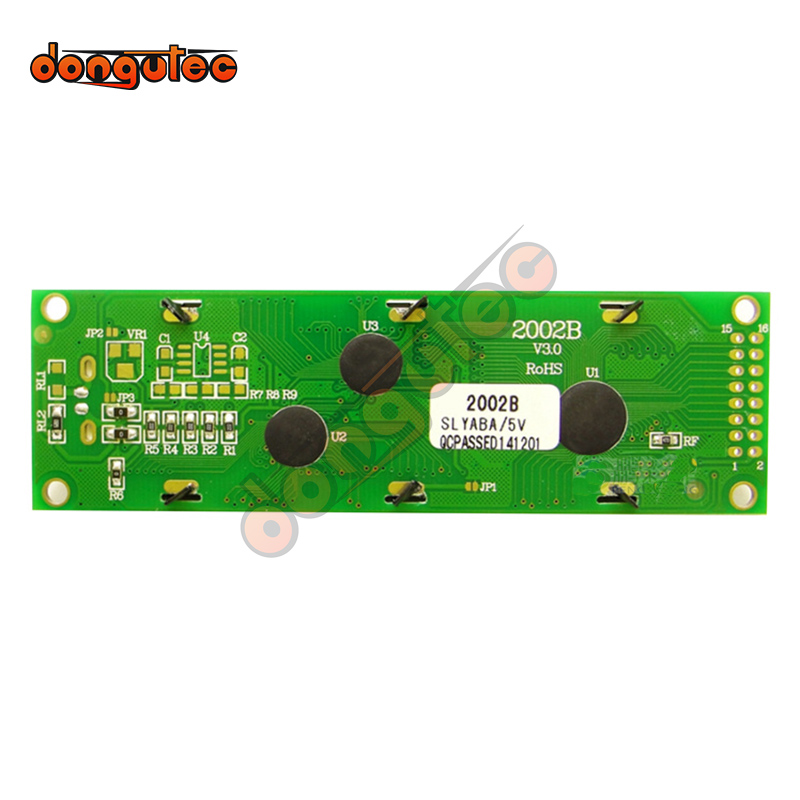

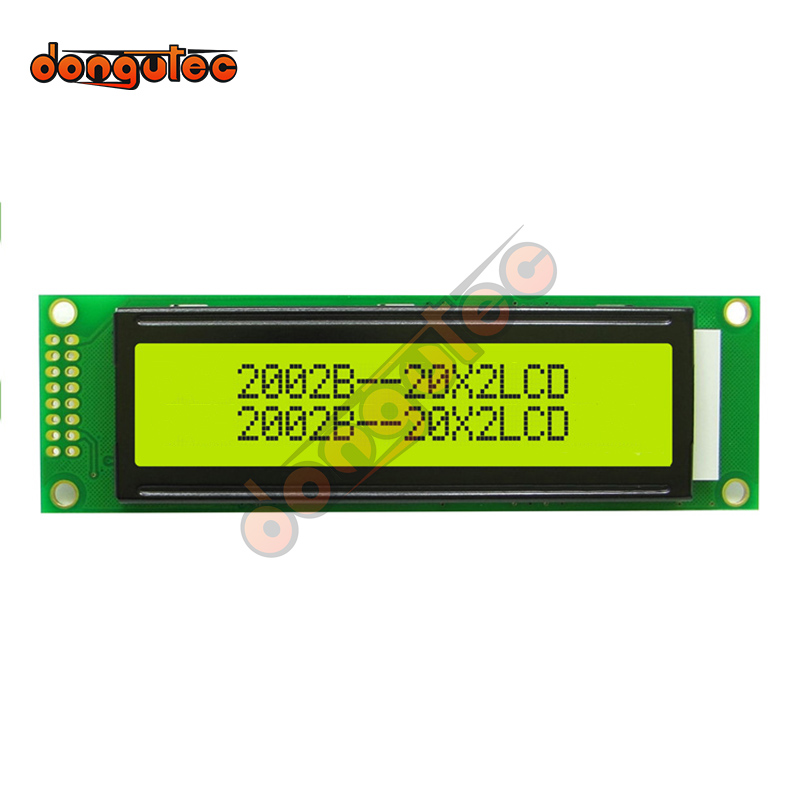

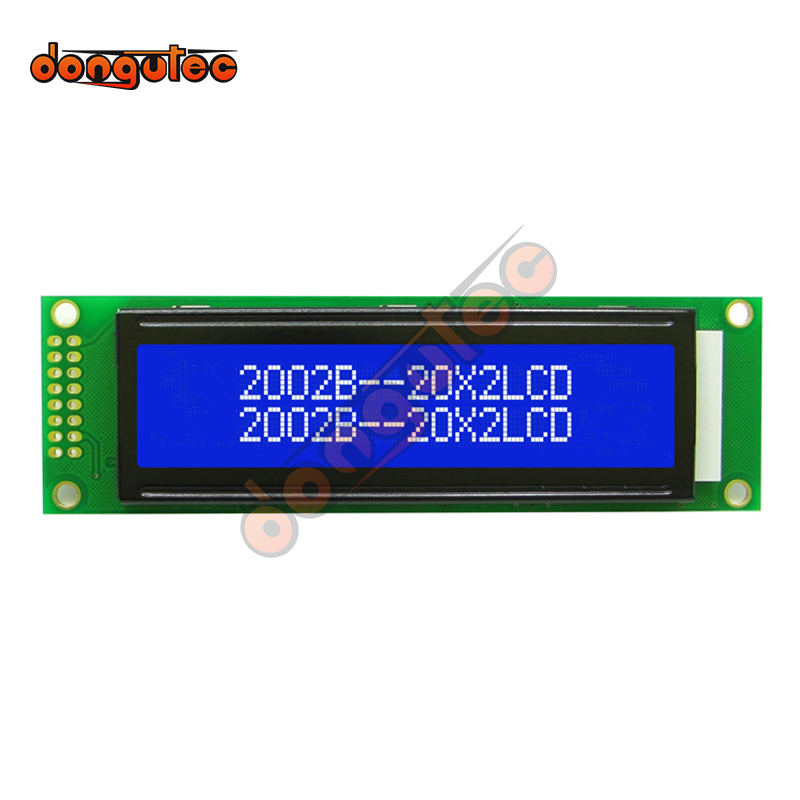

    4.Photo Display


    5.Packing & Delivery
