10PIN TN Positive 1-Digit Segment LCD Panel Static Drive Wide Temperature Segment LCD Screen 3V HT1621

1.Specification parameters

Display Content: 1 digits
Overall Dimensions: 33*50*2.8mm
Sight Size: 27.9*38.9mm
Active Area: 65*50.8mm
Perspective: 6:00
Backlight: No
Operating Voltage: 5V / 3V
Operating Temperature:-30℃ ~ 75℃
Storage Temperature:-30℃ ~ 85℃
Driving Mode: static
Display mode: TN, positive display
Connection mode: metal pin

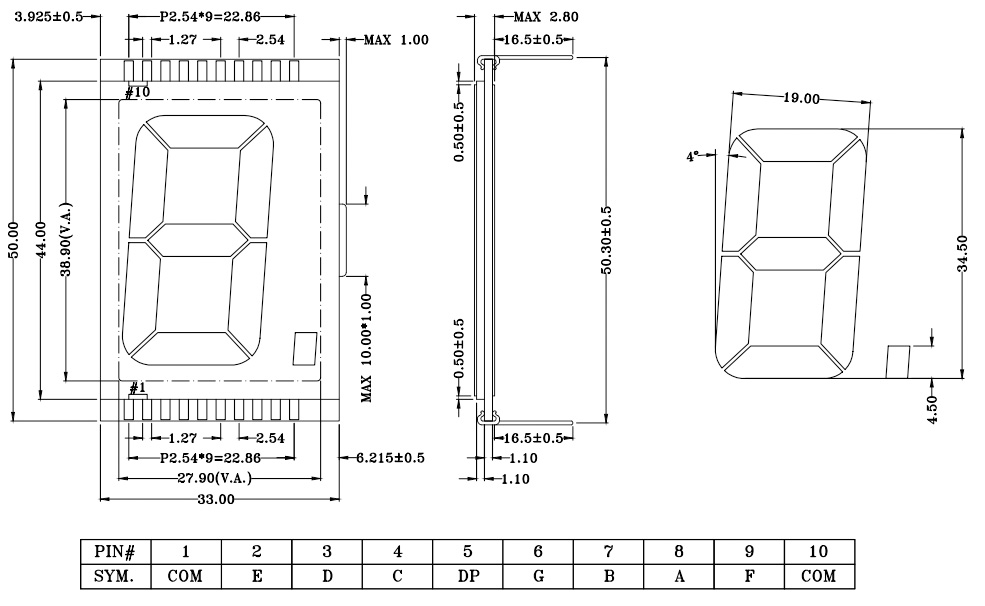

2.Extenal Dimensions、Pin Descriptions

3.Photo Display

4.Packing & Delivery
