10PIN TN Positive 3-Digits Segment LCD Panel 3.0V Digital Tube Display

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    10PIN TN Positive 3-Digits Segment LCD Panel 3.0V Digital Tube Display

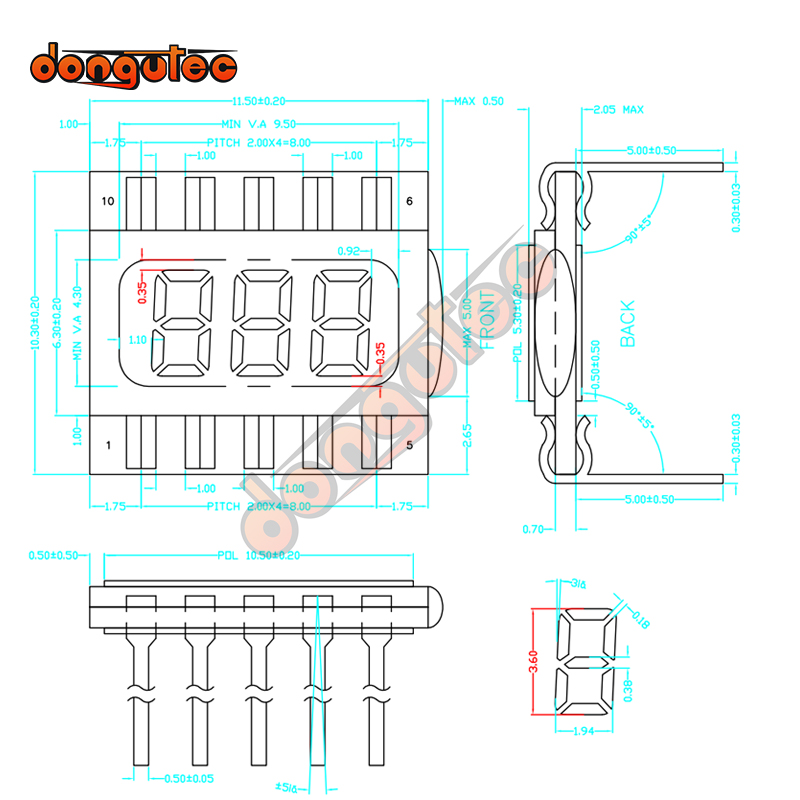

    Dimensions: 11.5*10.3/6.3*2MM, 10PIN.
    Conductive glass thickness: 0.7mm
    Minimum pixel gap: 10um

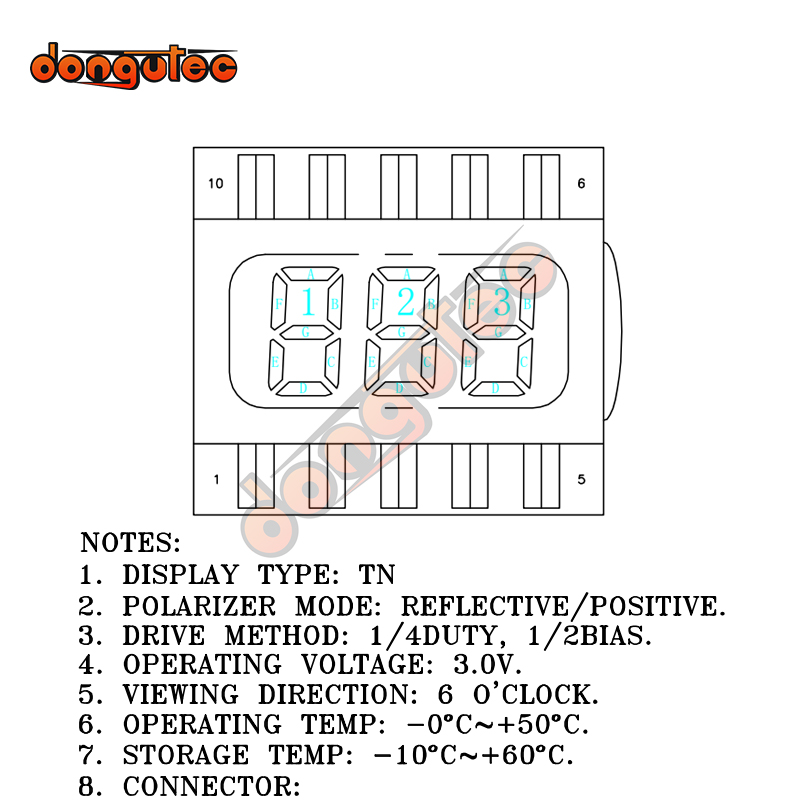

    Duty ratio: 1/4duty 1/2BIAS
    Voltage: 3.0V
    Working temperature: -0 degrees to +50 degrees
    Viewing direction: 6 points
    Connection method: metal pin
    TN type viewing range 60 degrees. Reflection
