13PIN TN Positive 3-1/2 Digits Segment LCD Panel Temperature Humidity Screen HT1621
13PIN TN Positive 3-1/2 Digits Segment LCD Panel Temperature Humidity Screen HT1621
20 sold
Quantity
Detail
Customer Reviews
1.Specification parameters
Display content: 3.5-Digits
Outline Dimension: 30.0*16.0*2.8mm
Active Area: 27.6*11.6mm
Display mode: TN , Positive
Visual angle: 12 O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty , 1/3 Bias
Working voltage: 3.0V
PIN NO.: 13P
Drive IC: HT1621 (doesn't contain, buy by oneself)
Consumption: lower than 10mW
Operating Temperature: -40 ~ 70 degrees
Storage Temperature: -45 ~ 80 degrees

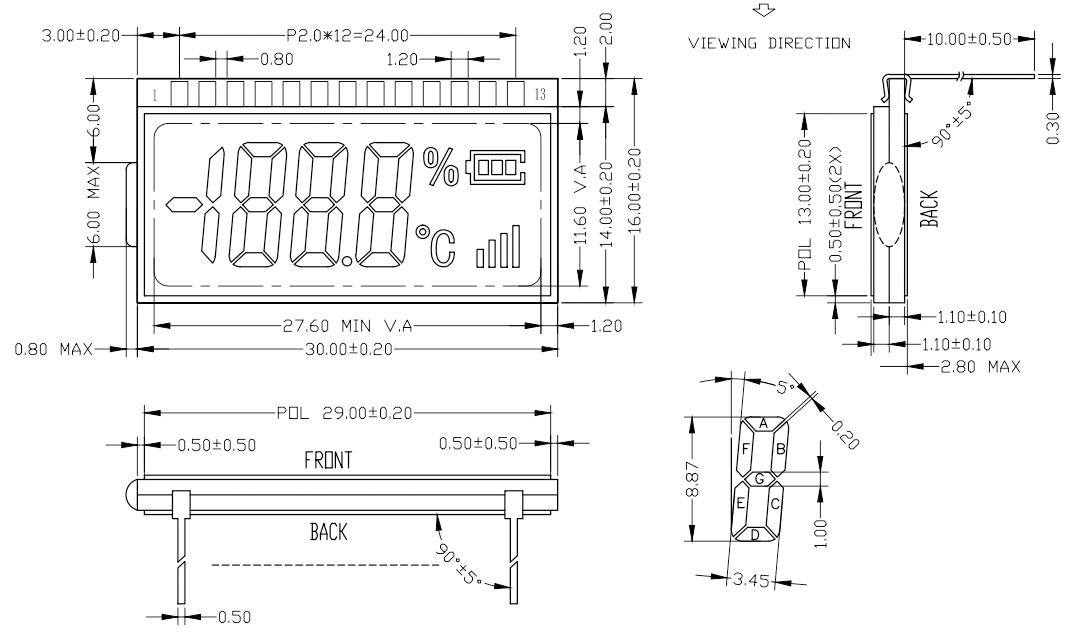

2.Extenal Dimensions

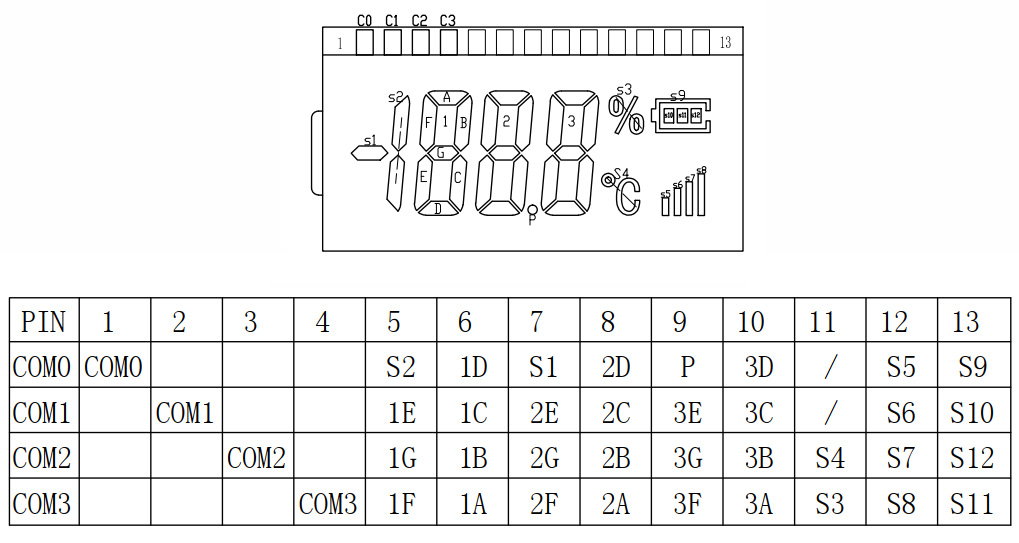

3.Pin Descriptions

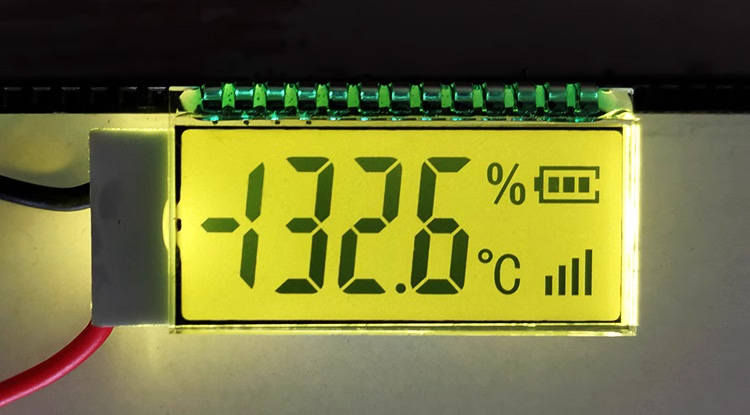

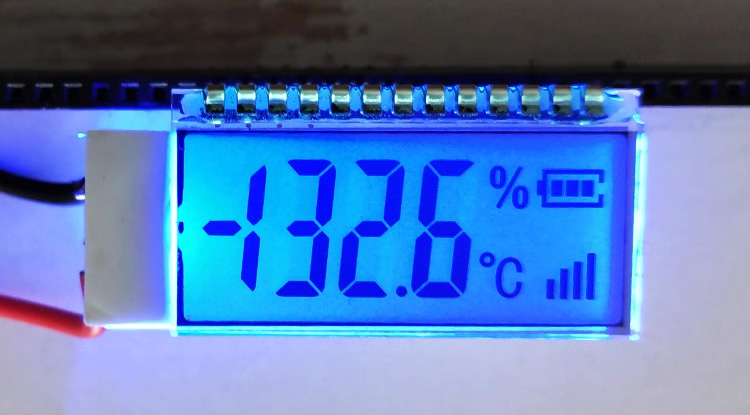

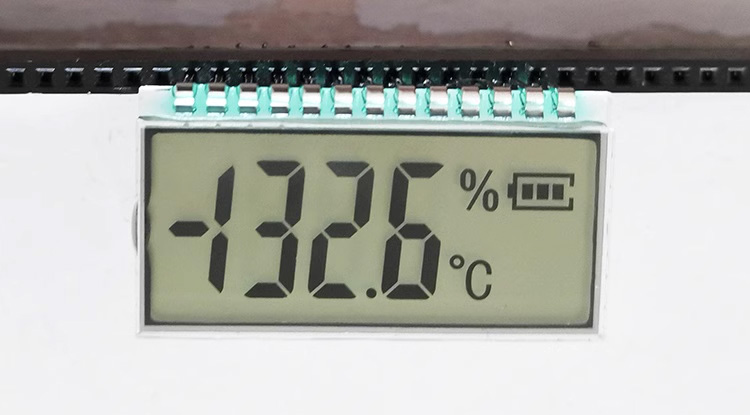

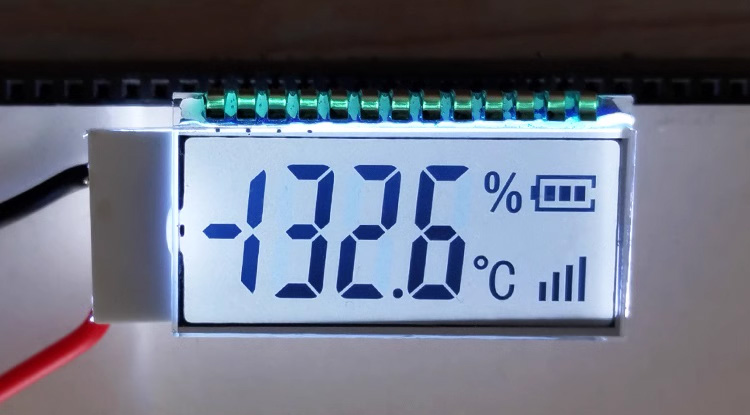

4.Photo Display
5.Packing & Delivery
