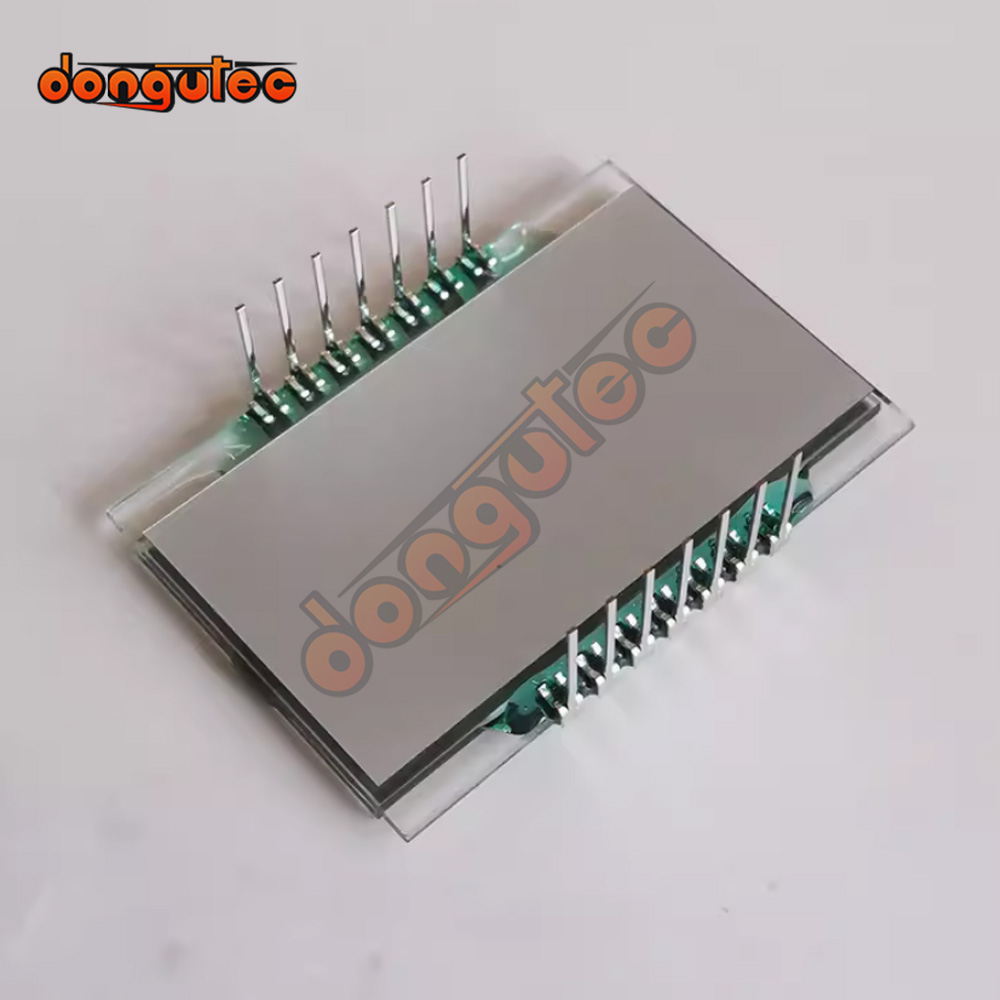

14PIN HTN Positive 4-Digits Segment LCD Panel 3V Ultra-wide Temperature LCD Screen HT1621
14PIN HTN Positive 4-Digits Segment LCD Panel 3V Ultra-wide Temperature LCD Screen HT1621
30 sold
Quantity
Detail
Customer Reviews
1.Specification parameters
Display content: 4-Digits
Outline Dimension: 37.0*25.6*2.8mm
Active Area: 34.0*17.6mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty , 1/3 Bias
Working voltage: 3.0V
PIN NO.: 14P
Operating Temperature: -40 ~ 80 degrees

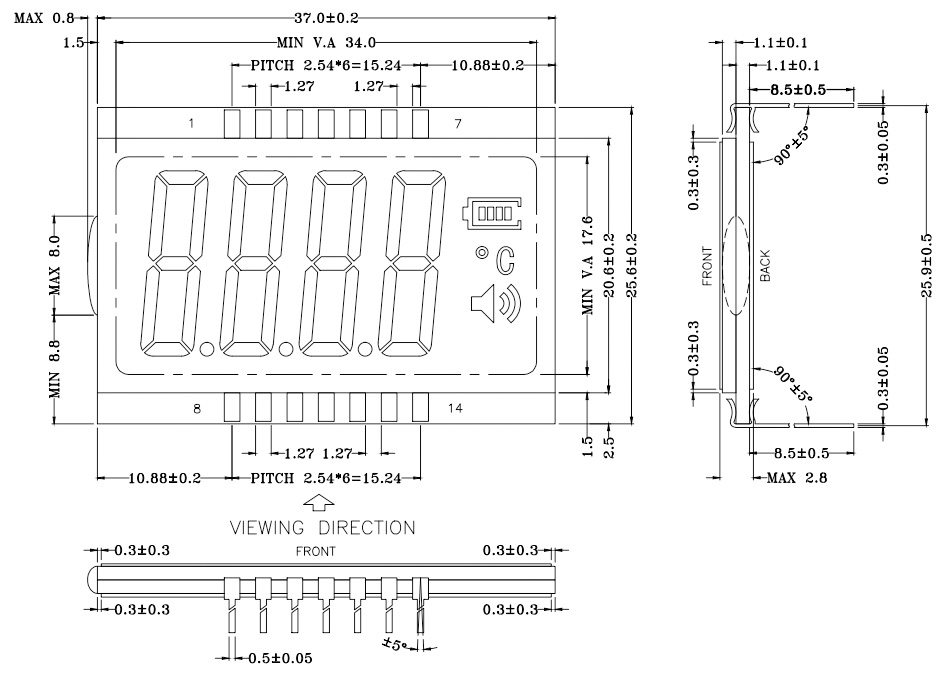

2.Extenal Dimensions

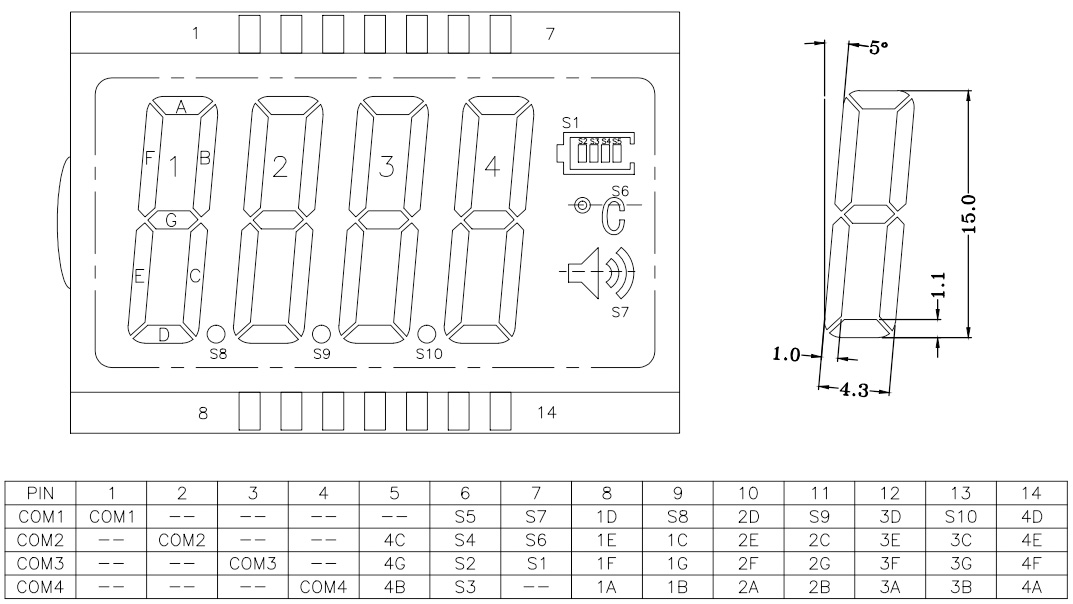

3.Pin Descriptions

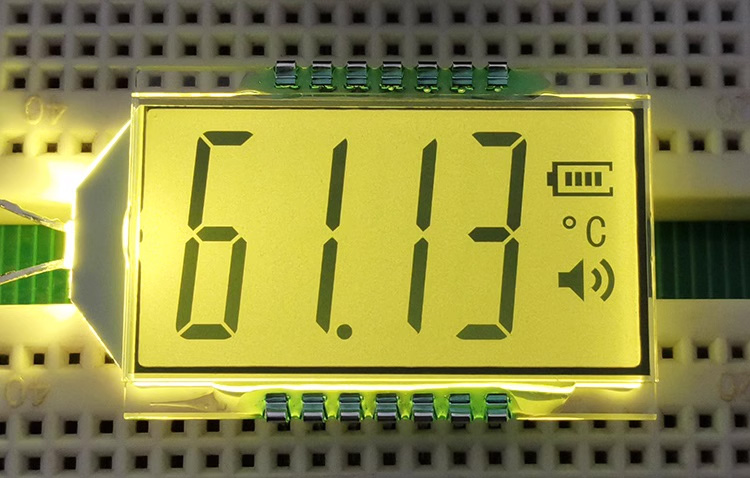

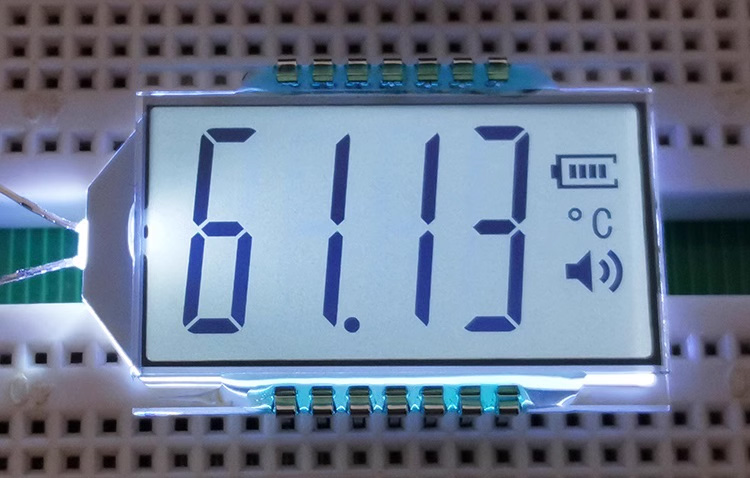

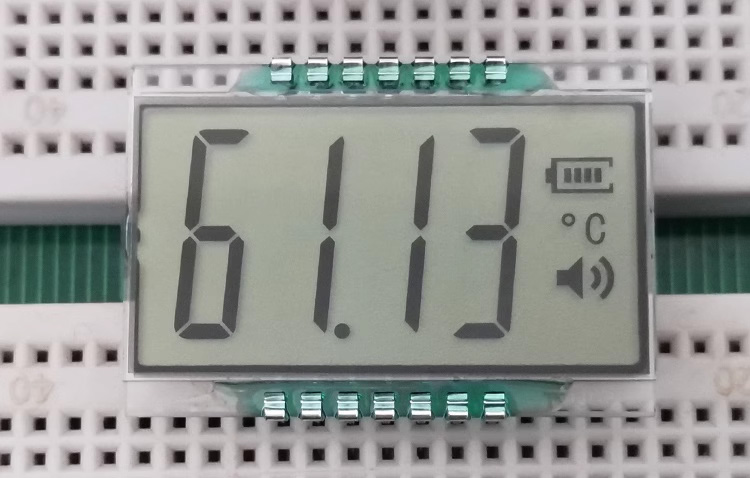

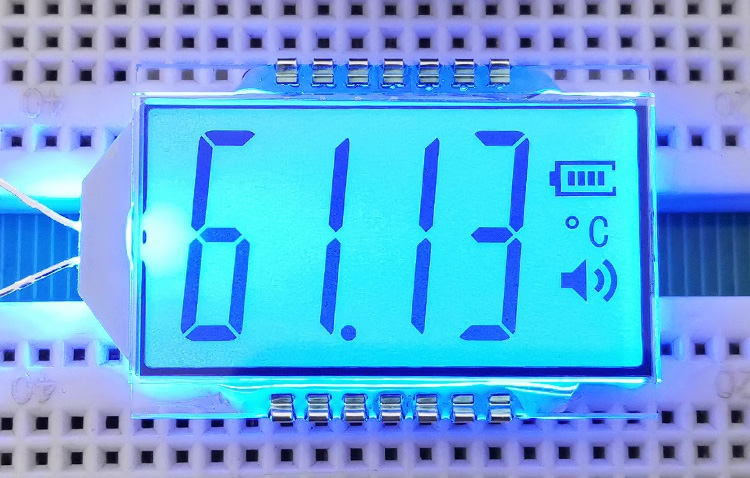

4.Photo Display
5.Packing & Delivery
