16PIN HTN Positive 5-Digits Segment LCD Panel Temperature Humidity Screen 3V Without Backlight HT1621

30 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.Specification parameters

    Display content: 5-Digits
    Outline Dimension: 28.0*14.0*2.8mm
    Active Area: 25.0*7.0mm
    Display mode: HTN , Positive
    Visual angle: 6  O’CLOCK
    Connection: Metal PIN
    Drive mode: 1/4 Duty , 1/3 Bias
    Working voltage: 3V
    PIN NO.: 16P
    Operating Temperature: -40 ~ 80 degrees
    Storage Temperature: -45 ~ 90 degrees

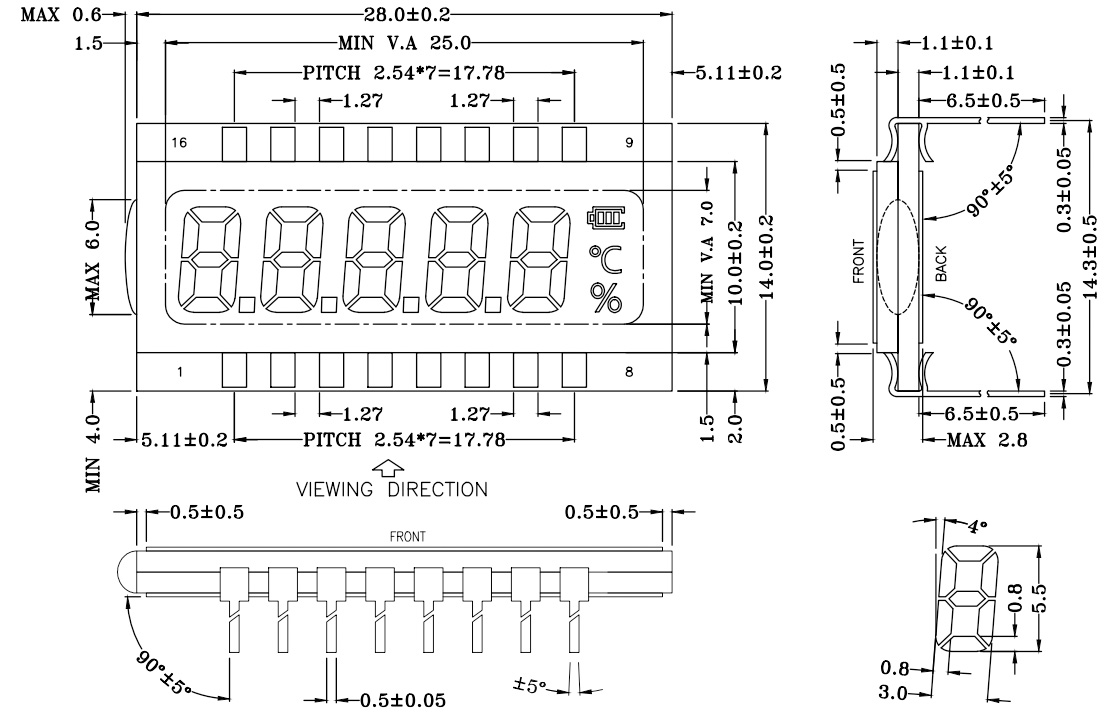

    2.Extenal Dimensions

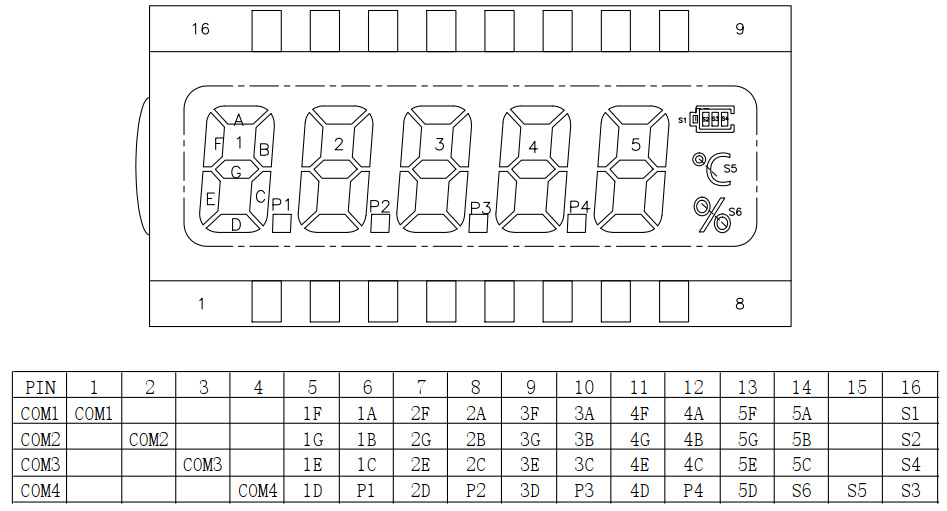

    3.Pin Descriptions

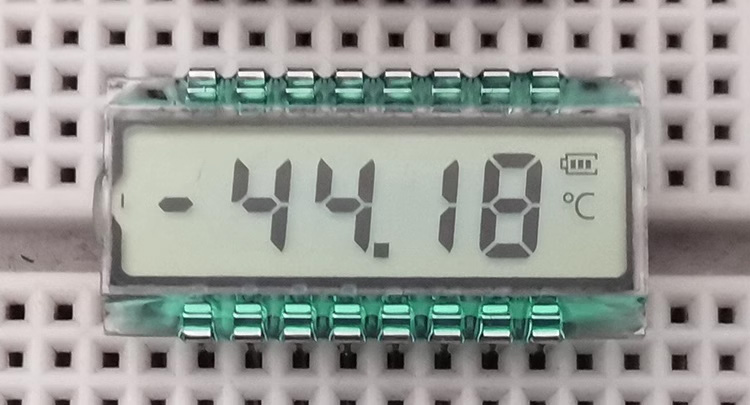

    4.Photo Display



    5.Packing & Delivery
