16PIN TN Positive 6-Digit Segment LCD Panel 3V Ultra-wide Temperature HT1621

1.Specification parameters

Display content: 6-Digits
Outline Dimension: 40.0*14.0*2.8mm
Active Area: 37.6*9.6mm
Display mode: TN , Positive
Visual angle: 6  O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty，1/3 Bias
Working voltage: 3V
PIN NO.: 16P
Operating Temperature: -40 ~ 80 degrees
Storage Temperature: -45 ~ 80 degrees

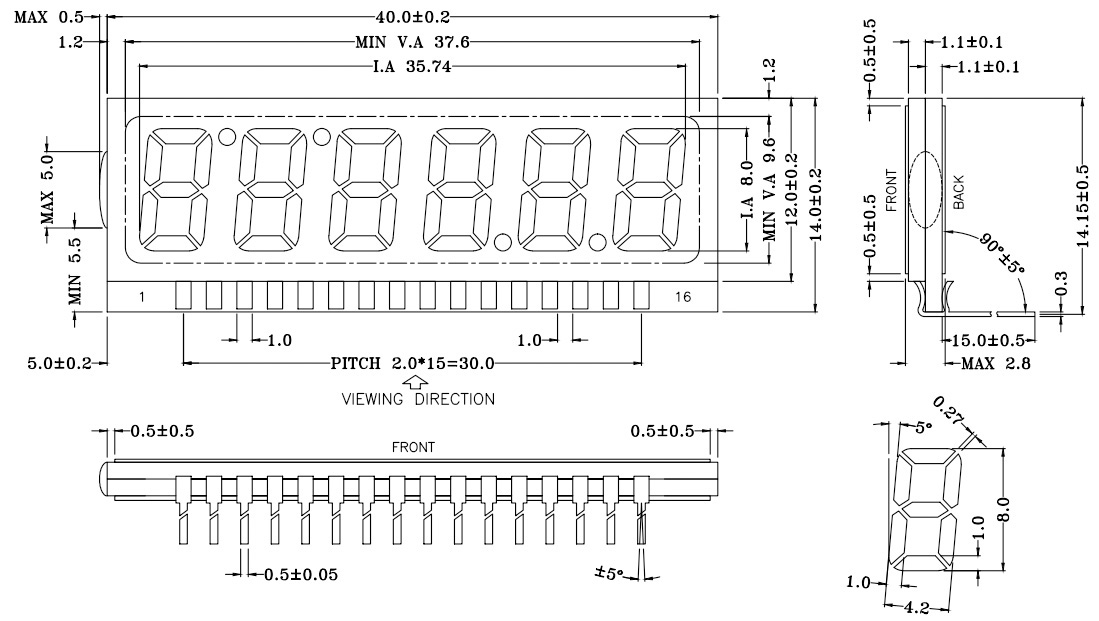

2.Extenal Dimensions

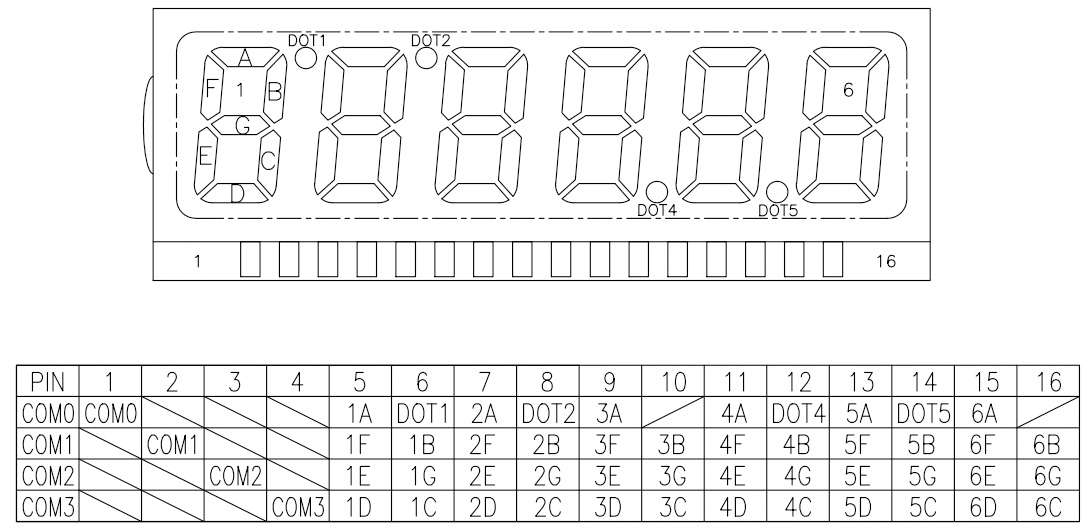

3.Pin Descriptions

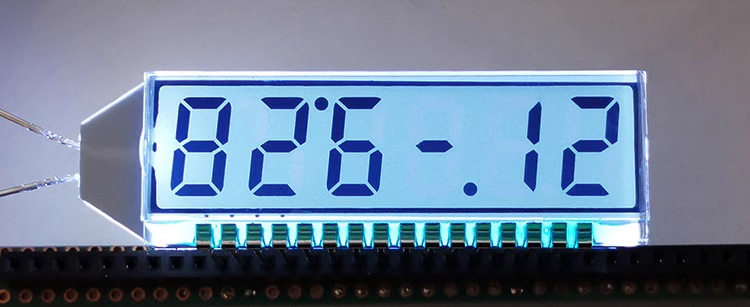

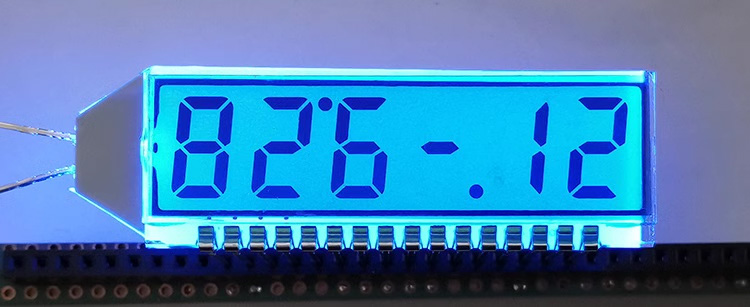

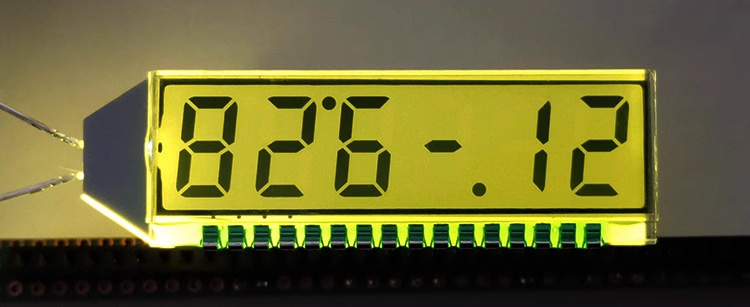

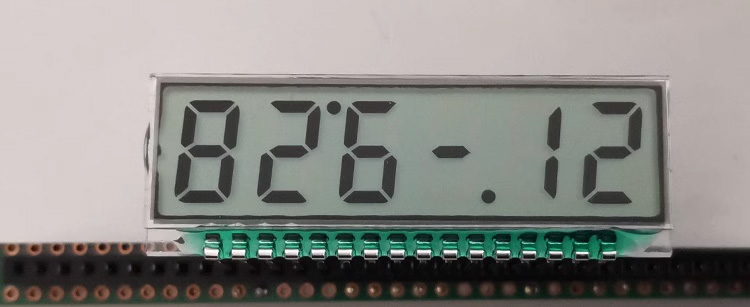

4.Photo Display

5.Packing & Delivery
