16PIN TN Positive 6-Digits Segment LCD Panel 3.3V Without Backlight Digital Tube Display HT1621
16PIN TN Positive 6-Digits Segment LCD Panel 3.3V Without Backlight Digital Tube Display HT1621
Quantity
Detail
Customer Reviews
1.Specification parameters

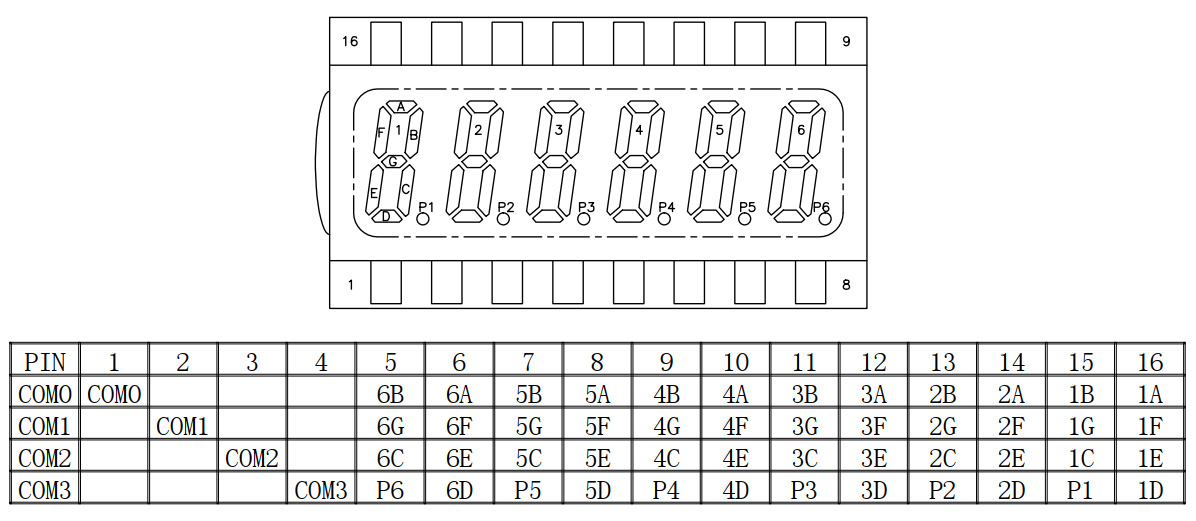

3.Pin Descriptions
Display content: 6-Digits

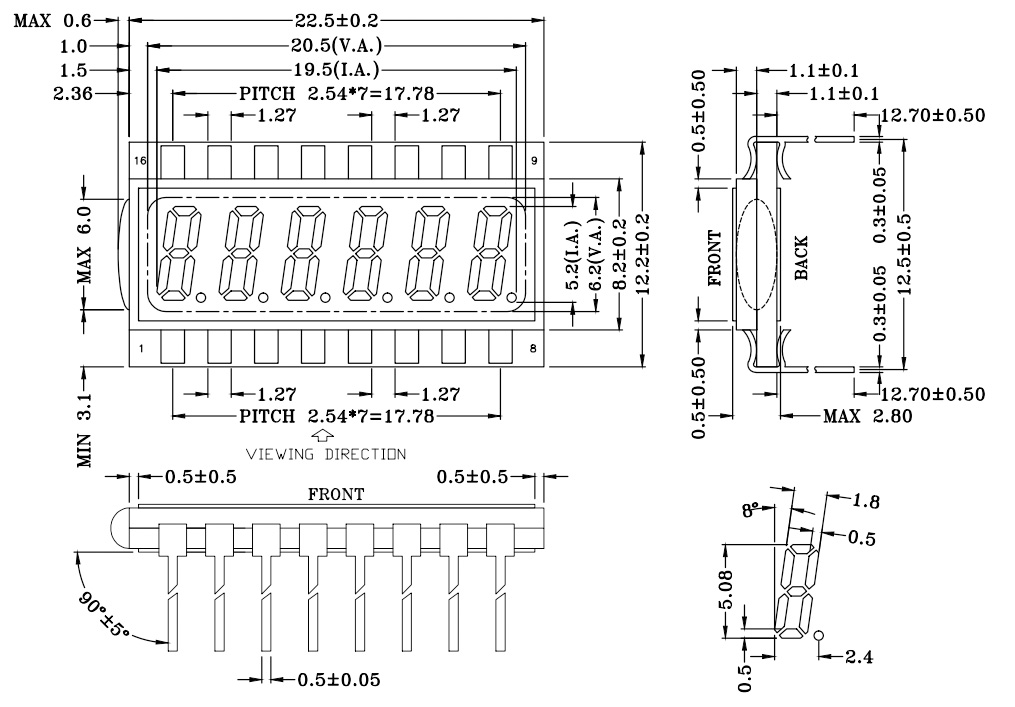

Outline Dimension: 22.5*12.2*2.8mm
Active Area: 20.5*6.2mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty , 1/3 Bias
Working voltage: 3.3V
PIN NO.: 16P
Operating Temperature: -30 ~ 70 degrees
Storage Temperature: -40 ~ 85 degrees
3.Pin Descriptions

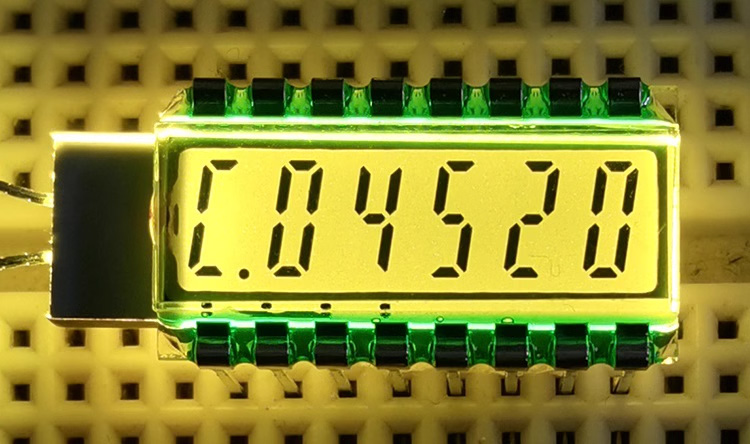

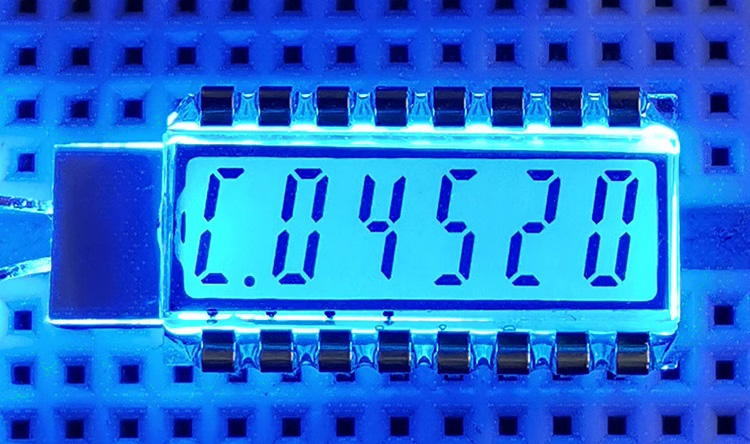

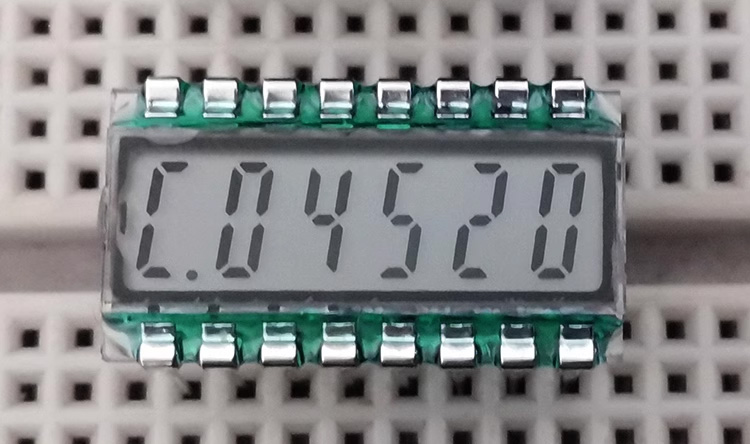

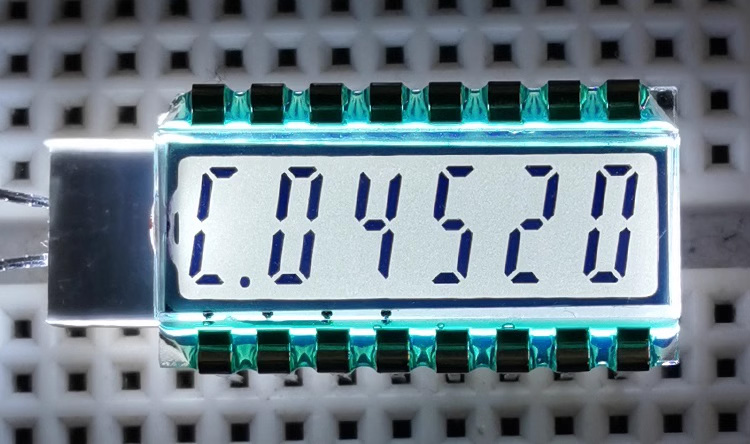

4.Photo Display
5.Packing & Delivery
