17PIN TN Positive 1/2-Digits Segment LCD Panel 5V HT1621
22 sold
Quantity
-
Detail1.Specification parameters
Display content: 1/2-Digits
Outline Dimension: 30.0*26.17*2.8mm
Active Area: 26.0*17.17mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: 1/1 Duty , 1/1 Bias
Working voltage: 5.0V
PIN NO.: 17P
Operating Temperature: -20 ~ 70 degrees
Storage Temperature: -30 ~ 80 degrees

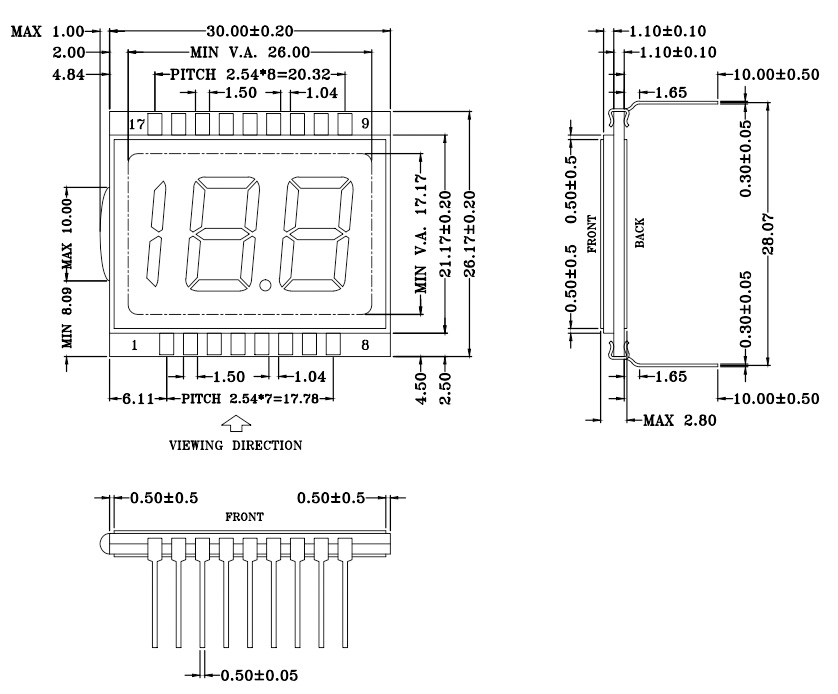

2.Extenal Dimensions

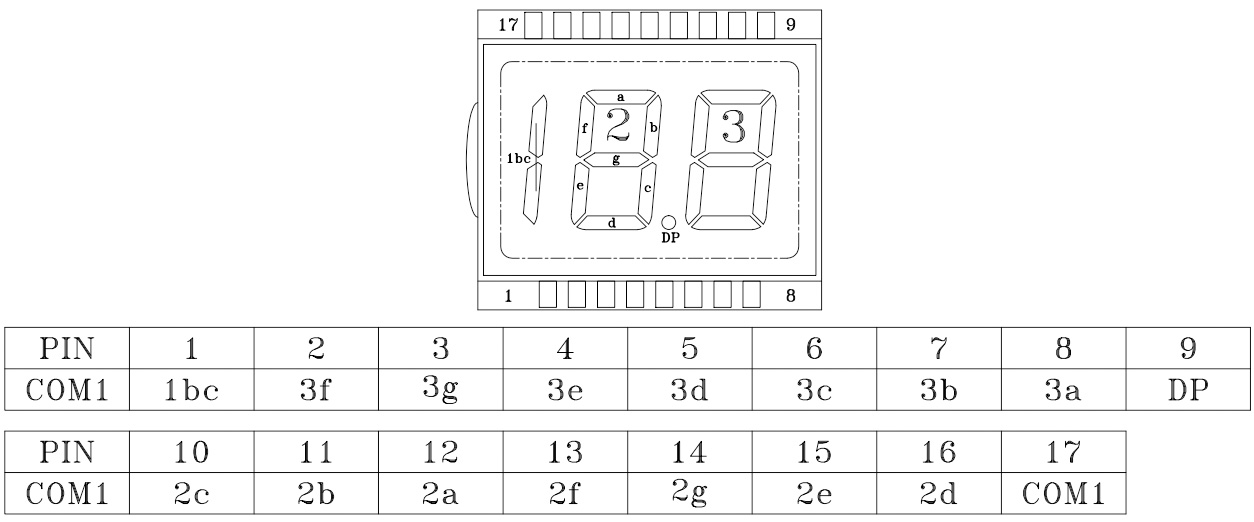

3.Pin Descriptions

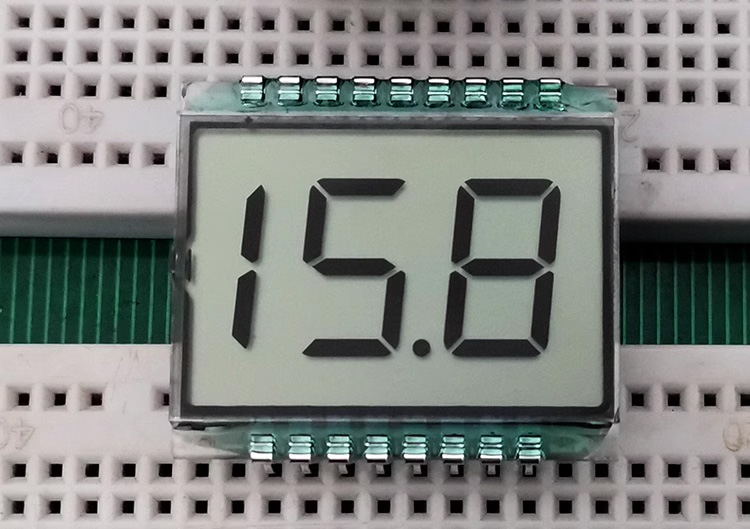

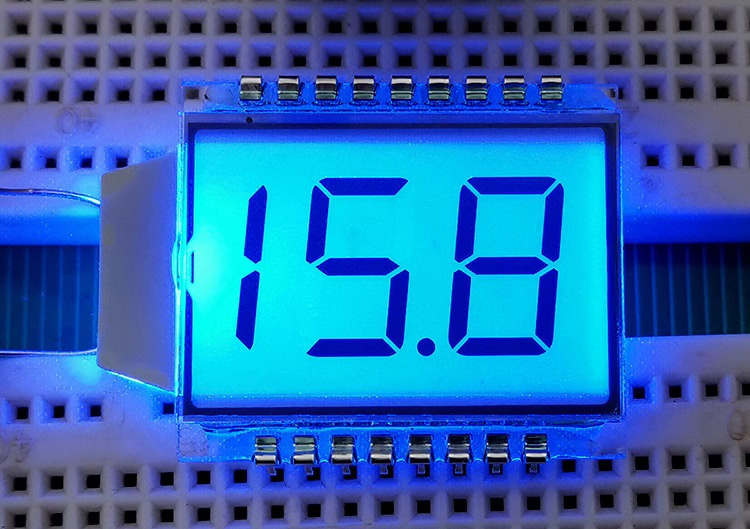

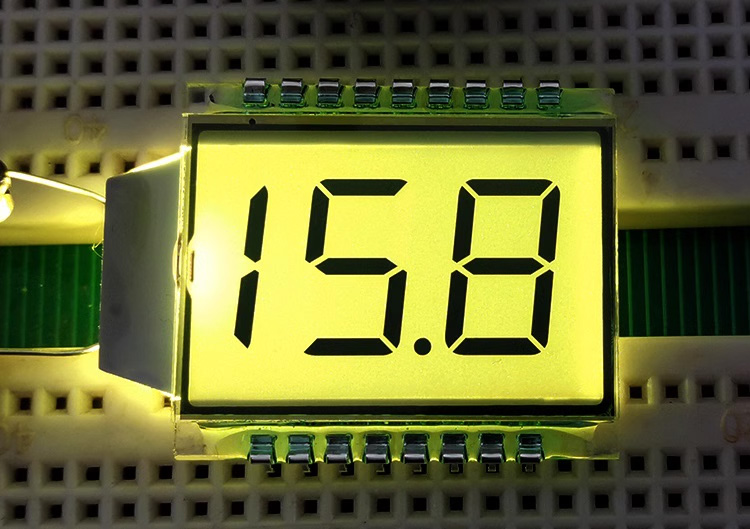

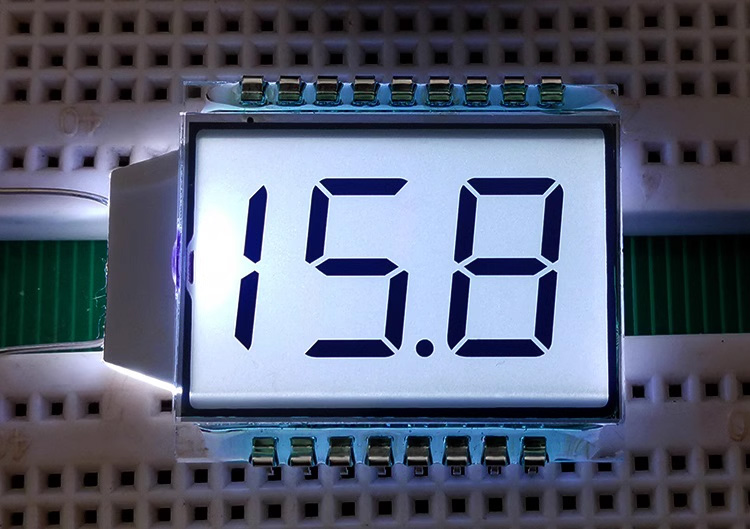

4.Photo Display
5.Packing & Delivery
-
