22PIN TN Positive 8-Digits Segment LCD Panel Dynamic Drive 3.3V
70 sold
Quantity
Detail
Customer Reviews
1.Specification parameters
Display content: 8-Digits
Outline Dimension: 64.0*22.0*2.8mm
Active Area: 60.5*13.5mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK / 12 O’CLOCK
Connection: Metal PIN
Drive mode: 1/4Duty, 1/3Bias
Working voltage: 3.3V
PIN NO.: 22P
Operating Temperature: -20 ~ 70 degrees
Storage Temperature: -30 ~ 80 degrees
2.Extenal Dimensions
3.Pin Descriptions

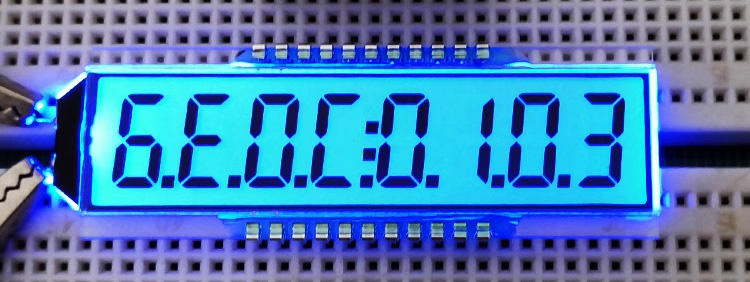

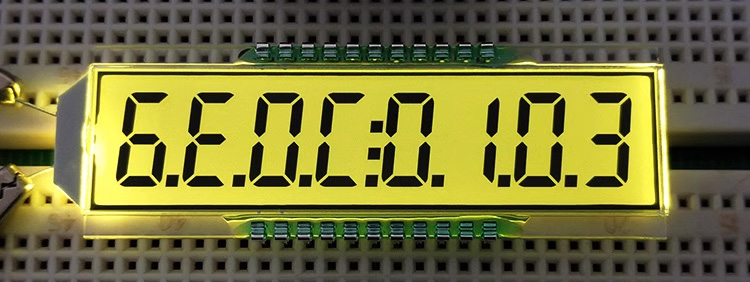

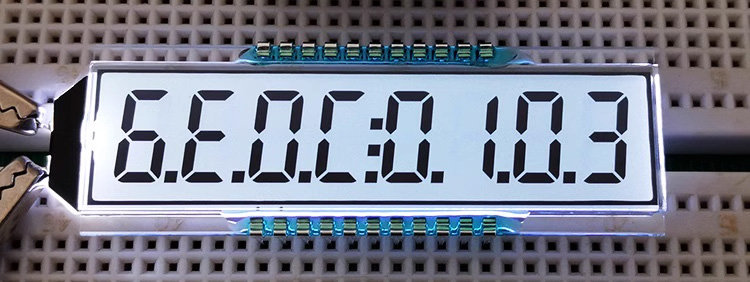

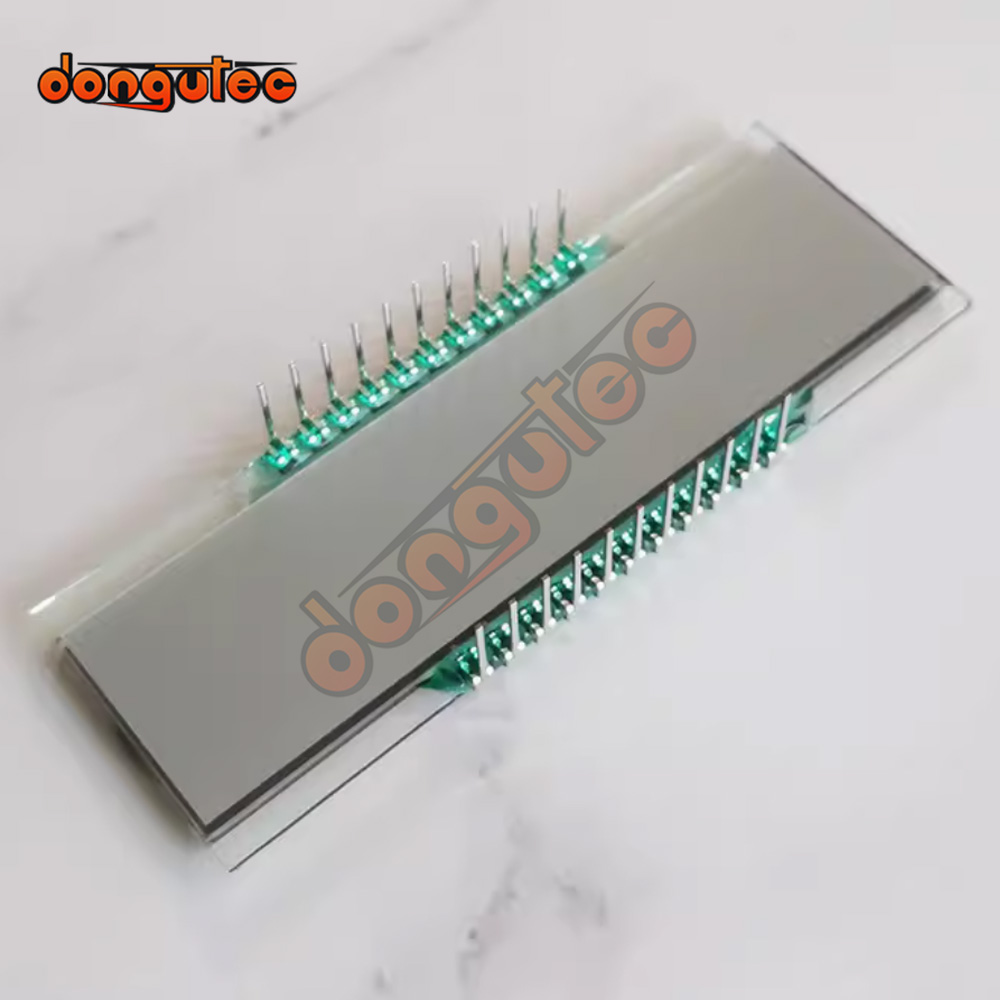

4.Photo Display
5.Packing & Delivery
