24PIN TN Positive 3-Digits Segment LCD Panel Screen Ultra-Wide Temperature HT1621
24PIN TN Positive 3-Digits Segment LCD Panel Screen Ultra-Wide Temperature HT1621
30 sold
Quantity
Detail
Customer Reviews
1.Specification parameters
Display content: 3-digits
Outline Dimension: 30.7*16.2*2.8mm
Active Area: 27.9*10.0mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: Static
Working voltage: 3V
PIN NO.: 24P
Operating Temperature: -40 ~ 80 degrees
Storage Temperature: -45 ~ 90 degrees

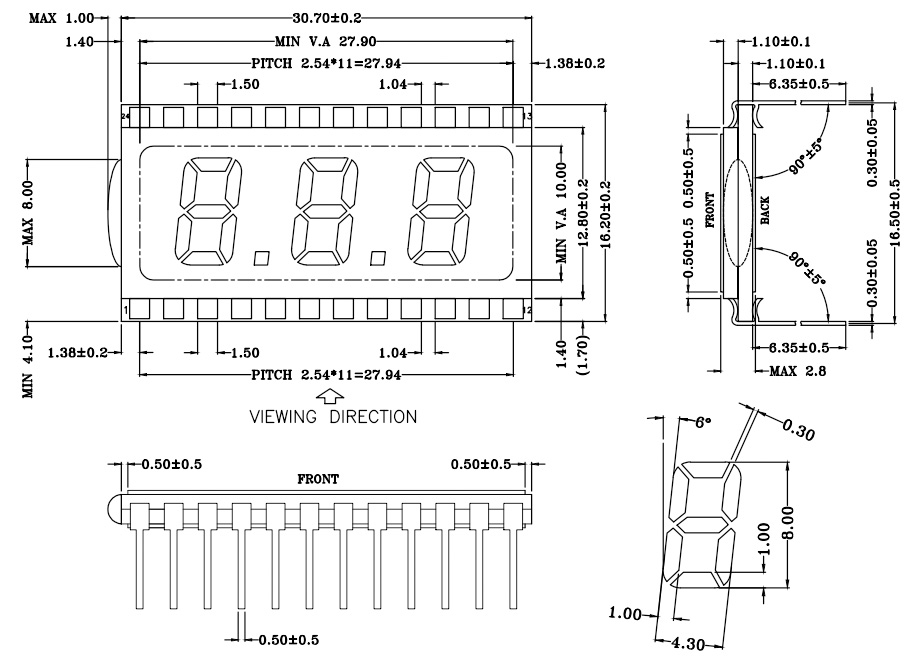

2.Extenal Dimensions

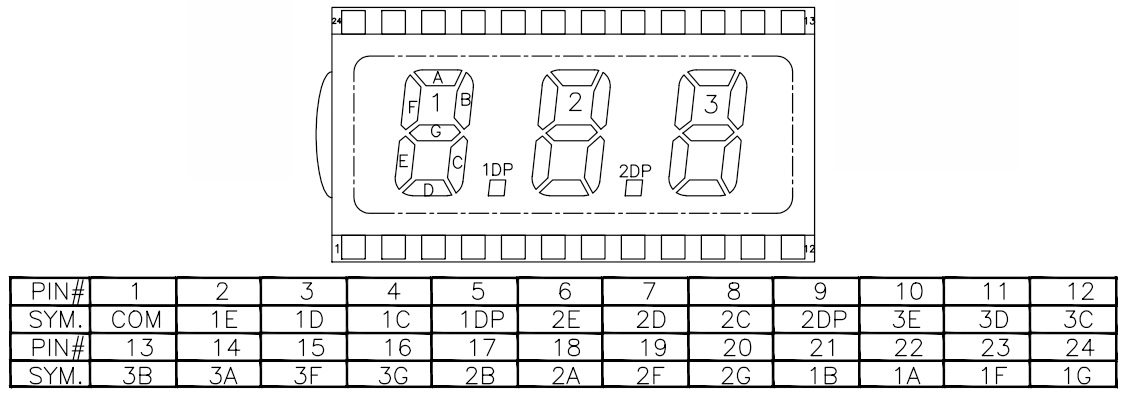

3.Pin Descriptions

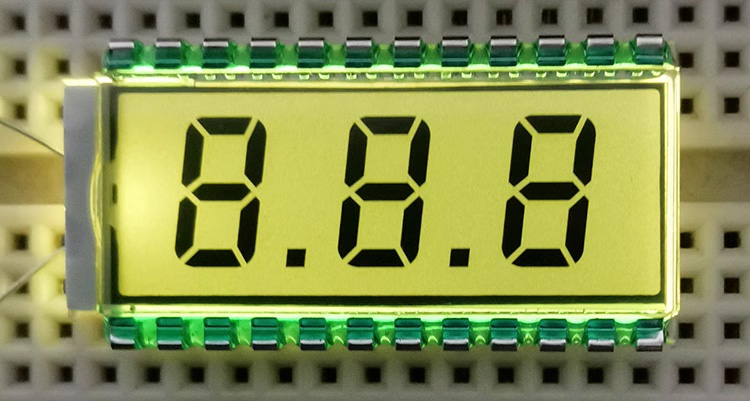

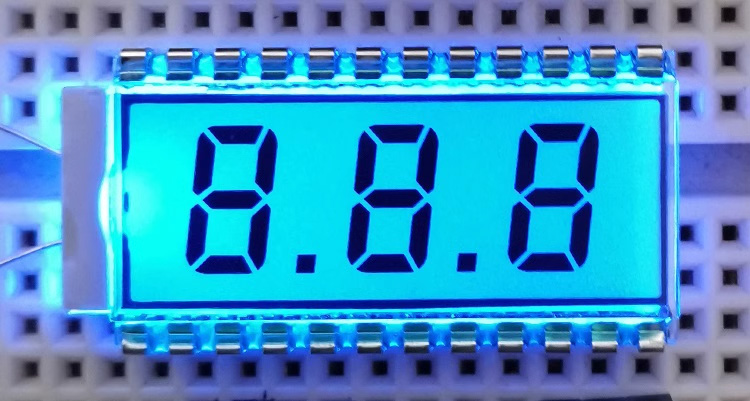

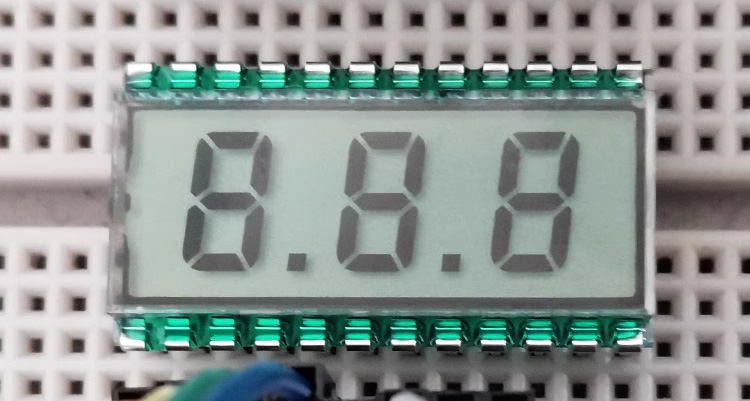

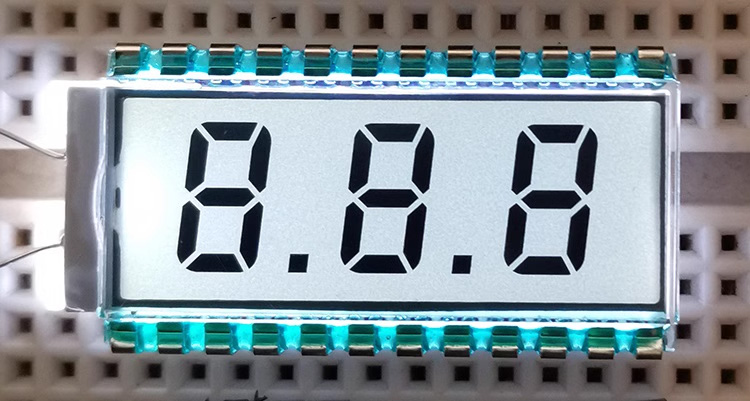

4.Photo Display
5.Packing & Delivery
