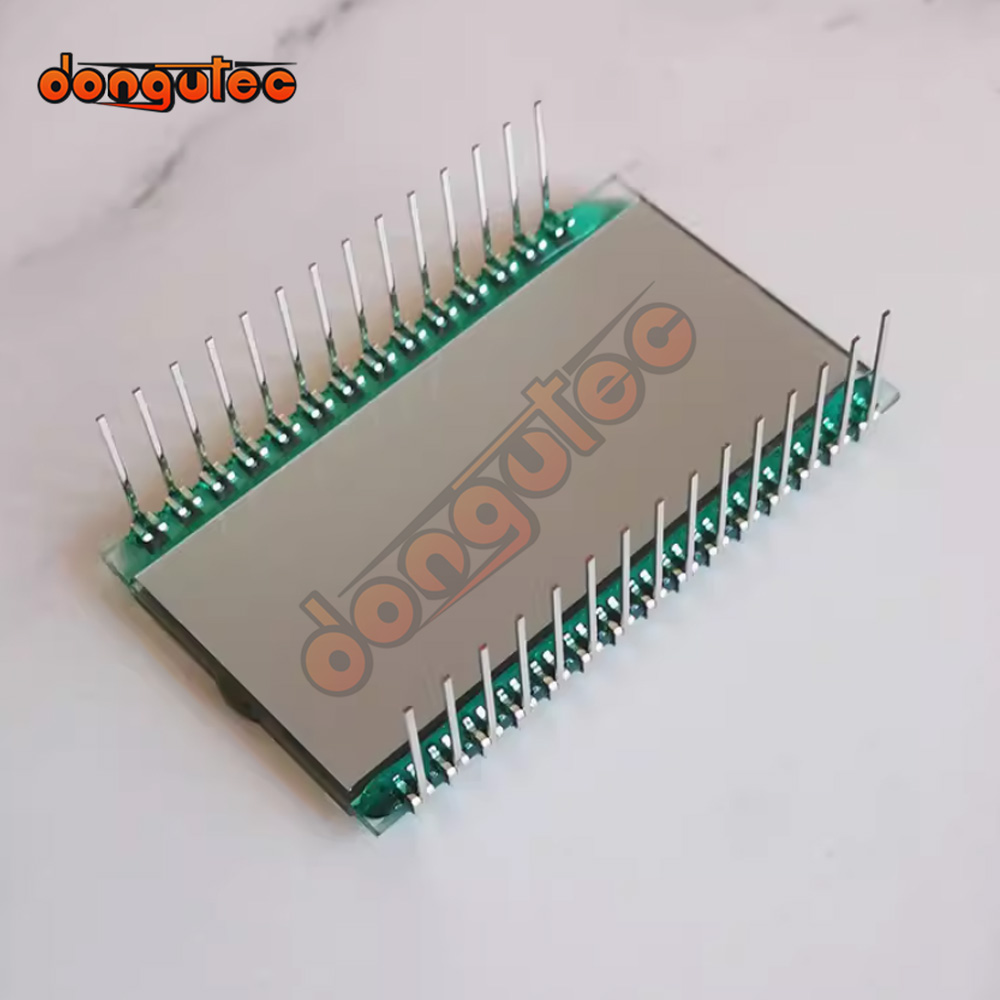

29PIN HTN Positive 6-Digits Segment LCD Panel Industrial Ultra-wide Temperature Screen Dynamic Drive Backlight 3.0V HT1621

60 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.Specification parameters

    Display content: 6-digits
    Outline Dimension: 42.0*25.0*2.8mm
    Active Area: 39.0*17.0mm
    Display mode: HTN , Positive
    Visual angle: 6  O’CLOCK
    Connection: Metal PIN
    Drive mode: 1/4 Duty , 1/3 Bias
    Working voltage: 3.0V
    PIN NO.: 29P
    Operating Temperature: -40 ~ 80 degrees
    Storage Temperature: -45 ~ 85 degrees

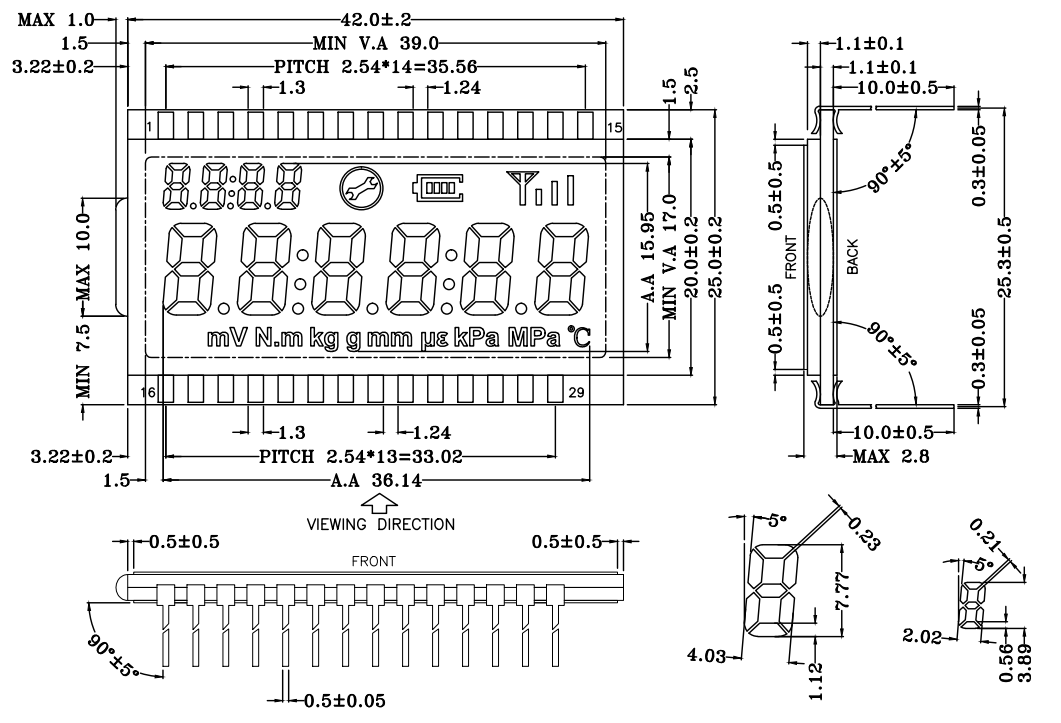

    2.Extenal Dimensions

     Pasted Image

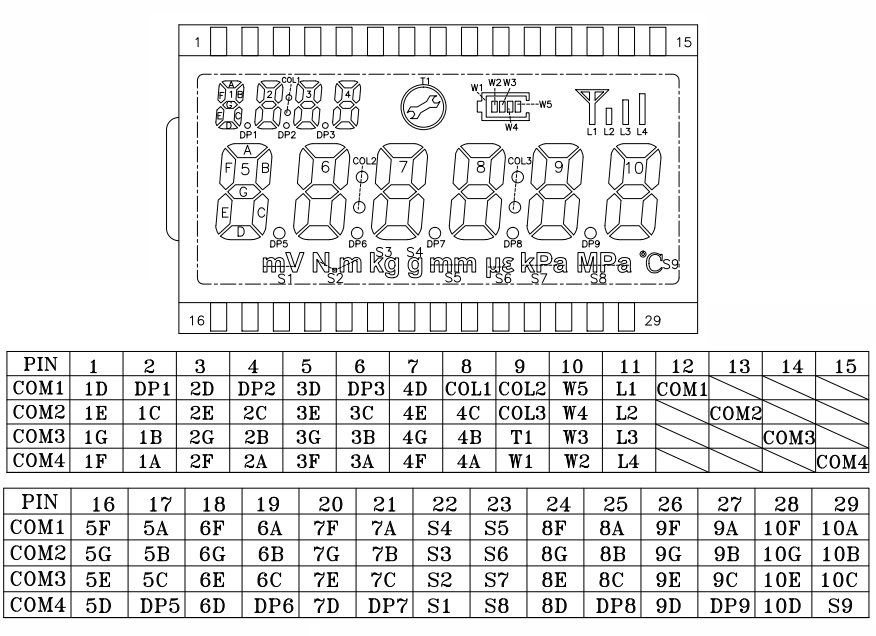

    3.Pin Descriptions

    Pasted Image

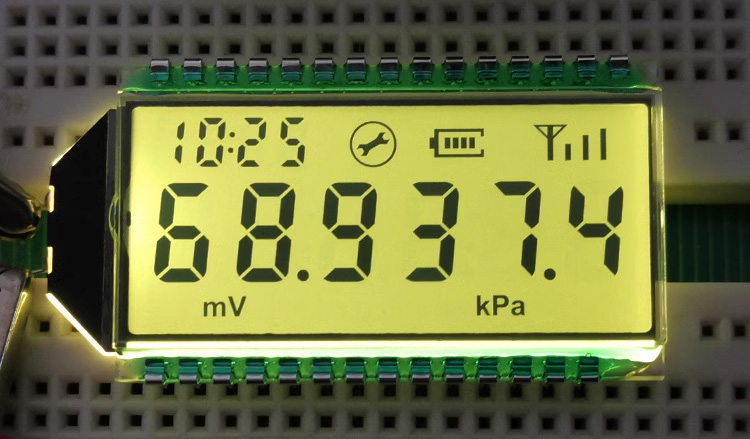

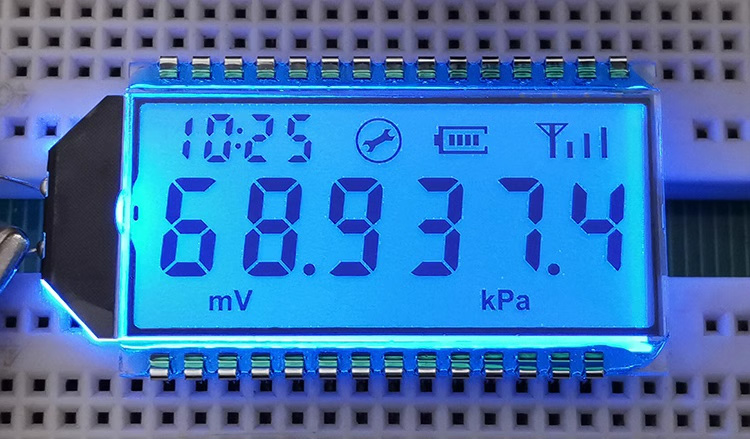

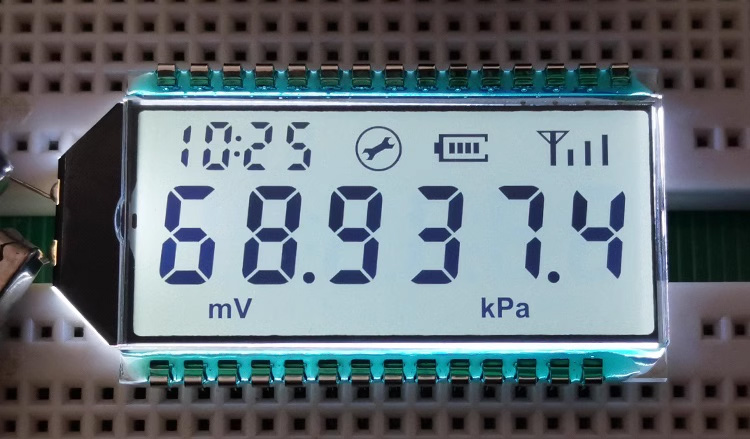

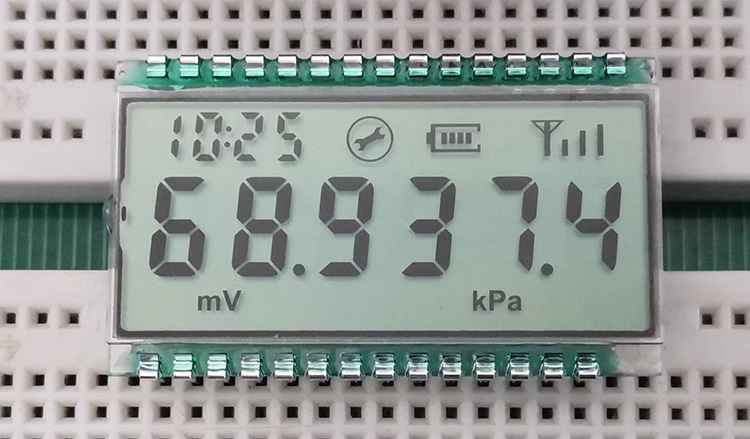

    4.Photo Display






    5.Packing & Delivery
