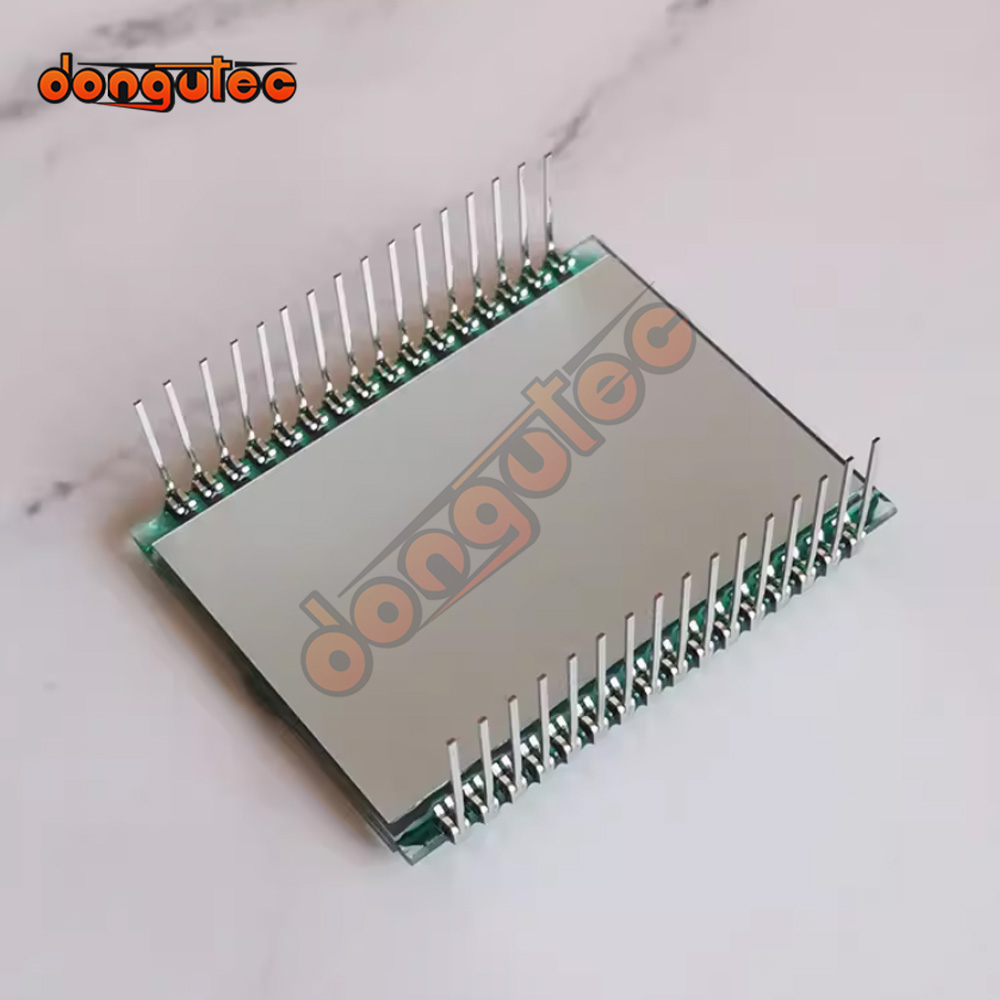

32PIN HTN Positive 5-Digits Segment LCD Welding Panel 3V HT1622

30 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews

1.Specification parameters

Display content: 5-digits
Outline  Dimension: 37.0*29.0*2.8mm
Active Area: 34.6*22.6mm
Display mode: HTN , Positive
Visual angle: 12  O’CLOCK
Connection: Metal PIN
Drive mode: 1/8 Duty , 1/4 Bias
Working voltage: 3V
PIN NO.: 32P
Operating Temperature: -40 ~ 70 degrees
Recommended drive: HT1622

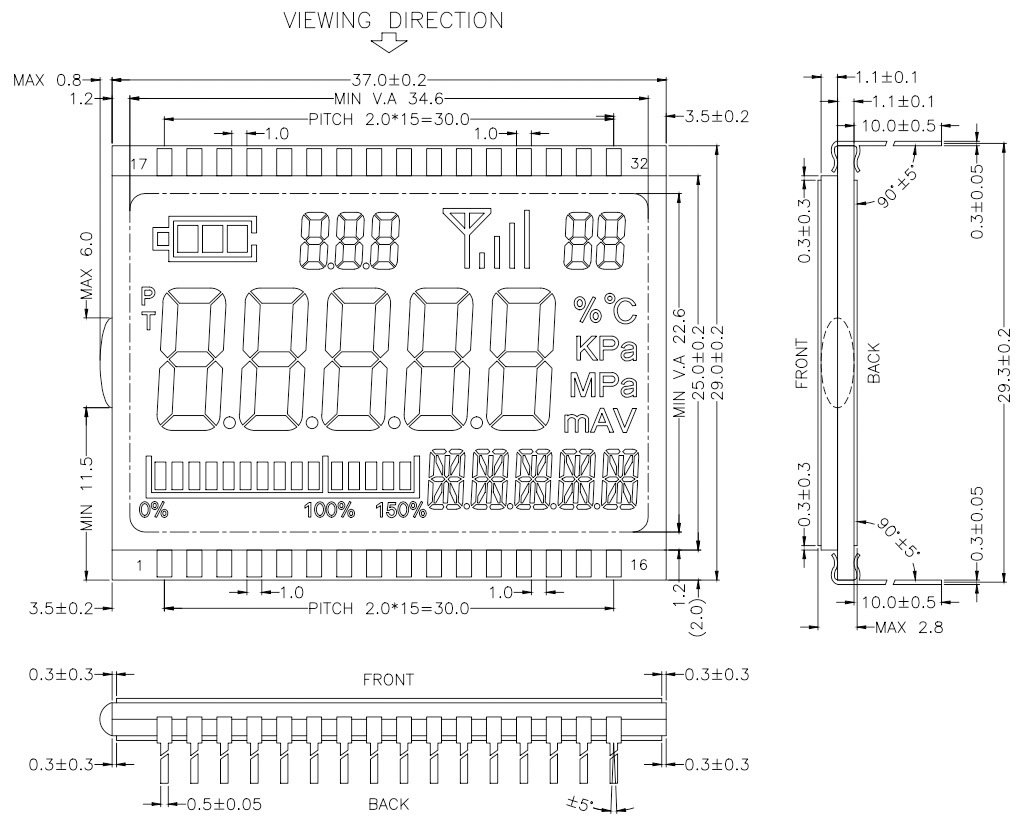

2.Extenal Dimensions

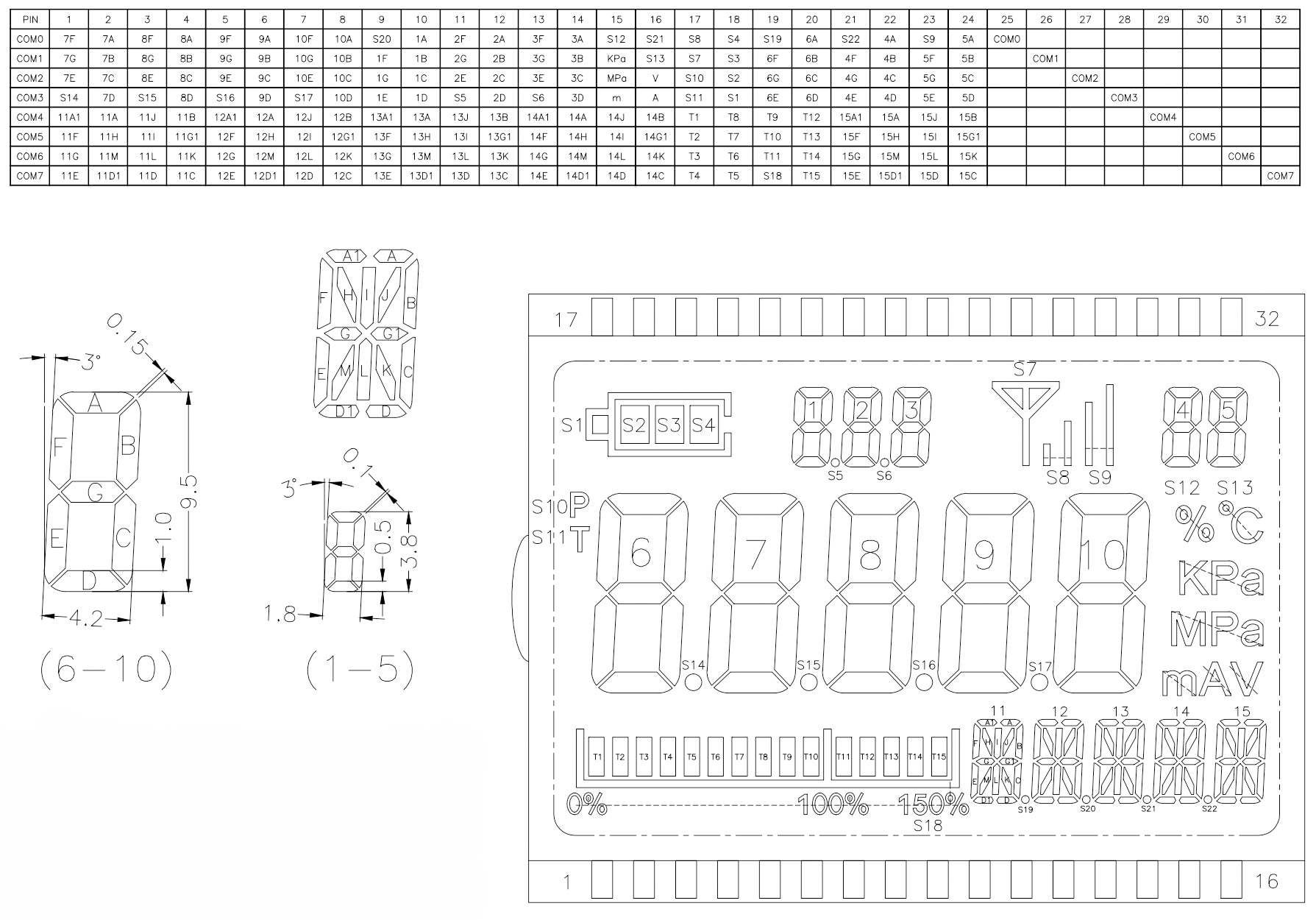

3.Pin Descriptions

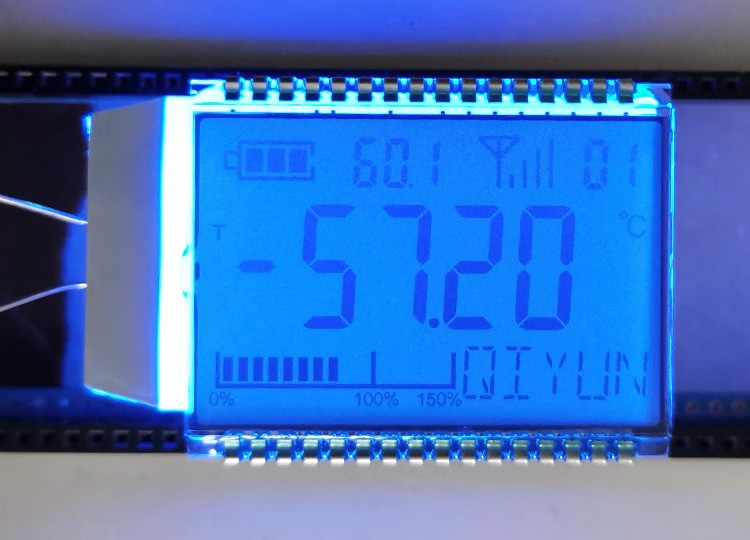

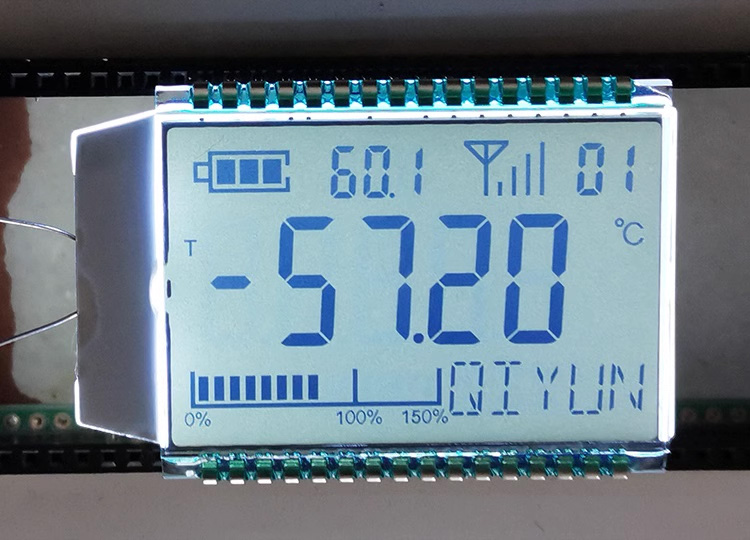

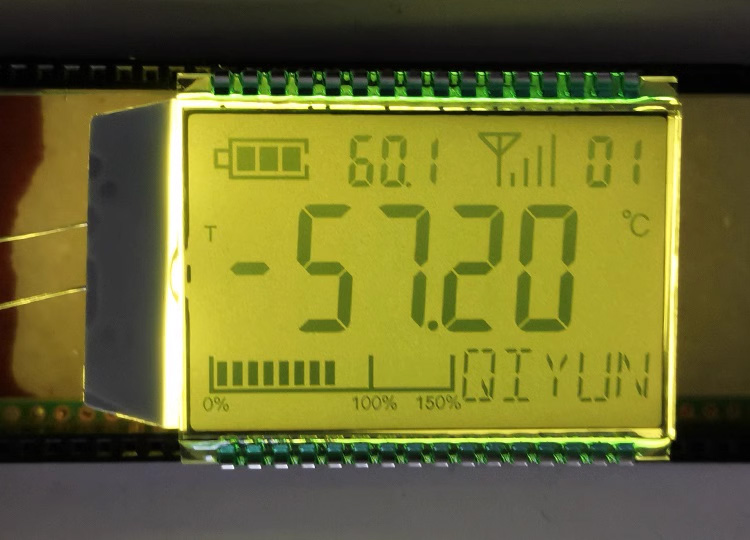

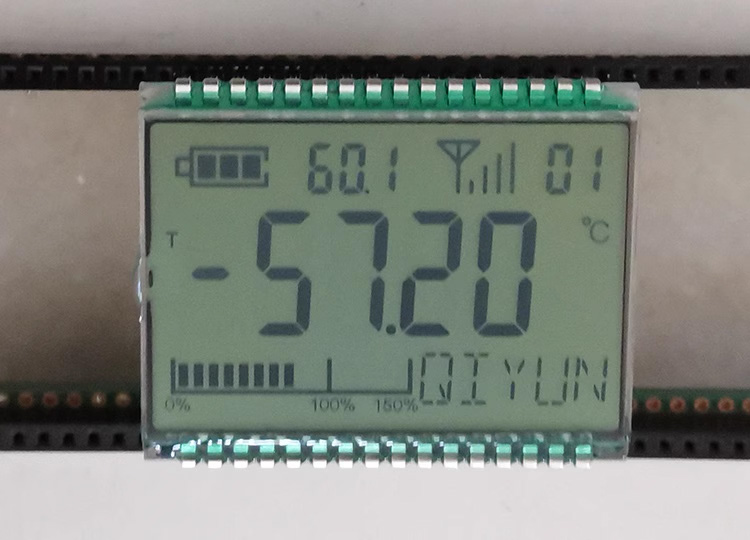

4.Photo Display






5.Packing & Delivery
