40PIN HTN Positive 4-1/2 Digits Segment LCD Panel Digital Display LCD Screen with Electric Quantity 3.3V No Backlight

30 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.Specification parameters

    Display content: 4-1/2-Digits
    Outline Dimension: 52.5*30.8*2.8mm
    Active Area: 49.5*20.8mm
    Display mode: HTN , Positive
    Visual angle: 6  O’CLOCK
    Connection: Metal PIN
    Drive mode: 1/1 Duty , 1/1 Bias
    Working voltage: 3.3V
    PIN NO.: 40P
    Operating Temperature: -20 ~ 70 degrees
    Storage Temperature: -30 ~ 80 degrees

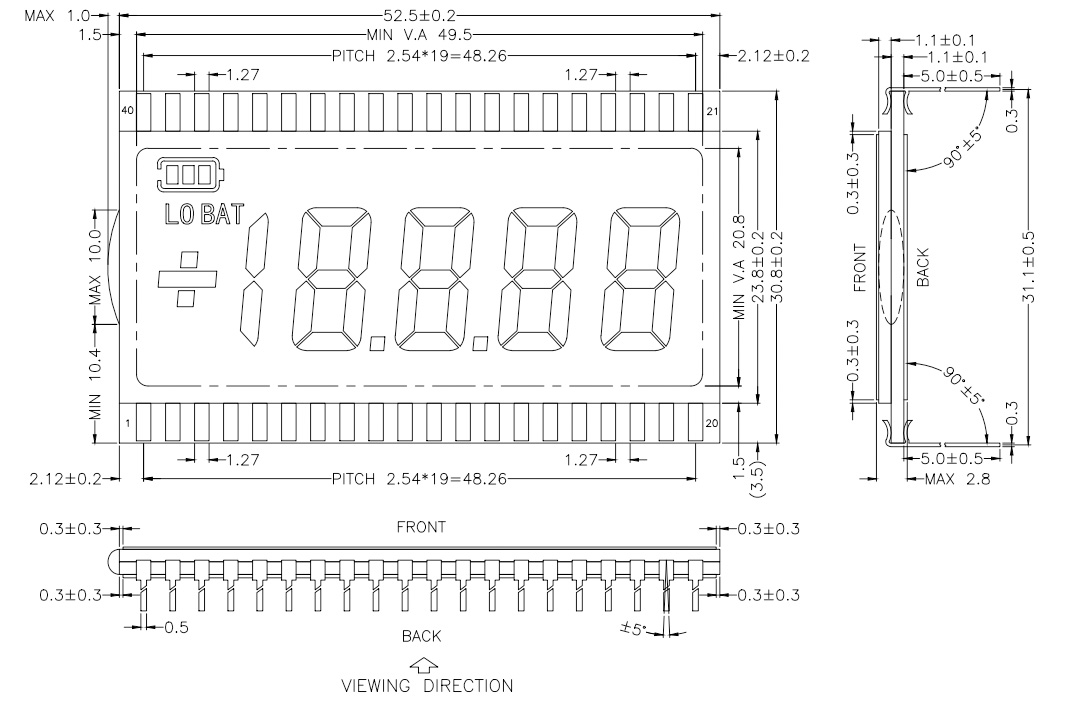

    2.Extenal Dimensions

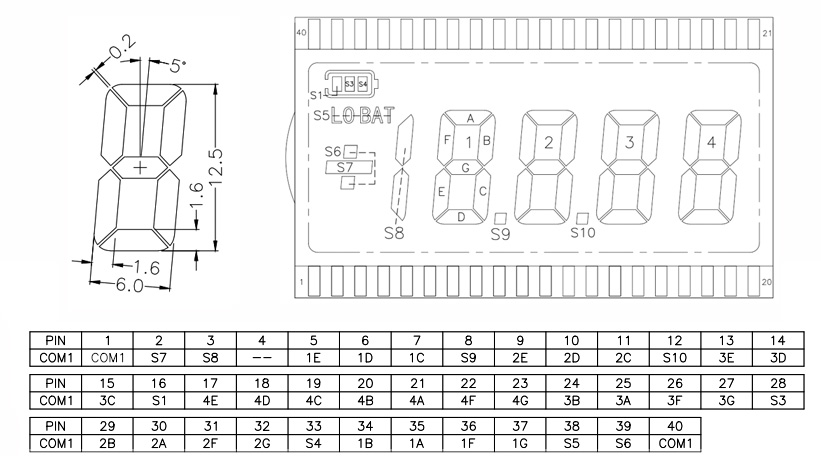

    3.Pin Descriptions

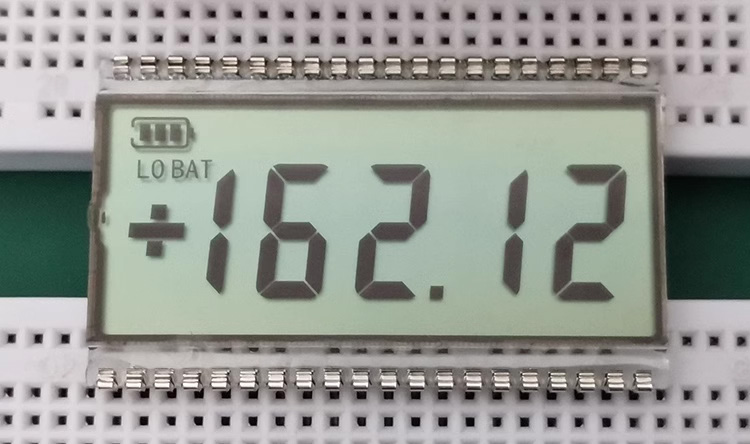

    4.Photo Display



    5.Packing & Delivery
