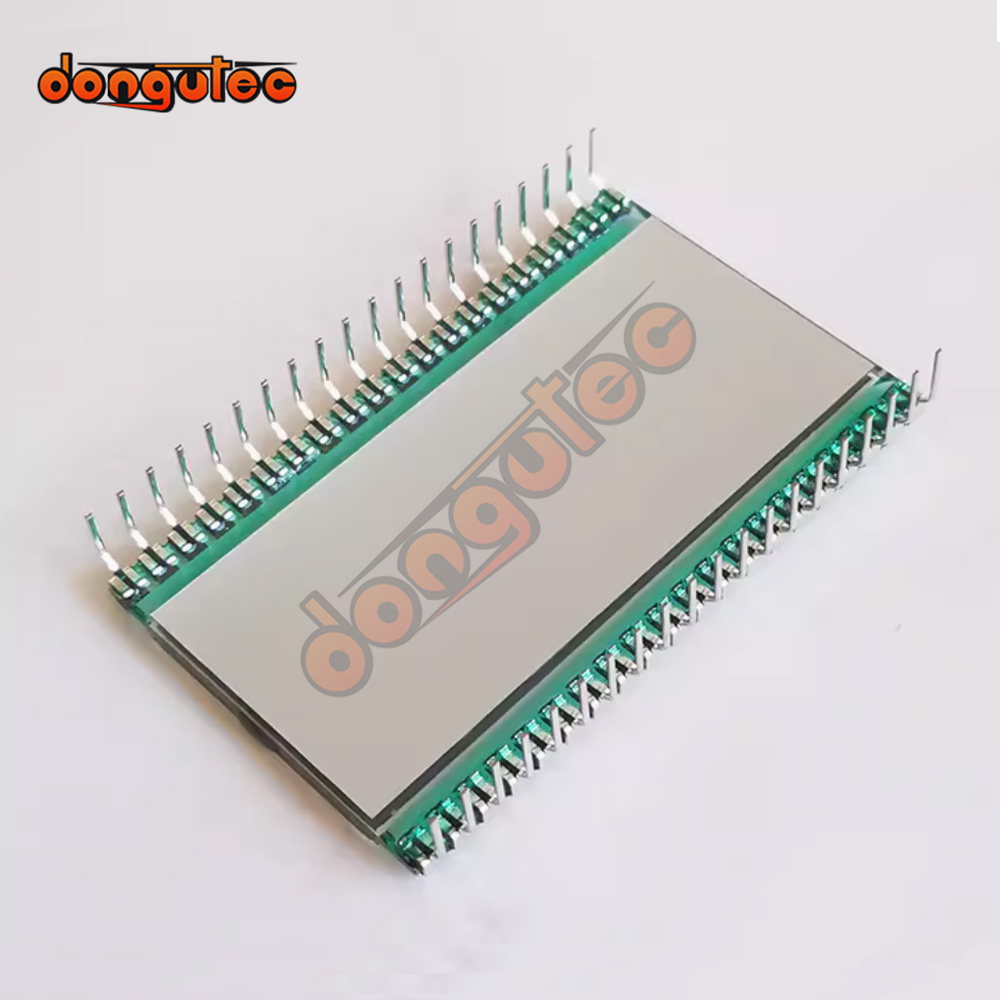

40PIN TN Positive 3-1/2 Digits Segment LCD Panel Yellow Green/White/Blue/Without Backlight 5V

Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
1.Specification parameters

Display Content: 3-1/2 Digits

Outline Dimension: 50.8*30.48*2.8mm

Active Area: 45.72*16.51mm

Viewing Direction: 6:00  O'clock

Backlight: White, Yellow Green, Blue,Without  Backlight

Working voltage: 5V

Operating Temperature: -20 ℃ ~ 70 ℃

Storage Temperature: -30 ℃ ~ 80 ℃

Driving Mode: Static

Display Mode: TN, Positive

Connection: metal pin

PIN NO.: 40P

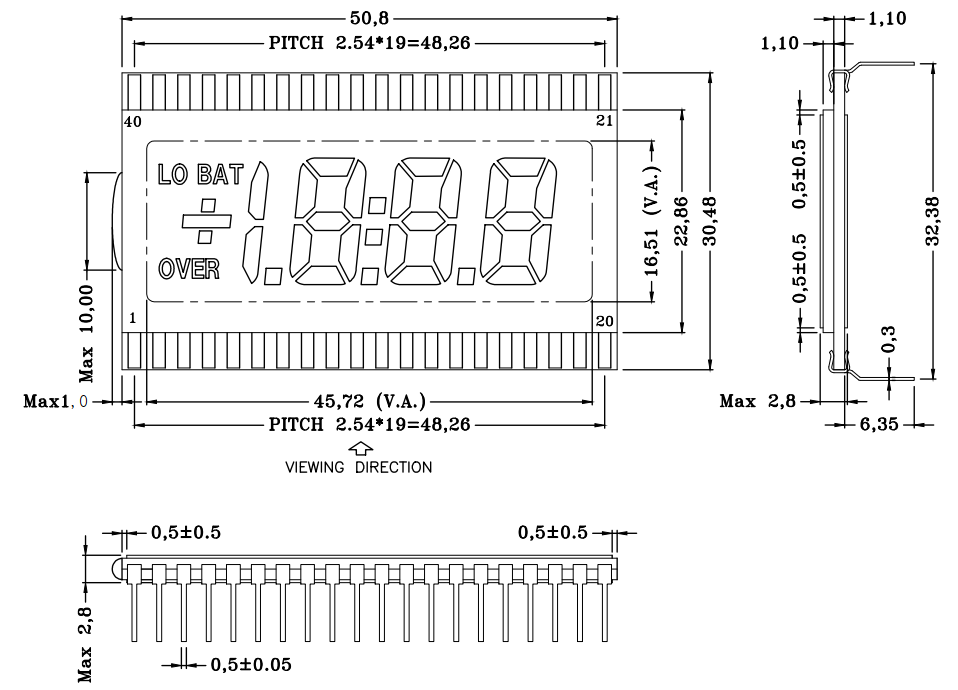

2.Extenal Dimensions
Pasted Image

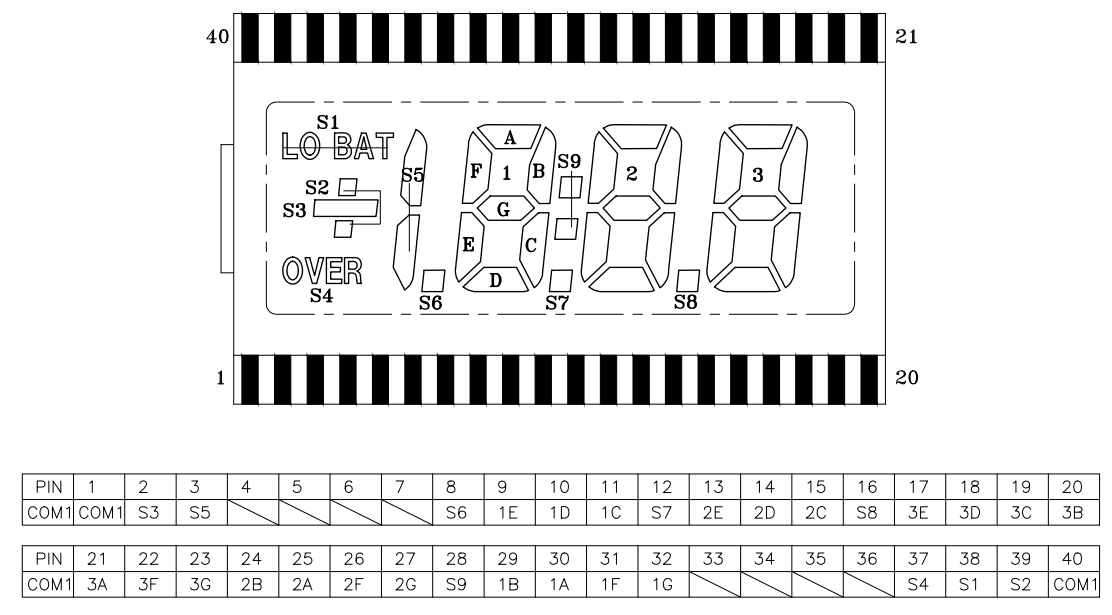

3.Pin Descriptions

Pasted Image

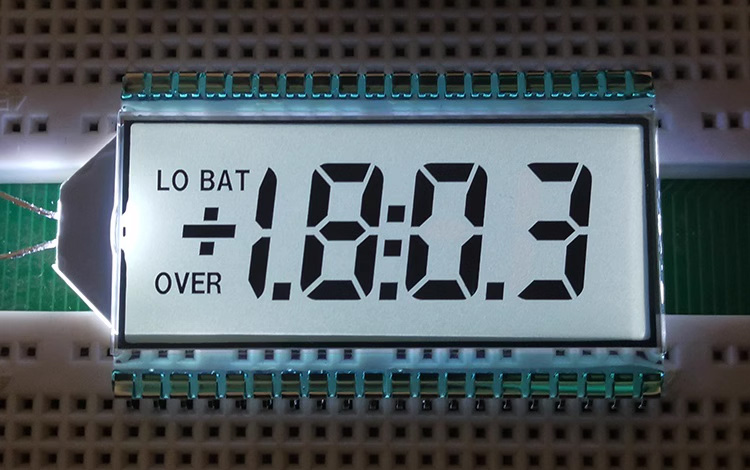

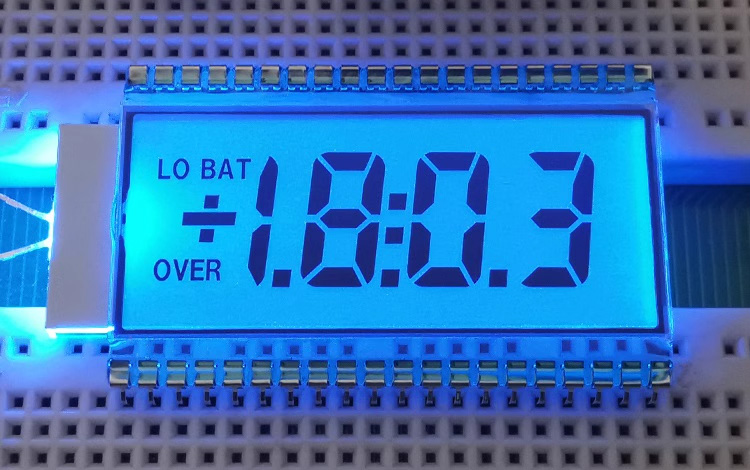

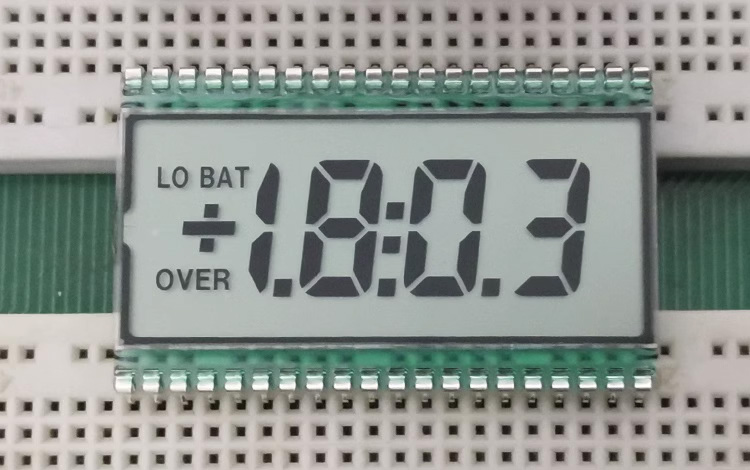

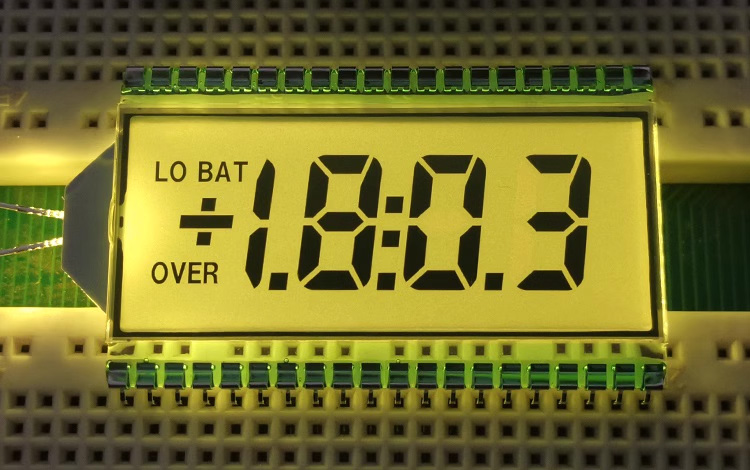

4.Photo Display




5.Packing & Delivery
