40PIN TN Positive 4-Digits Segment LCD Panel 5V Refueling Machine Screen Static Drive HT1621

20 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.Specification parameters

    Display content: 4-digits
Outline Dimension: 93.98*45.72*2.8mm
    Active Area: 86.36*30.48mm
    Display mode: TN , Positive
    Visual angle: 6  O’CLOCK
    Connection: Metal PIN
    Drive mode: Static
    Working voltage: 5V
    PIN NO.: 40P
    Operating Temperature: -40 ~ 70 degrees

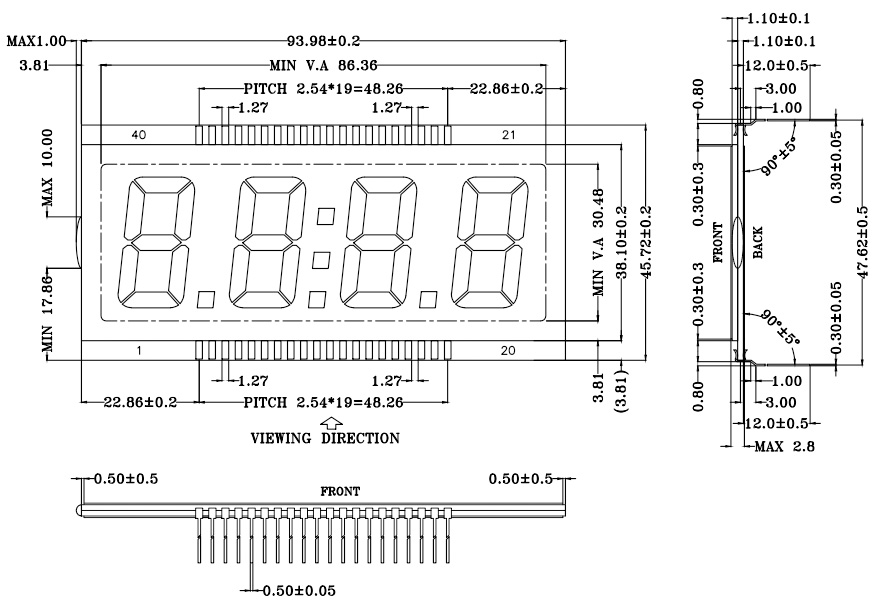

    2.Extenal Dimensions

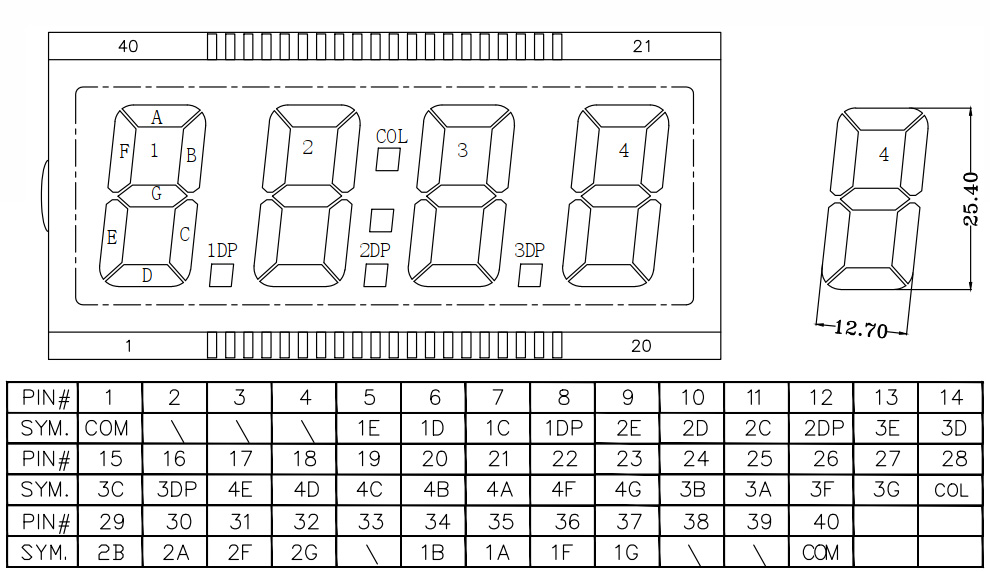

    3.Pin Descriptions

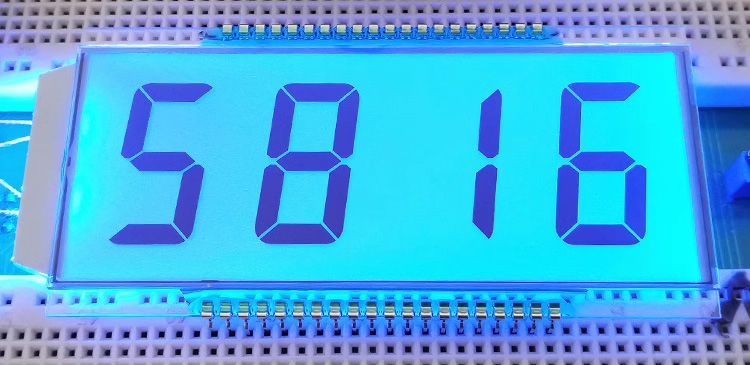

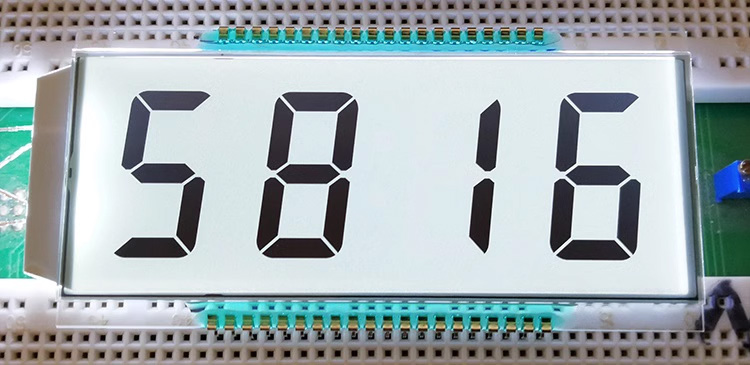

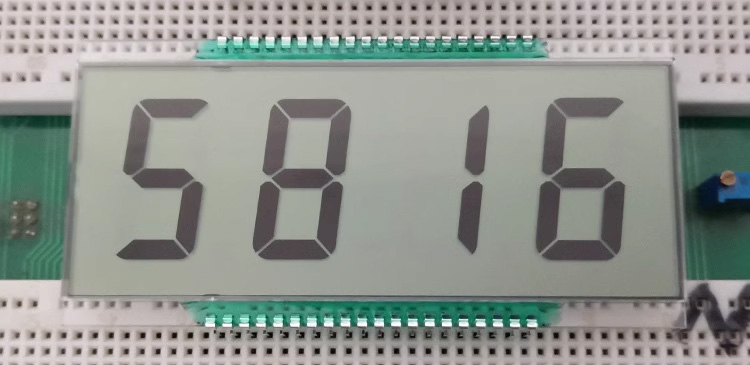

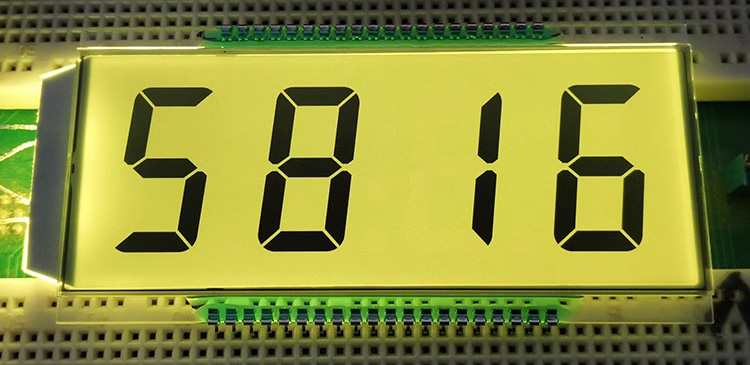

    4.Photo Display






    5.Packing & Delivery
