40PIN TN Positive 4-Digits Segment LCD Panel Industrial Digital Display Screen 5V
40PIN TN Positive 4-Digits Segment LCD Panel Industrial Digital Display Screen 5V
60 sold
Quantity
Detail
Customer Reviews
1.Specification parameters
Display content: 4-digits
Outline Dimension: 50.8*30.48*2.8mm
Active Area: 45.72*16.51mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: Static
Working voltage: 5V
PIN NO.: 40P
Operating Temperature: -20 ~ 70 degrees
Storage Temp.: -45 - +85 degree

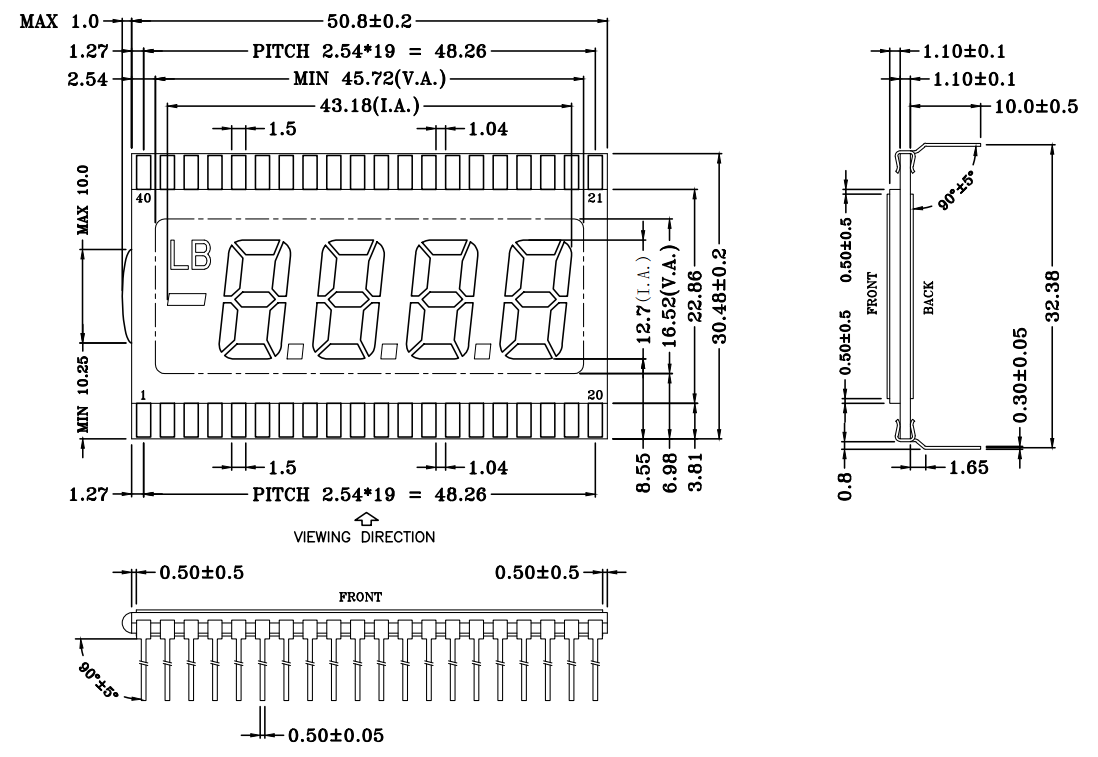

2.Extenal Dimensions

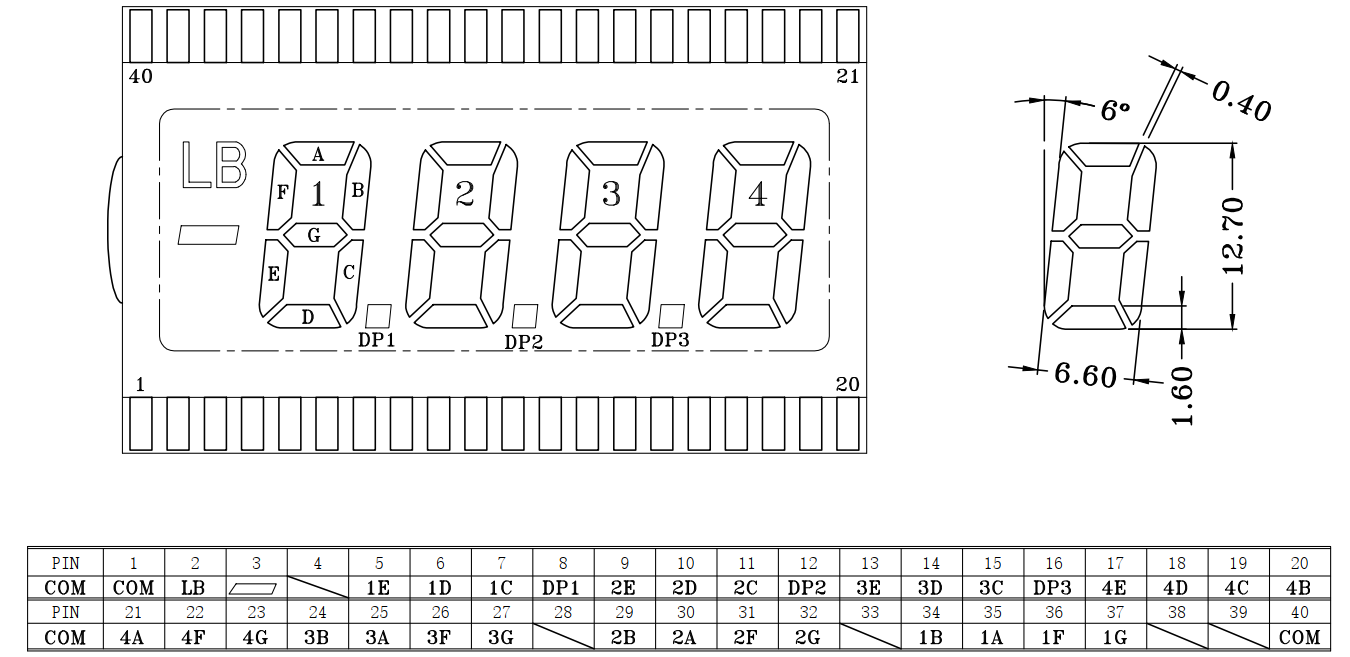

3.Pin Descriptions

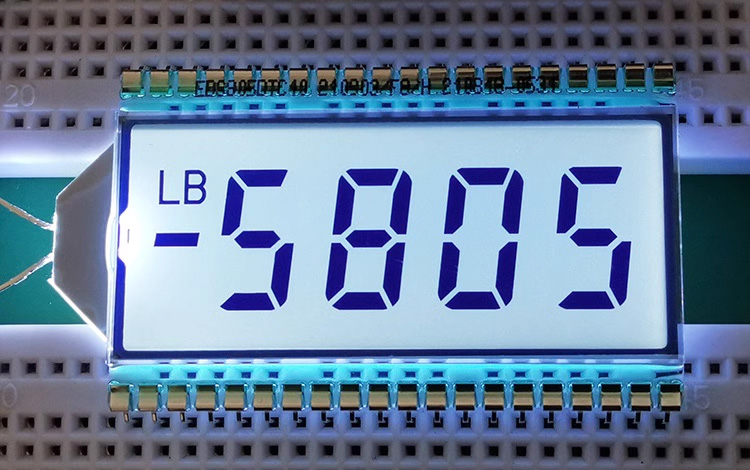

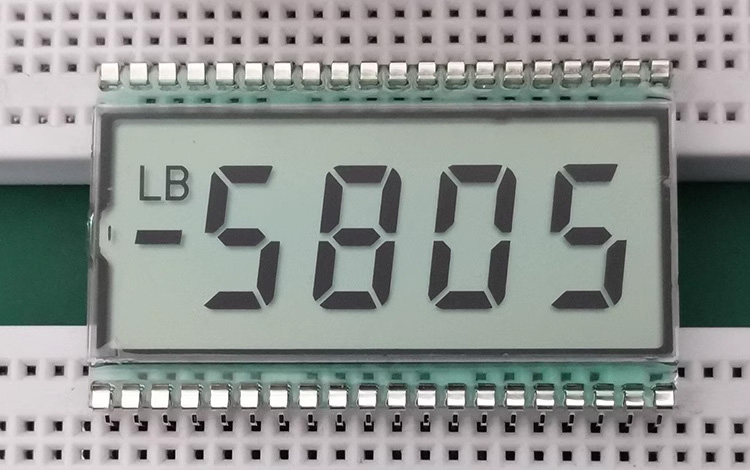

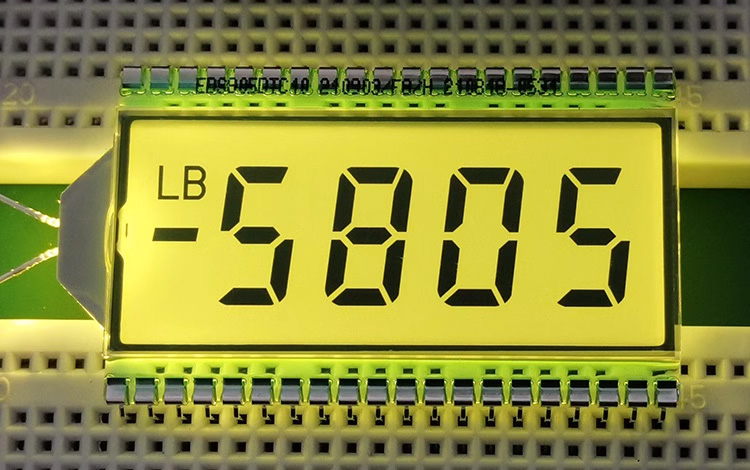

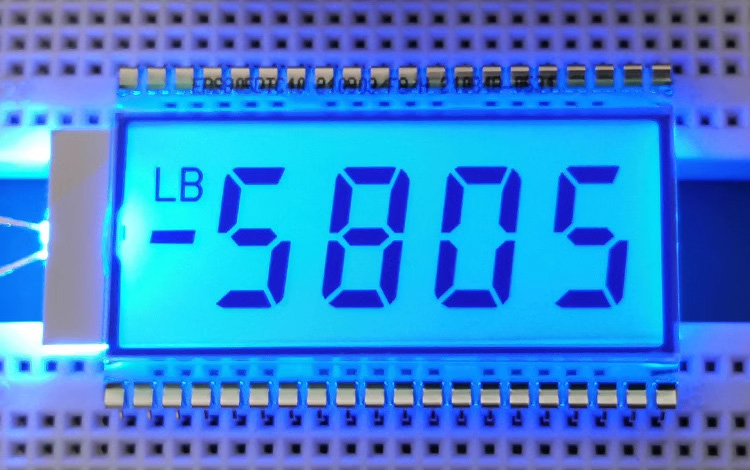

4.Photo Display
5.Packing & Delivery
