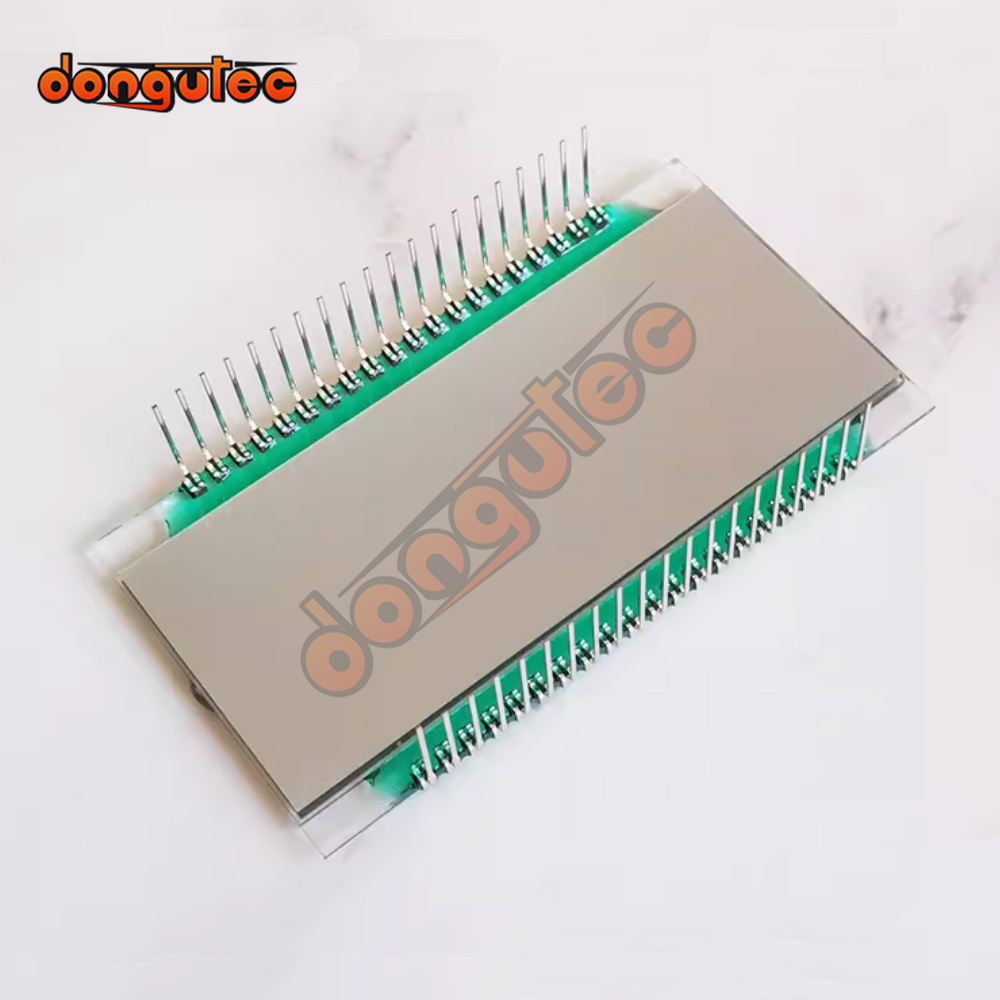

40PIN TN Positive 4-Digits Segment LCD Panel Oiling Machine LCD Screen White/Yellow Green/Blue Backlight 5V

Display content: 4-digits

Outline Dimension: 70.0x38.0x2.8mm

Active Area: 62.0x22.0 mm

Display mode: TN , Positive

Visual angle: 6 O’CLOCK

Connection: Metal PIN

Drive mode: Static state

Backlight: White or Yellow Green  Blue

Working voltage: 5.0V

Operating Temperature: -20~70 degrees

Storage Temperature: -30~80 degrees

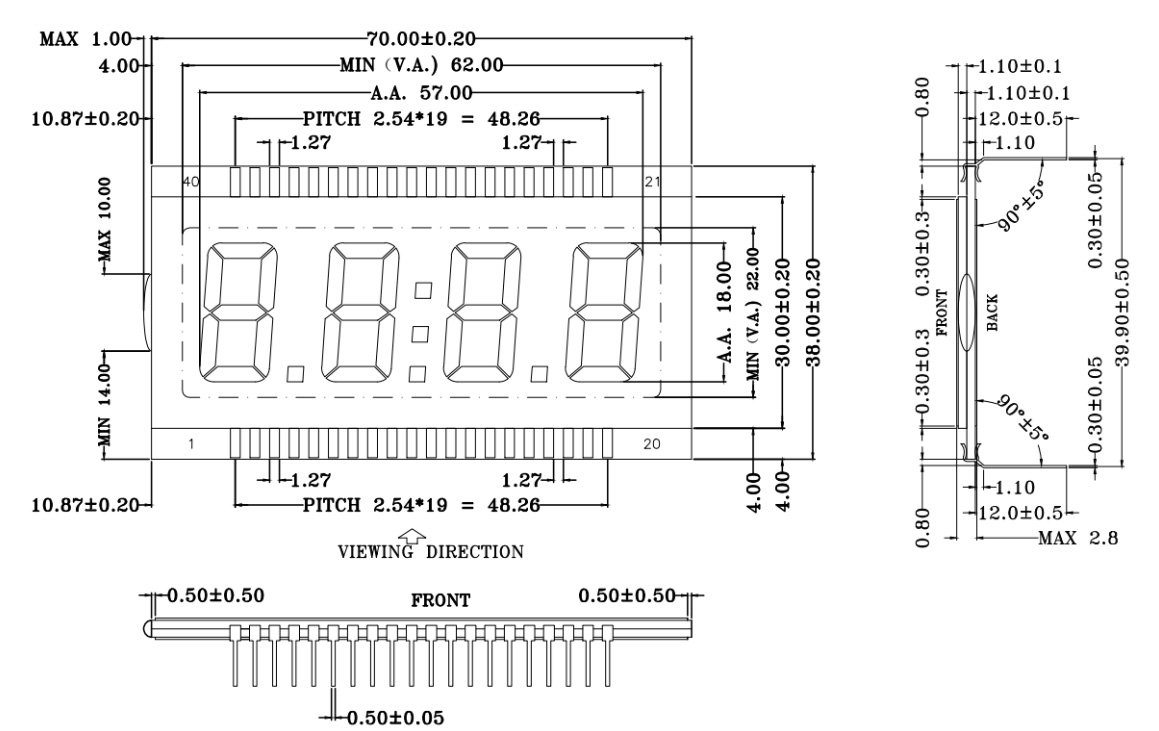

2.Extenal Dimensions

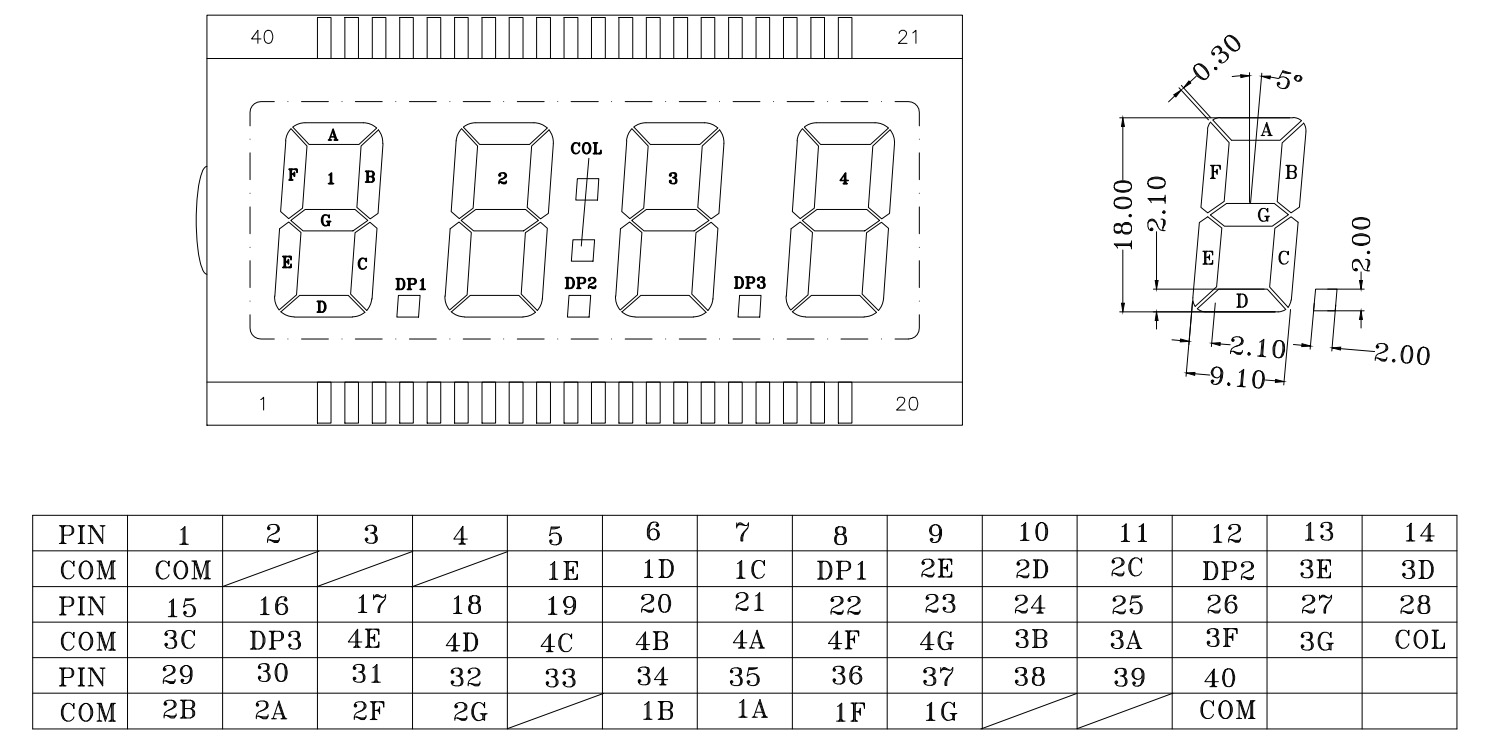

3.Pin Descriptions

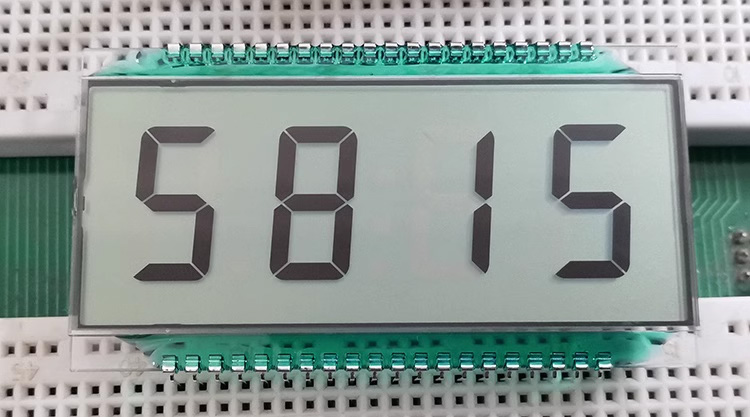

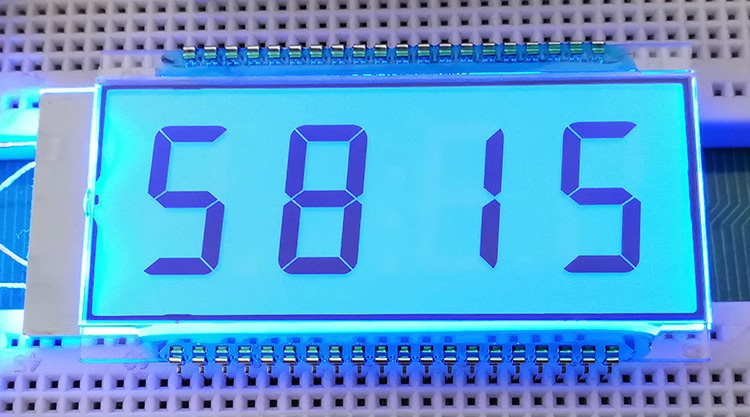

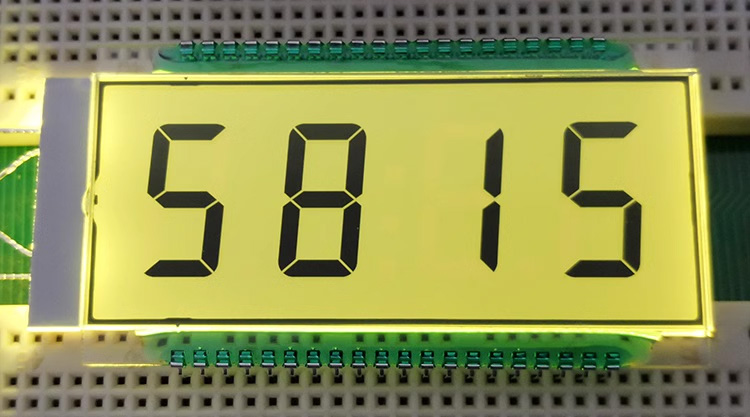

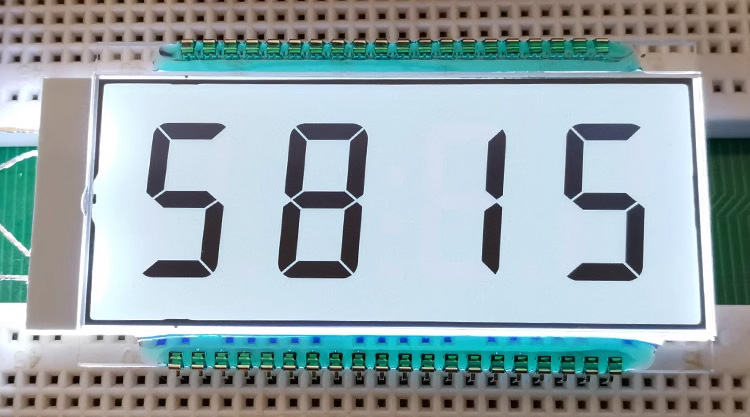

4.Photo Display


5.Packing & Delivery
