70PIN TN Positive 6-Digits Segment LCD ED139 6 Digit 7 Segment LCD Display Screen Static Driving TN Positive Display 5V Fuel dispenser display screen Gas Pump Digital LCD Displays
70PIN TN Positive 6-Digits Segment LCD ED139 6 Digit 7 Segment LCD Display Screen Static Driving TN Positive Display 5V Fuel dispenser display screen Gas Pump Digital LCD Displays
800 sold
Quantity
-
Detail1.Specification parameters
Display content: 6-Digits
Outline Dimension:137.16*46.0*2.8mm
Active Area: 134.0*35.0mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: Static
Working voltage: 5V
PIN NO.: 70P
Operating Temperature: -20 ~70 degrees

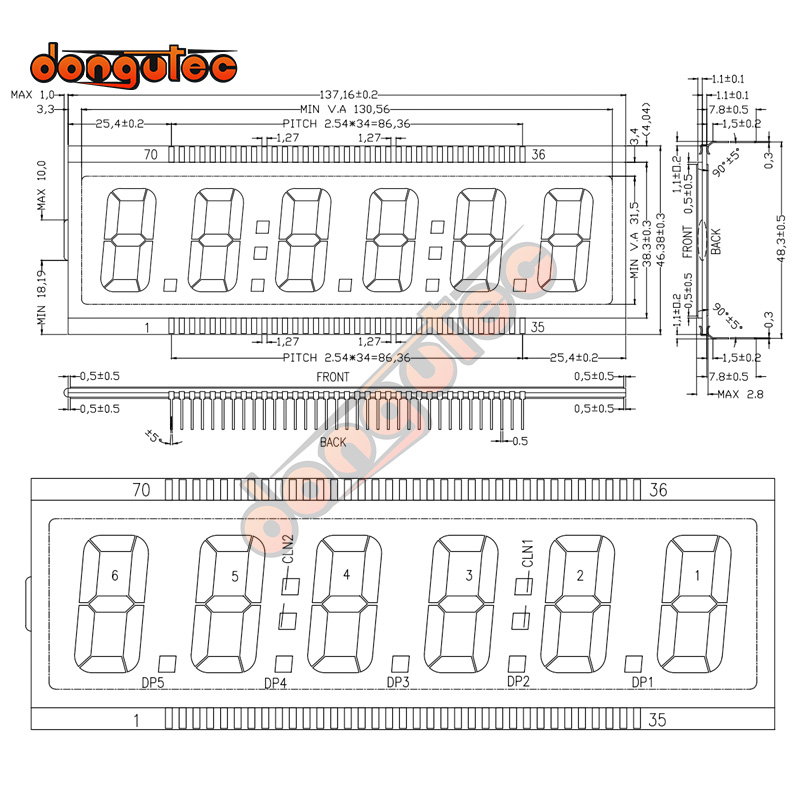

Storage Temperature: -30 ~80 degrees2.Extenal Dimensions
3.Pin Descriptions

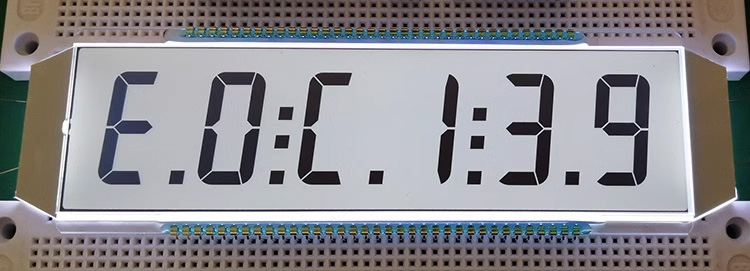

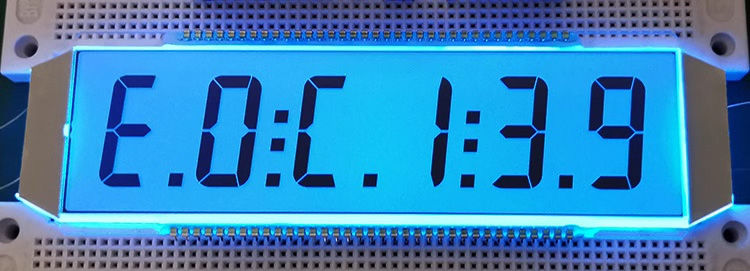

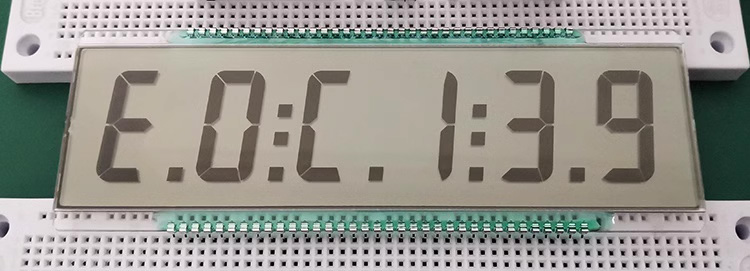

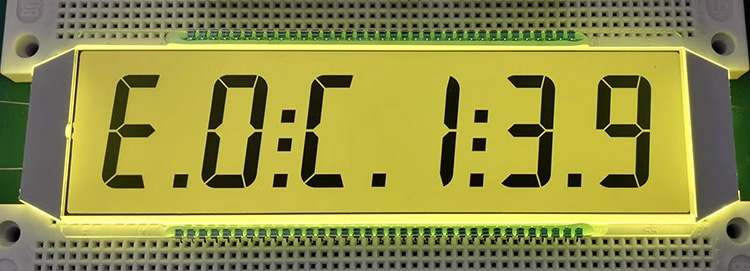

4.Photo Display
5.Packing & Delivery
-
