8PIN TN Positive 2-Digits Segment LCD Panel Digital Tube Temperature Humidity LCD Screen HT1621

25 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews

1.Specification parameters

Display content: 2-digits with Temperature Humidity Symbol
Outline Dimension: 30.0*21.0*2.8mm
Active Area: 27.0*16.0mm
Display mode: TN , Positive
Visual angle: 12 OrsquoCLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty , 1/3 Bias
Working voltage: 3.0V
Operating Temperature: -10 ~ 60 degrees
Storage Temperature: -20 ~ 70 degrees
PIN NO.: 8P

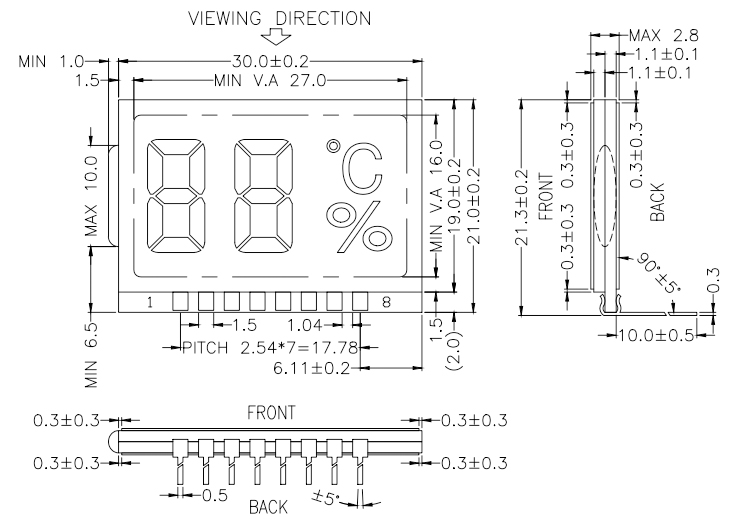

2.Extenal Dimensions

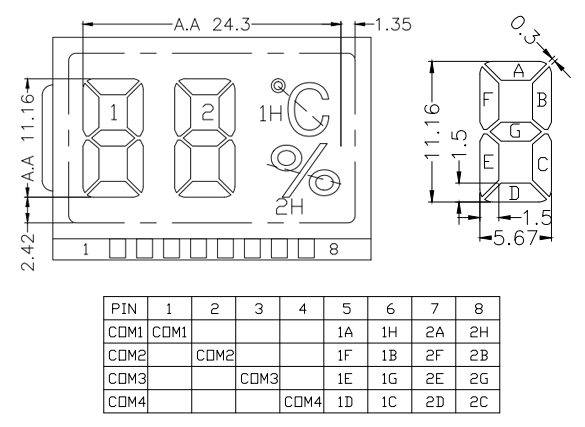

3.Pin Descriptions

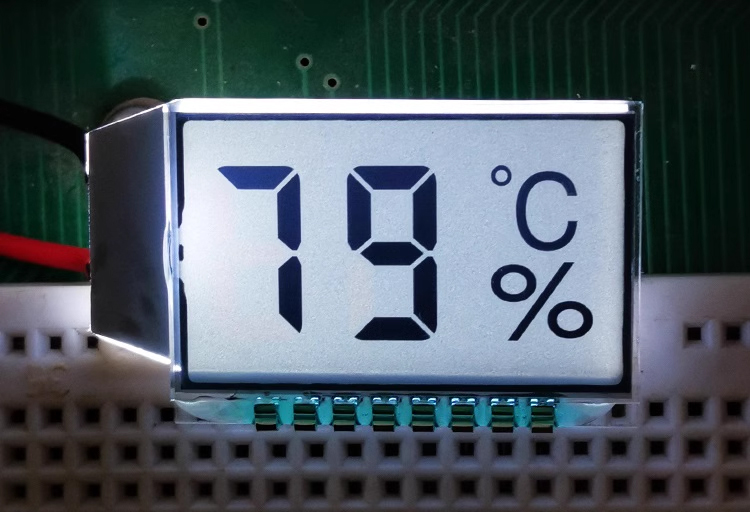

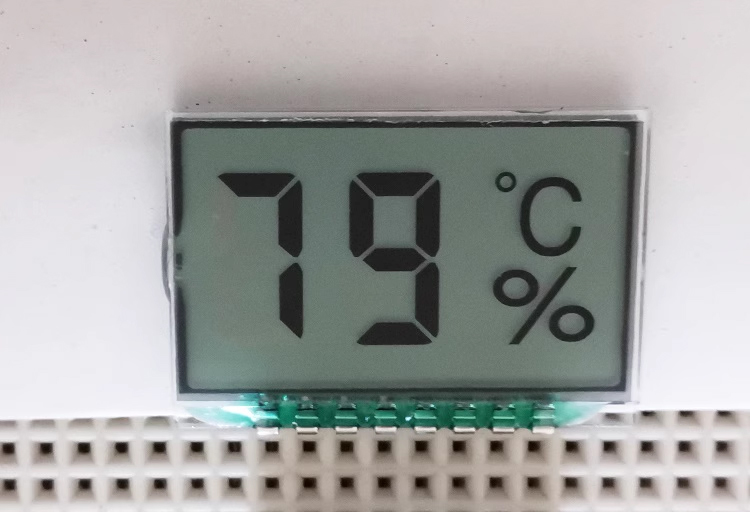

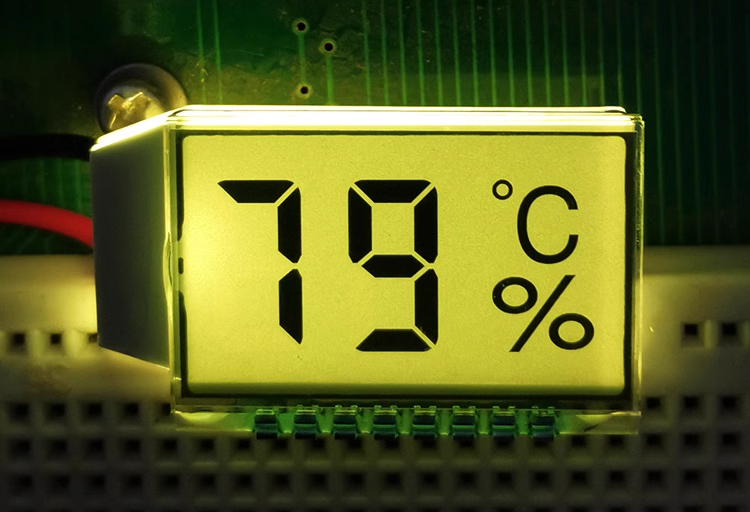

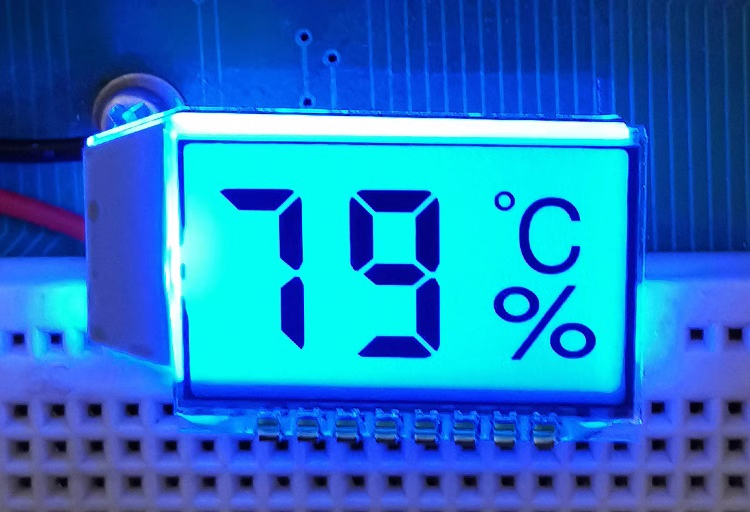

4.Photo Display






5.Packing & Delivery
