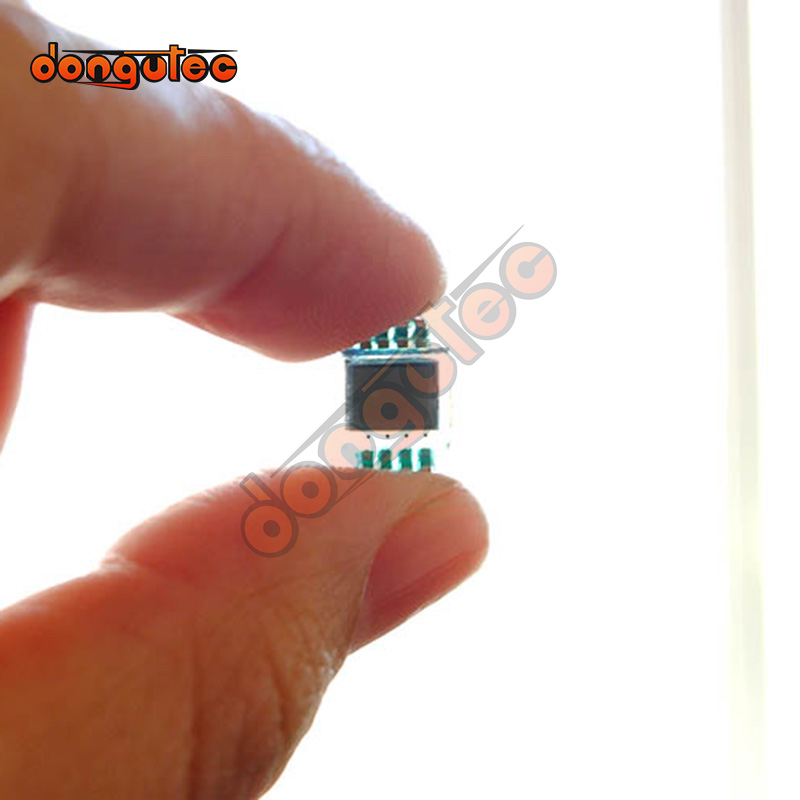

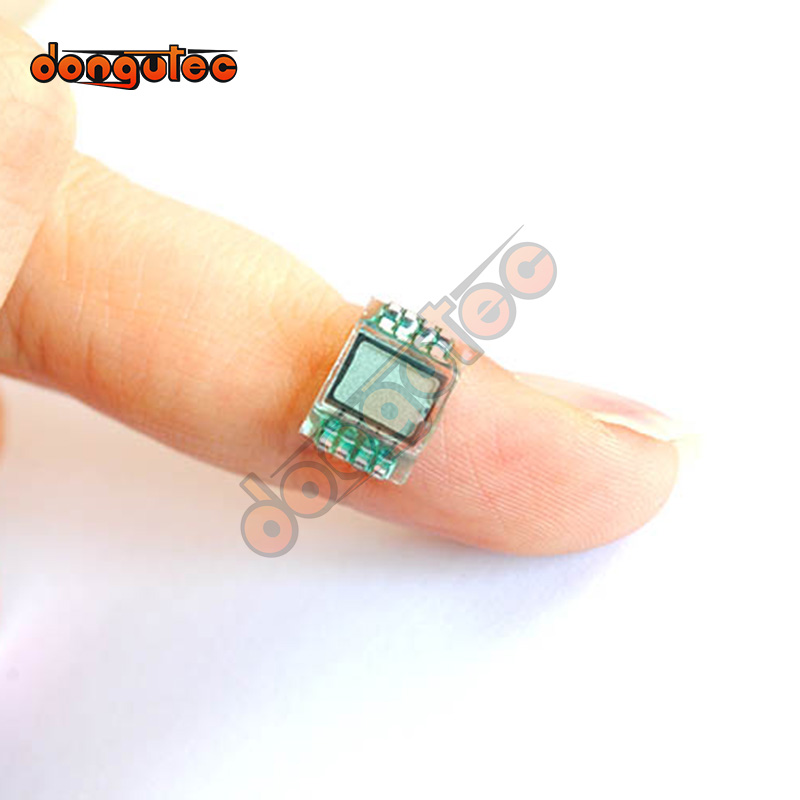

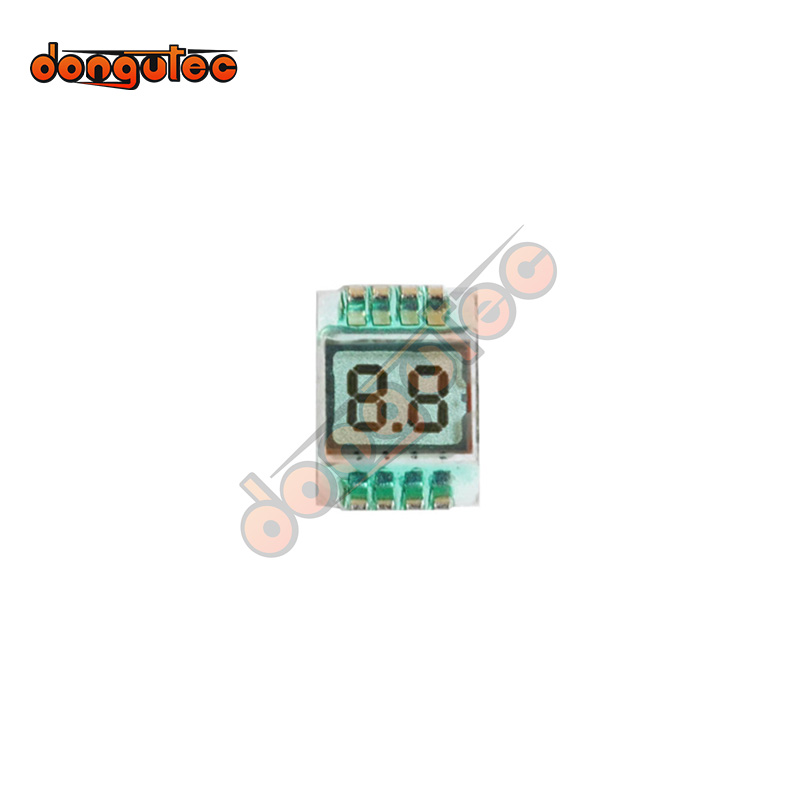

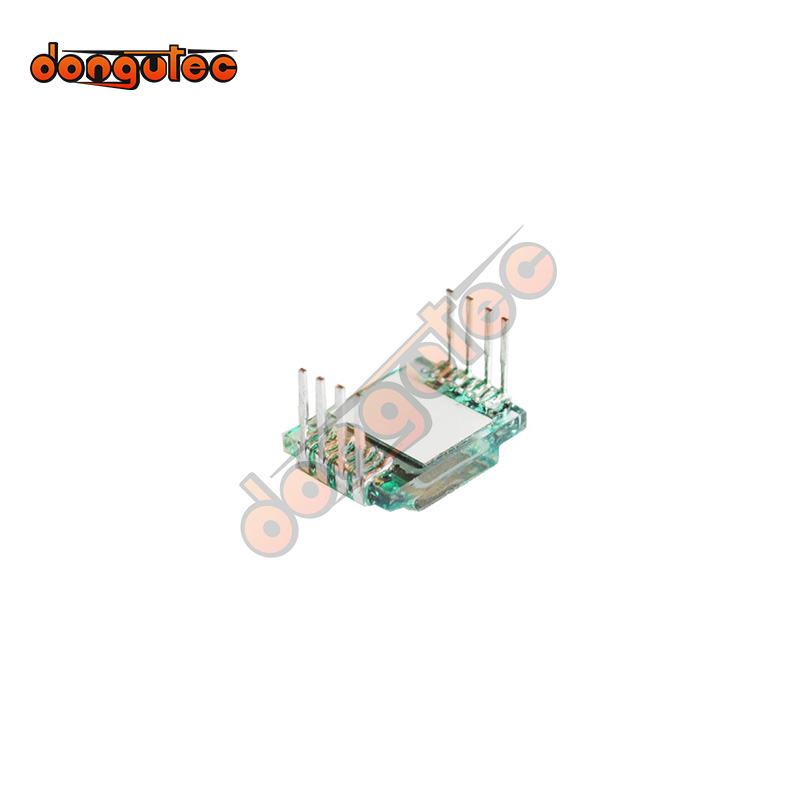

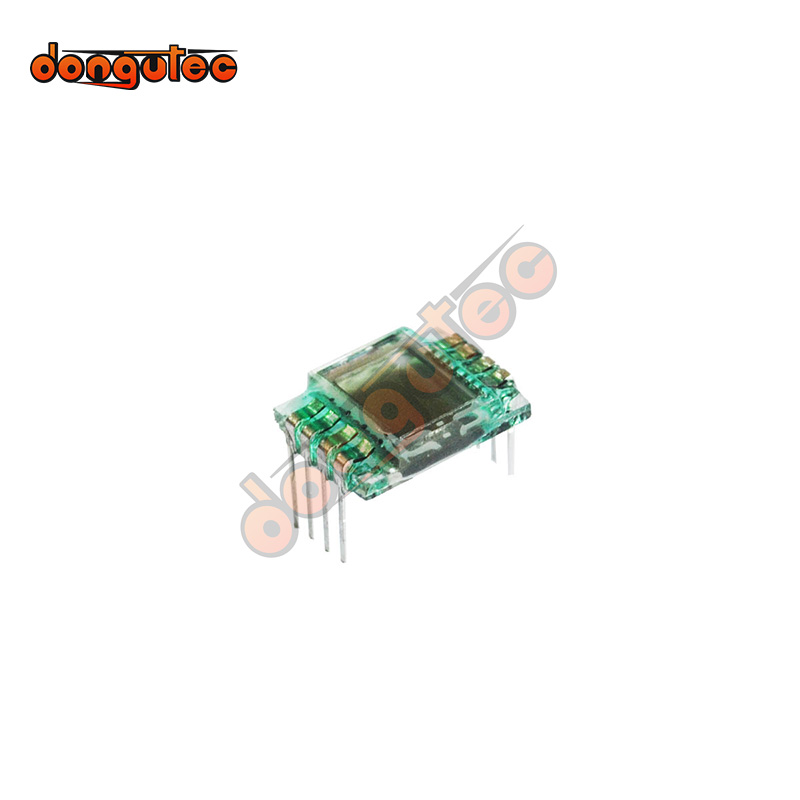

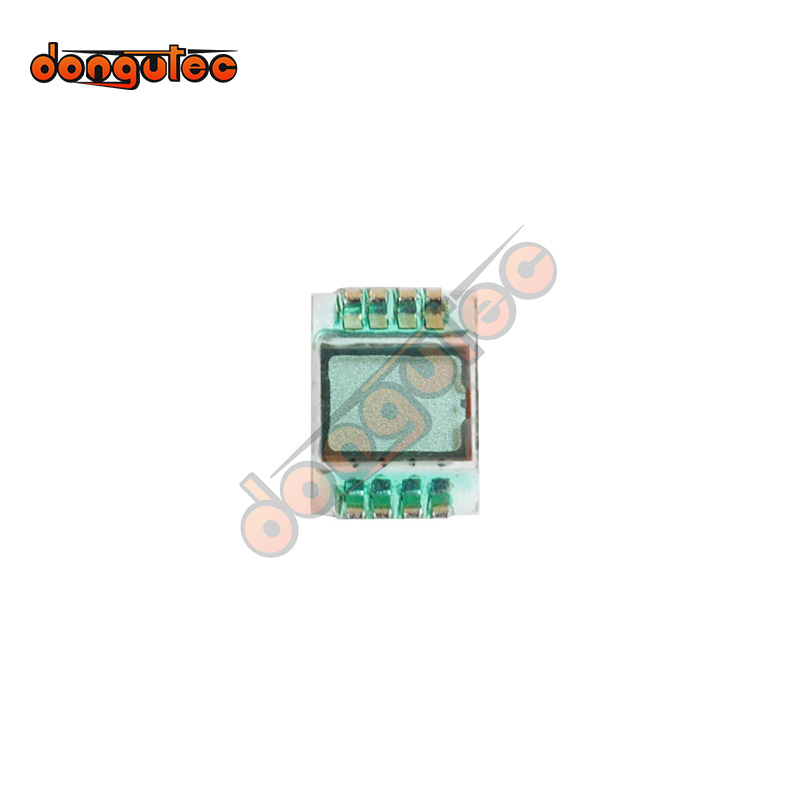

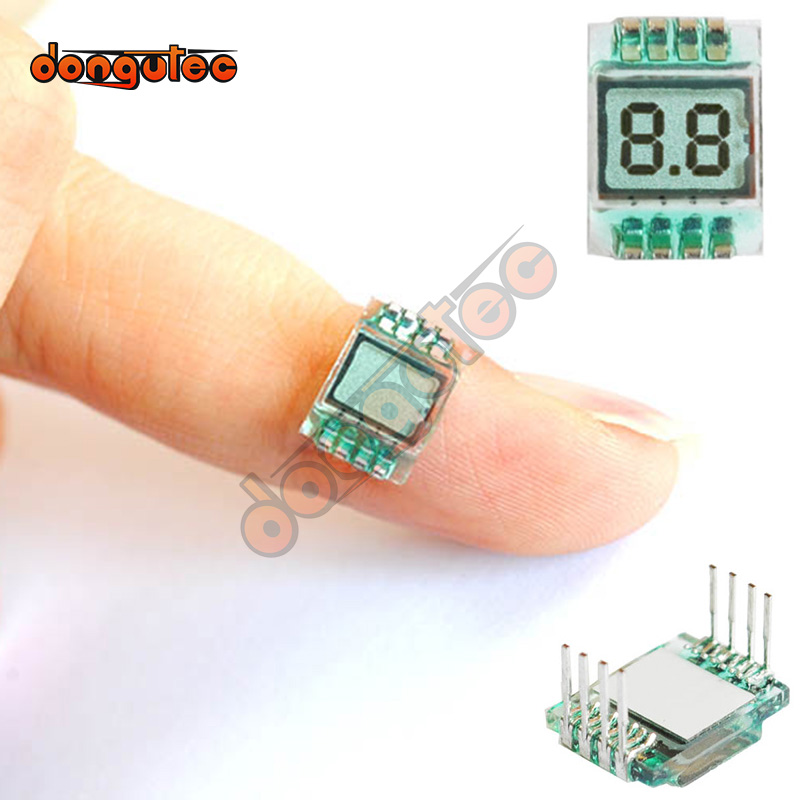

8PIN TN Positive 2-Digits Segment LCD Panel Without Backlight Small Instrument Display

8PIN TN Positive 2-Digits Segment LCD Panel Without Backlight Small Instrument Display

Display mode TN

Display content: 2-digits

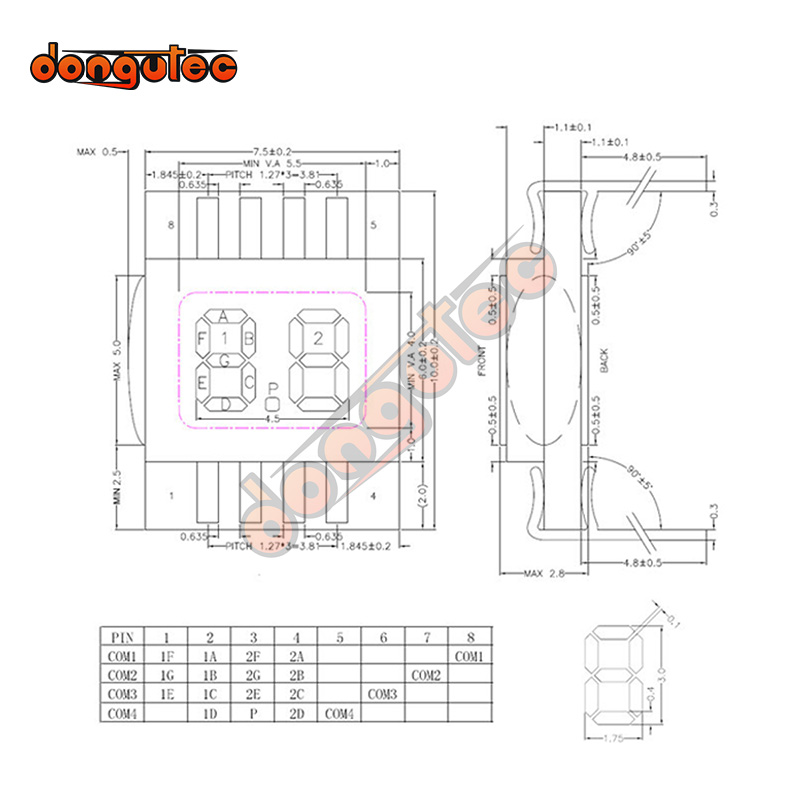

Outline Dimensions: 7.5 * 10 * 1.1mm

Active Area: 5.5*4.0mm

Viewing Angle: 6 O'clock

Voltage: 3.0V

Working Temperature: -20 ~ 70 C.

Storage Temperature: -30 ~ 80 C

Driving paths: 1/4D, 1/2B

Polarizer Type: reflection

Backlight: No

Connection mode: PIN

PIN NO.: 8P
