90PIN HTN Positive Double 6-Digits Segment LCD Panel Fuel Dispenser Display Screen 3-5V Static Drive

30 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
1.Specification parameters
Outline Dimension: 160.0*99.0*2.8mm
Active Area: 148.0*87.0 mm
Font Area: 38.2*16.4mm
LCD Type: HTN, Transmissive, Positive
Connection: PIN
Drive mode: Static
Working voltage: 3-5V
Pin Num: 90P
Viewing Angle: 6 O'CLOCK
Operating Temp.: - 30 - 70 degree
Storage Temp.: - 40 - 80 degree

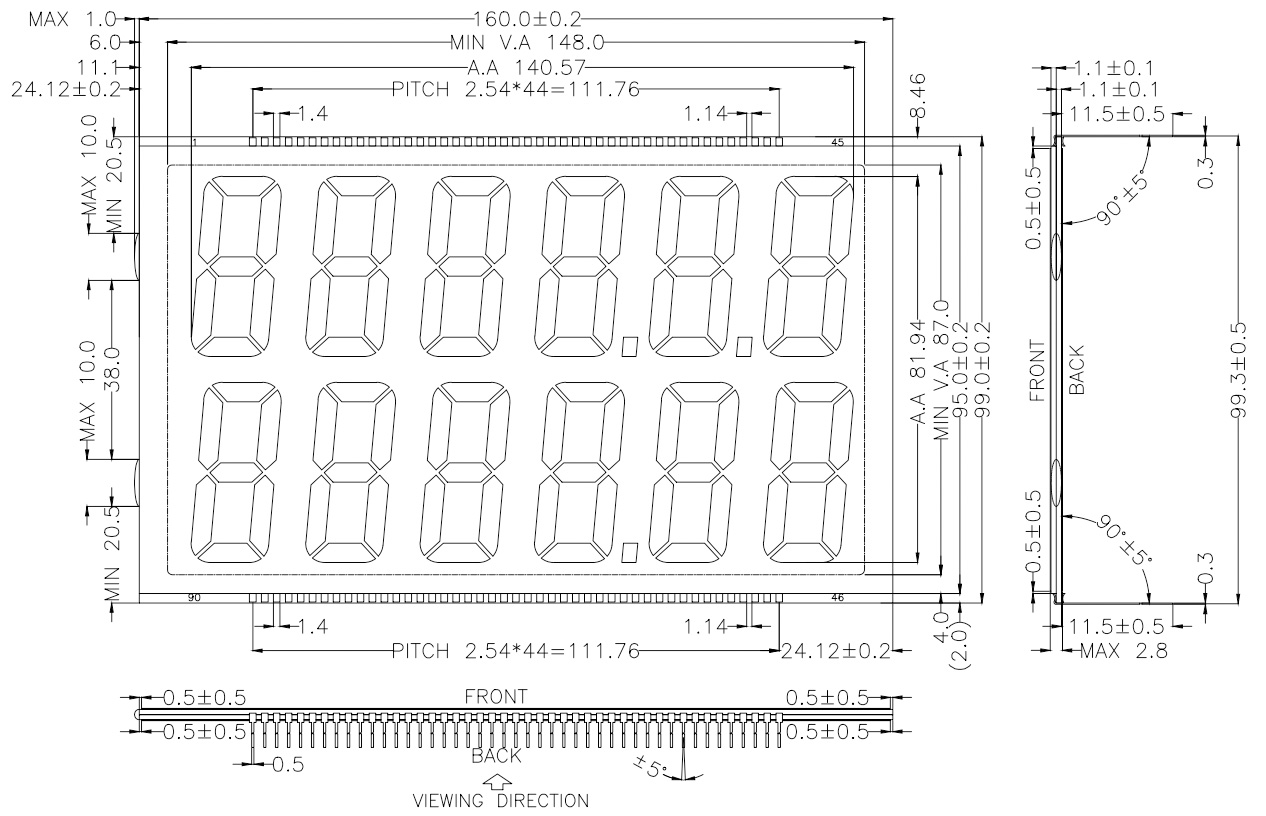

2.Extenal Dimensions

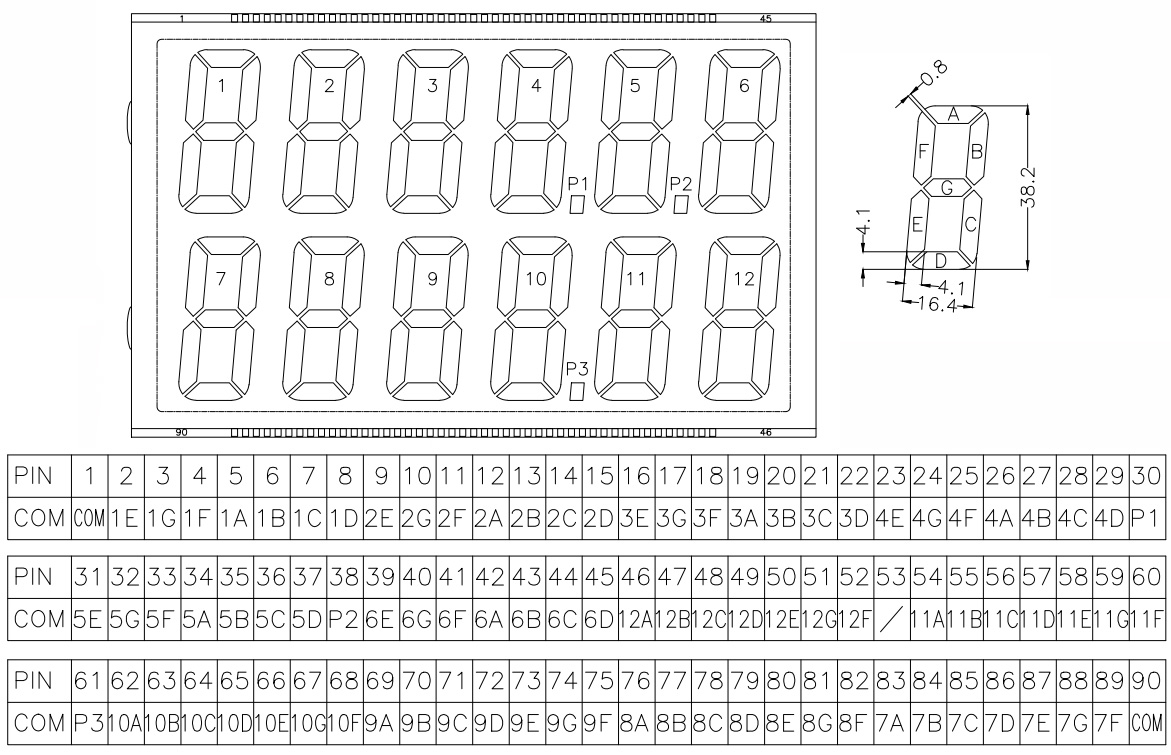

3.Pin Descriptions

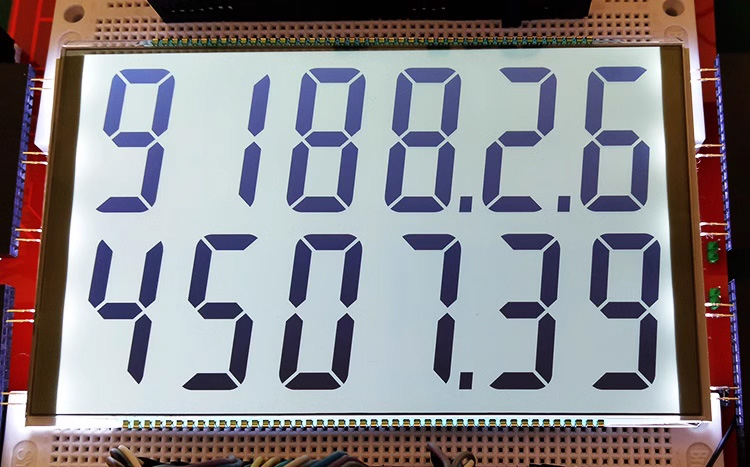

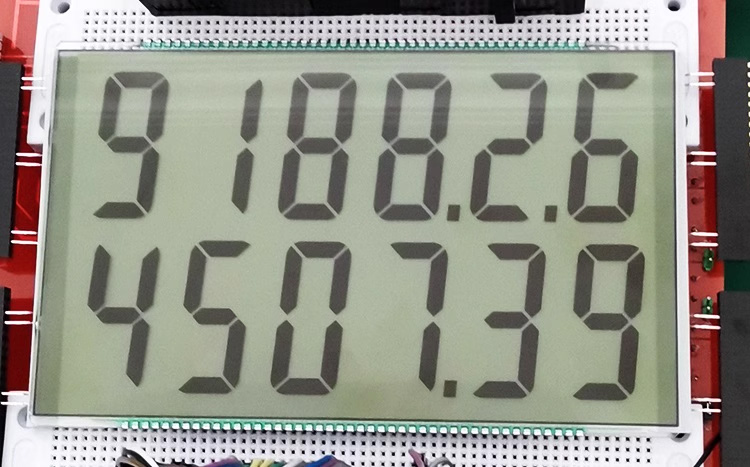

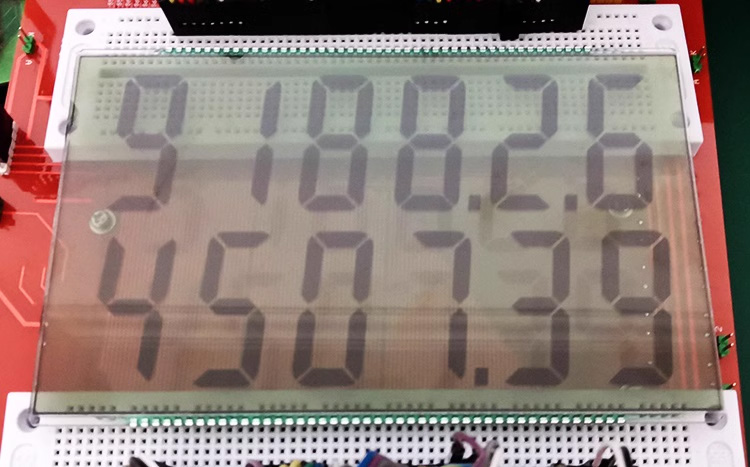

4.Photo Display





5.Packing & Delivery
