EDC190 40PIN TN Positive 4 Digits Segment LCD Display Panel 3V Digital Tube Clock Display HT1621

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    1.Specification parameters
    Display content: 4-digits
    Outline Dimension: 50.8*30.48*2.8mm
    Active Area: 45.72*16.51mm
    Display mode: HTN , Positive
    Visual angle: 6  O’CLOCK
    Connection: Metal PIN
    Drive mode: Static state
    Working voltage: 3.0V
    PIN NO.: 40P
    Operating Temperature: -40 ~ 80 degrees

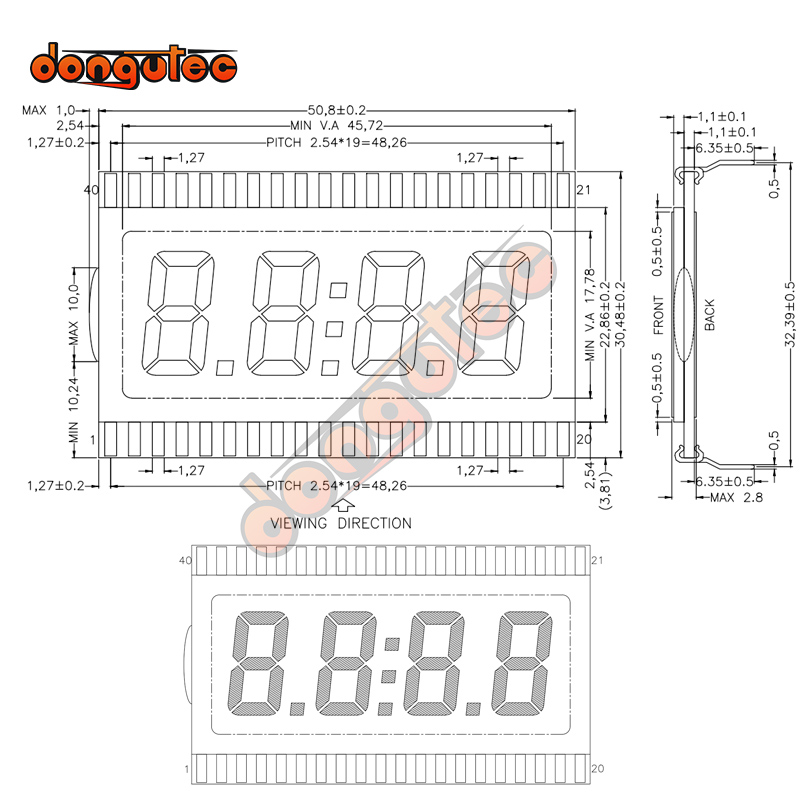

    2.Extenal Dimensions

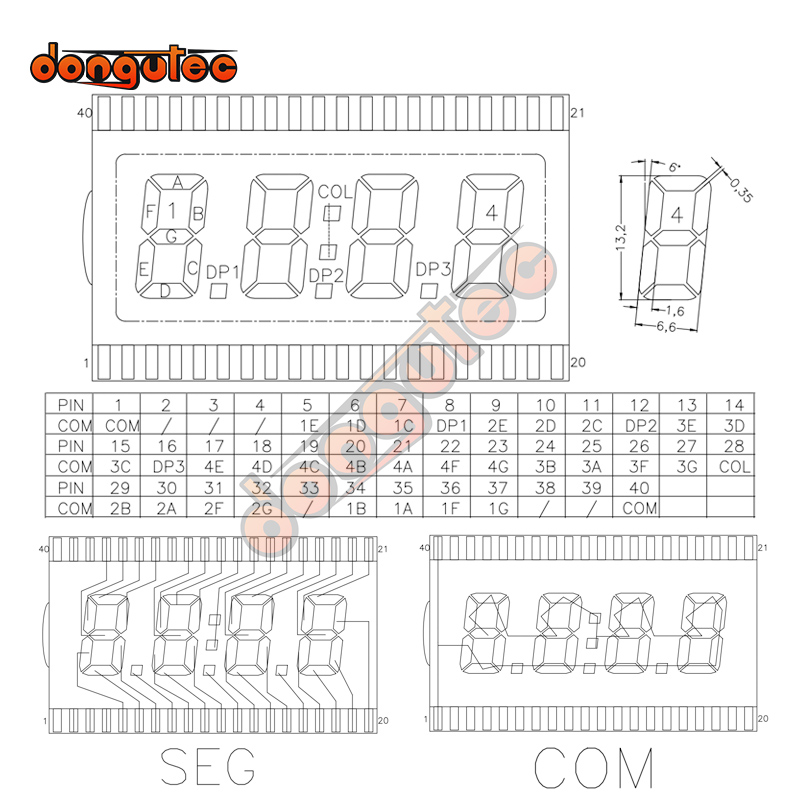

    3.Pin Descriptions

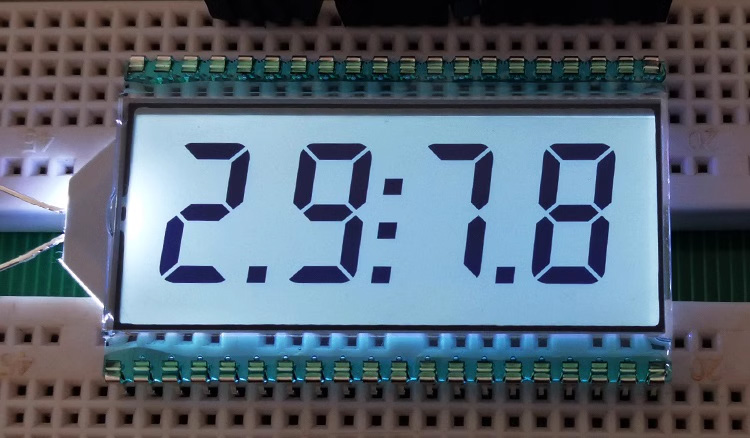

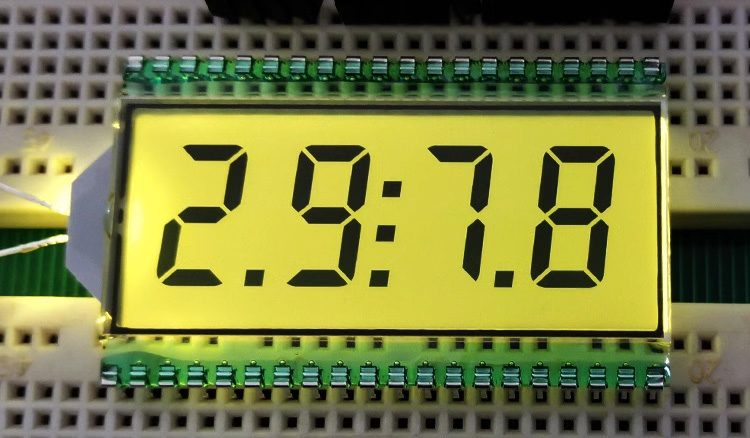

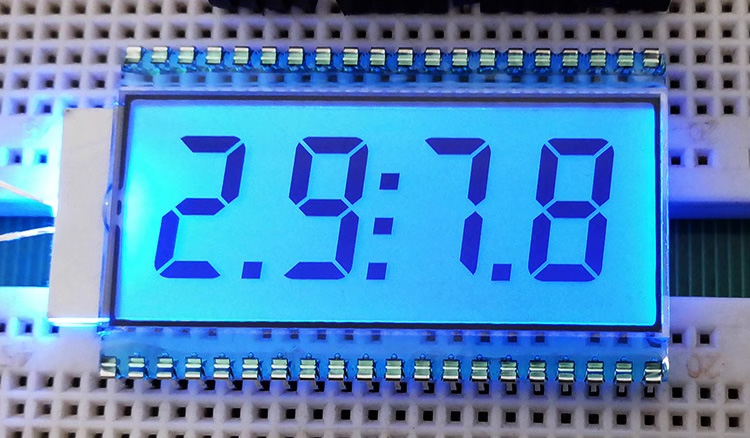

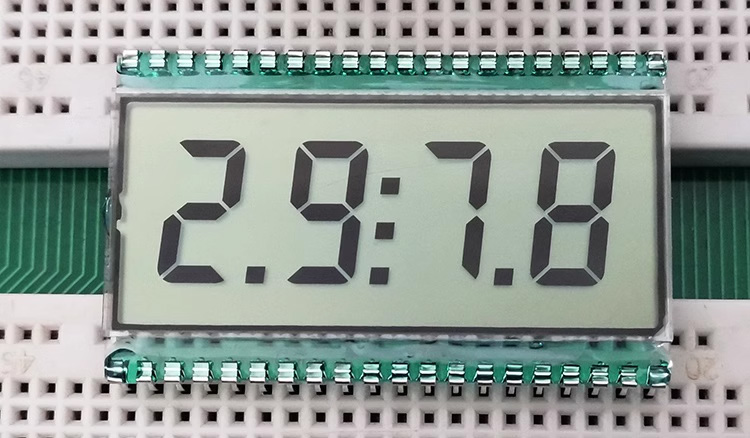

    4.Photo Display


    5.Packing & Delivery
