EDS808 40PIN TN Positive 4-1/2 Digits Segment LCD Panel Wide Temperature Static Drive Screen No Backlight 3V 5V

25 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    1.Specification parameters

    Outline Dimension: 50.8x22.86x2.8mm
    Active Area: 45.72x12.7mm
    Viewing Direction: 6:00
    Backlight Color: no
    Operating Voltage: 3V
    Operating Temp: -20 - 70 degree
    Storage Tempe: -30 - 80 degree
    Drive method: Static
    Display Type: TN Positive
    Polarizer Mode: Reflective
    Connector: 40Pins

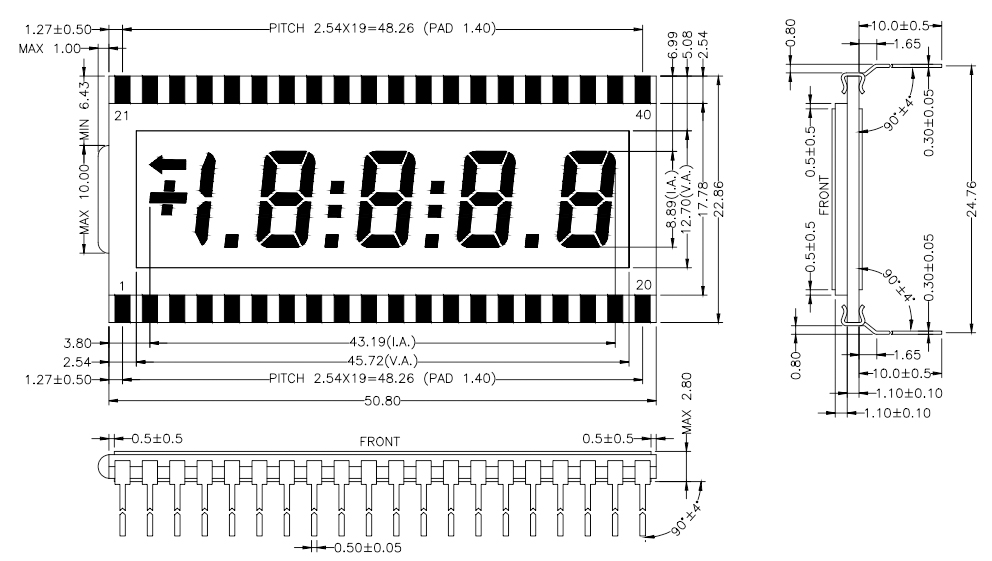

    2.Extenal Dimensions

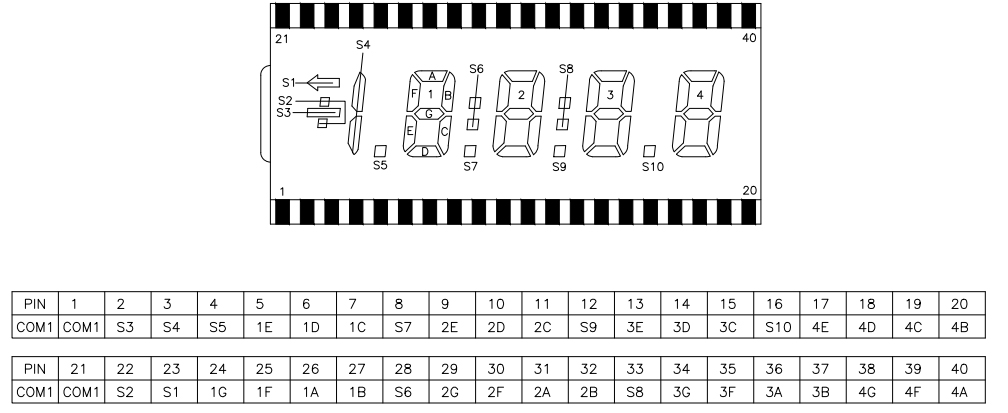

    3.Pin Descriptions

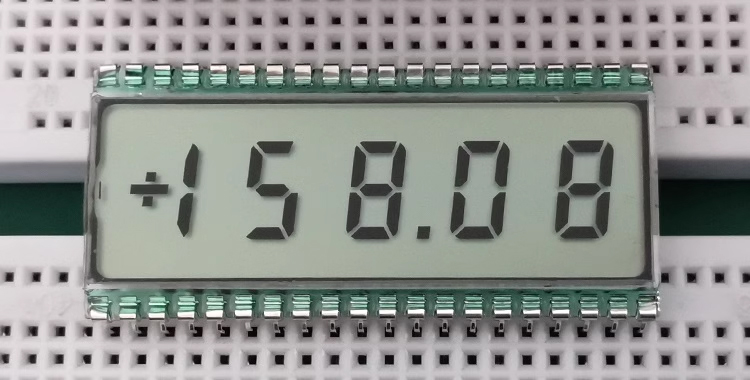

    4.Photo Display



    5.Packing & Delivery
