Tokheim Premier C Money/Volume LCD 100PIN TN Positive 12-Digits Segment LCD
-
Detail1.Specification parameters
Display content: 12-Digits
Outline Dimension:134.5*68.7*2.8mm
Active Area: 131.5*60.7mm
Display mode: TN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: Static
Working voltage: 3V
PIN NO.: 100P
Operating Temperature: -20 ~70 degrees

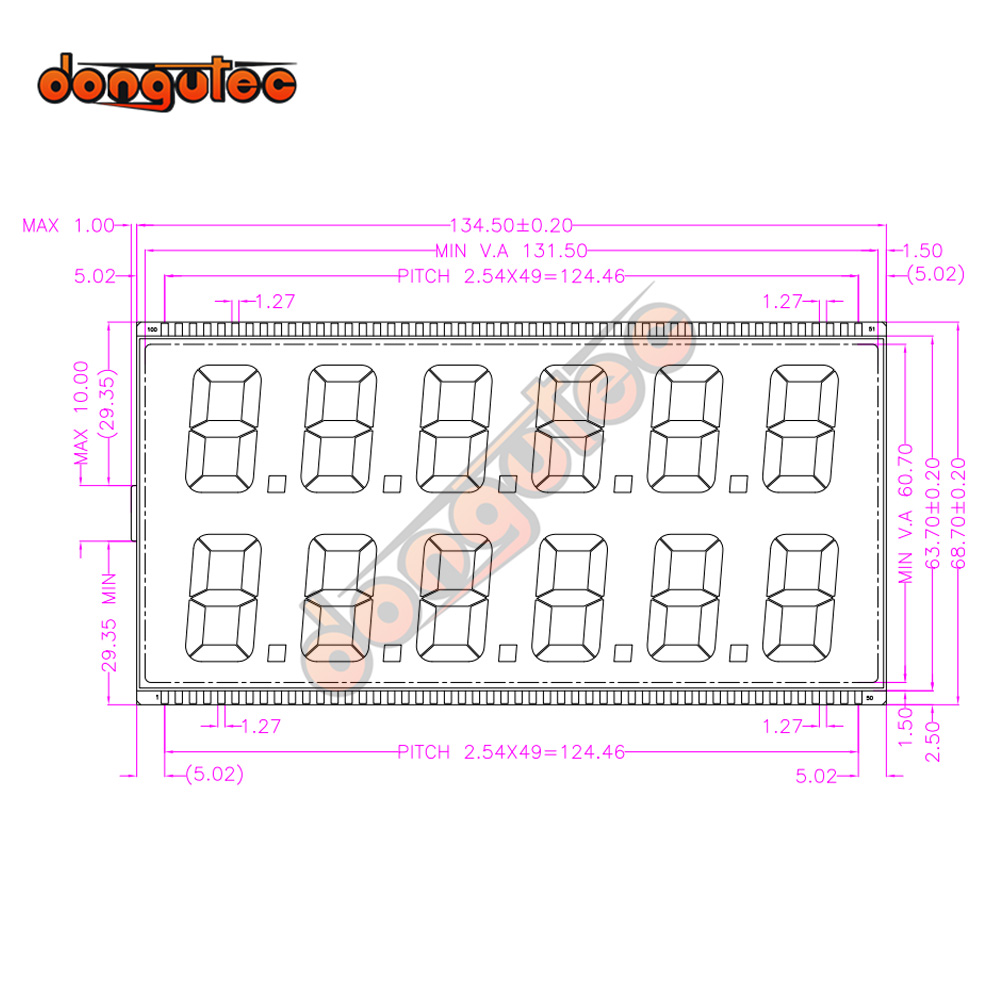

Storage Temperature: -30 ~80 degrees2.Extenal Dimensions

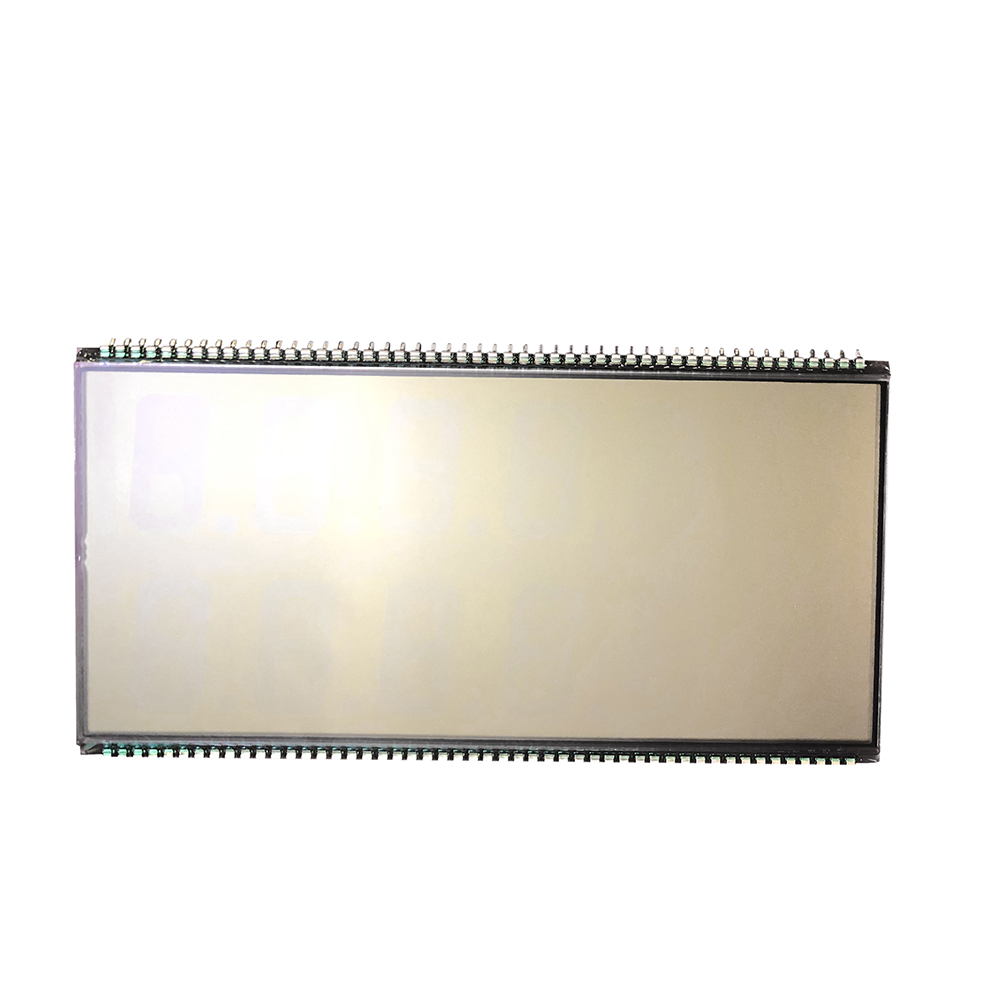

3.Photo Display
4.Packing & Delivery -
