16PIN TN Positive 4-Digits Segment LCD Panel Ultra-low Temperature Display Screen 3V HT1621

1.Specification parameters

Display content: 4-Digits
Outline Dimension: 51.0*34.0*2.8mm
Active Area: 48.0*25.0mm
Display mode: TN , Positive
Visual angle: 6  O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty，1/3 Bias
Working voltage: 3V
PIN NO.: 16P
Operating Temperature: -40 ~ 80 degrees

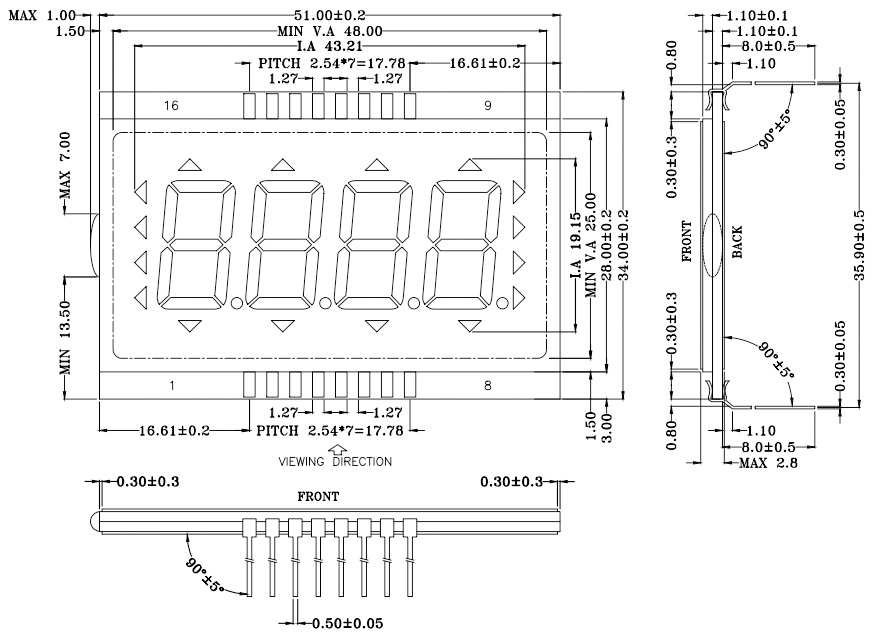

2.Extenal Dimensions

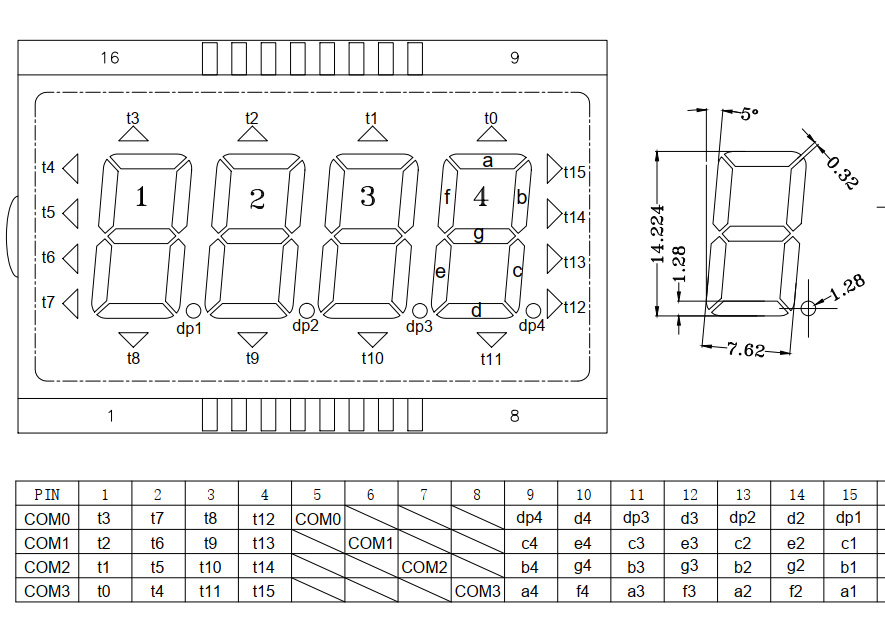

3.Pin Descriptions

4.Photo Display

5.Packing & Delivery
