Home / 3.2 inch full view 34PIN White / Yellow OLED Display Screen SSD1322 Drive IC 256*64 8bit 6800/8080 parallel SPI serial port
  • 3.2 inch full view 34PIN White / Yellow OLED Display Screen SSD1322 Drive IC 256*64 8bit 6800/8080 parallel SPI serial port
  • 3.2 inch full view 34PIN White / Yellow OLED Display Screen SSD1322 Drive IC 256*64 8bit 6800/8080 parallel SPI serial port

3.2 inch full view 34PIN White / Yellow OLED Display Screen SSD1322 Drive IC 256*64 8bit 6800/8080 parallel SPI serial port

Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
1.Specification parameters
Size: 3.2 inch
Active Area: 79.084*19.756mm
Module Size: 87.4*51.3*2.01mm
Panel Size: 87.4*28.5mm
Resolution: 256*64
Drive IC: SSD1322
Dot Pitch: 0.309*0.309mm
Dot Size: 0.289*0.289mm
Aperture Rate: 88%
Color: Yellow/White
PIN NO.: 34Pin

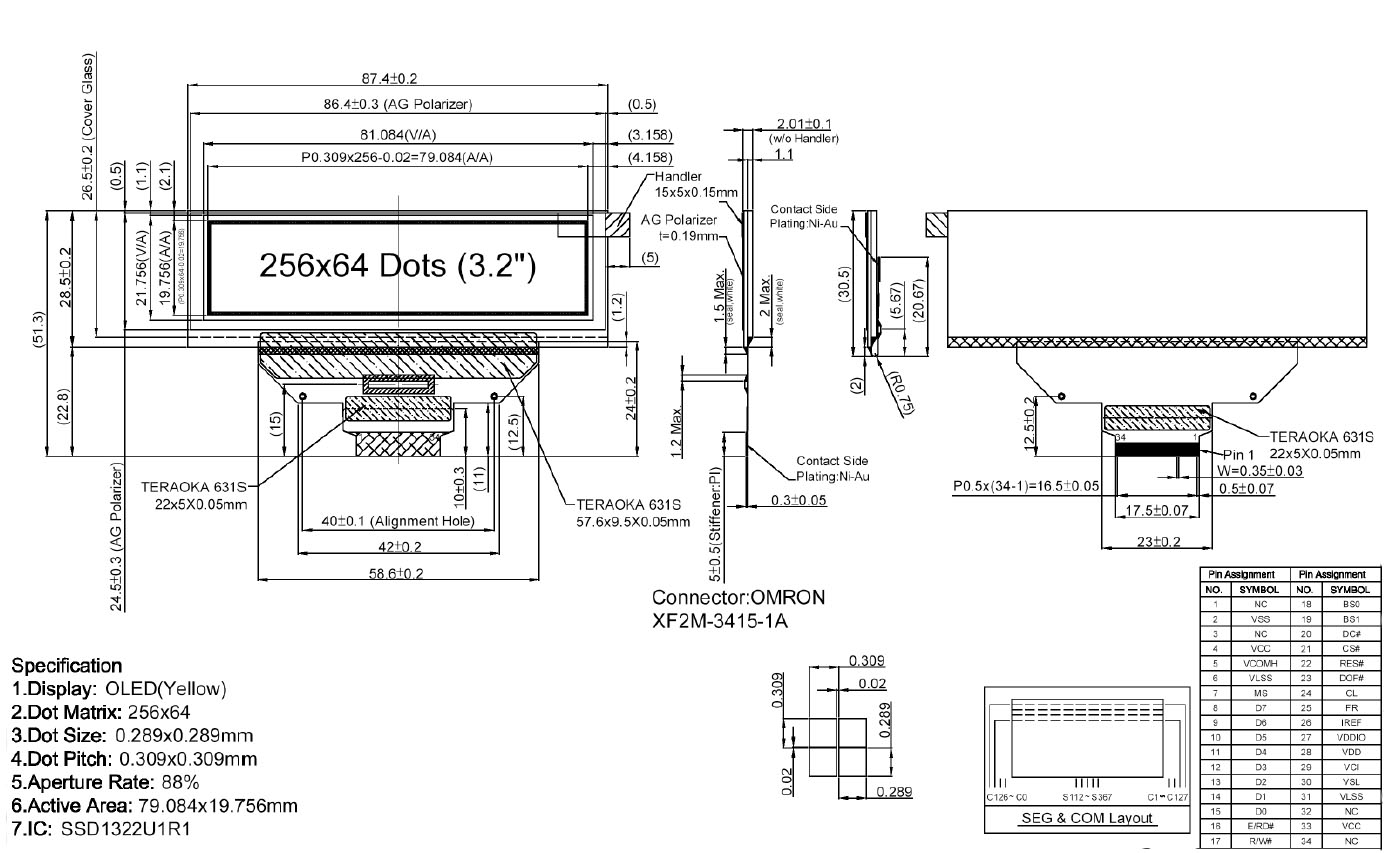

2.Extenal Dimensions


3.Pin Descriptions


4.Photo Display

5.Packing & Delivery
