36PIN HTN Positive 6-Digits Segment LCD Panel Pressure Gauge LCD Display 3V HT1621

1.Specification parameters
Display content: 6-Digits
Outline Dimension:48.0*25.4*2.8mm
Active Area: 42.0*17.9mm
Display mode: HTN , Positive
Visual angle: 12  O’CLOCK
Connection: Metal PIN
Drive mode: 1/4 Duty , 1/3 Bias
Working voltage: 3.0V
PIN NO.: 36P
Operating Temperature: -40 ~ 80 degrees
Storage Temperature: -45 ~ 85 degrees

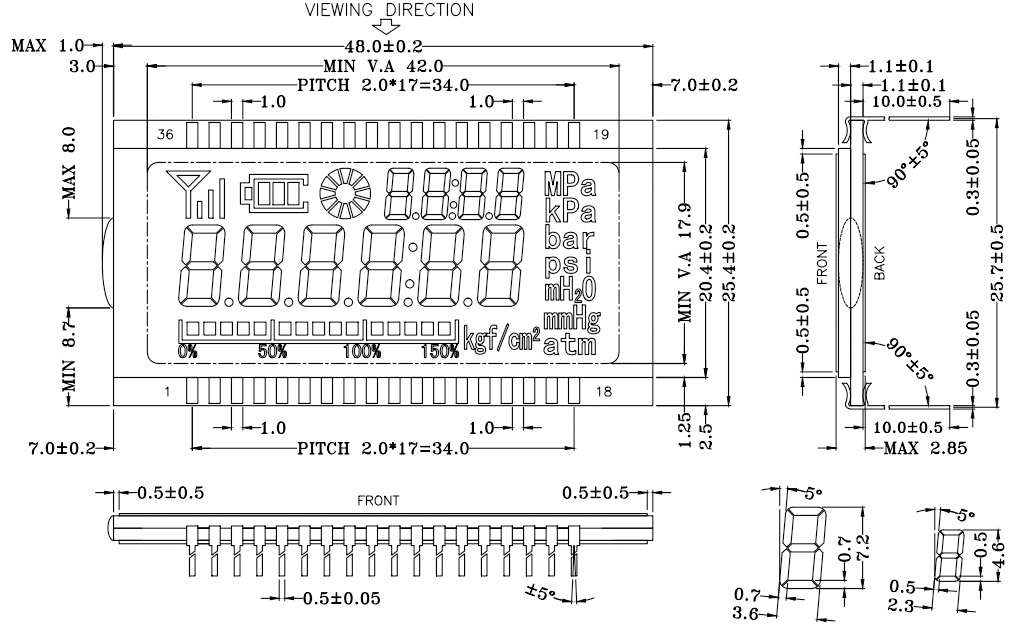

2.Extenal Dimensions

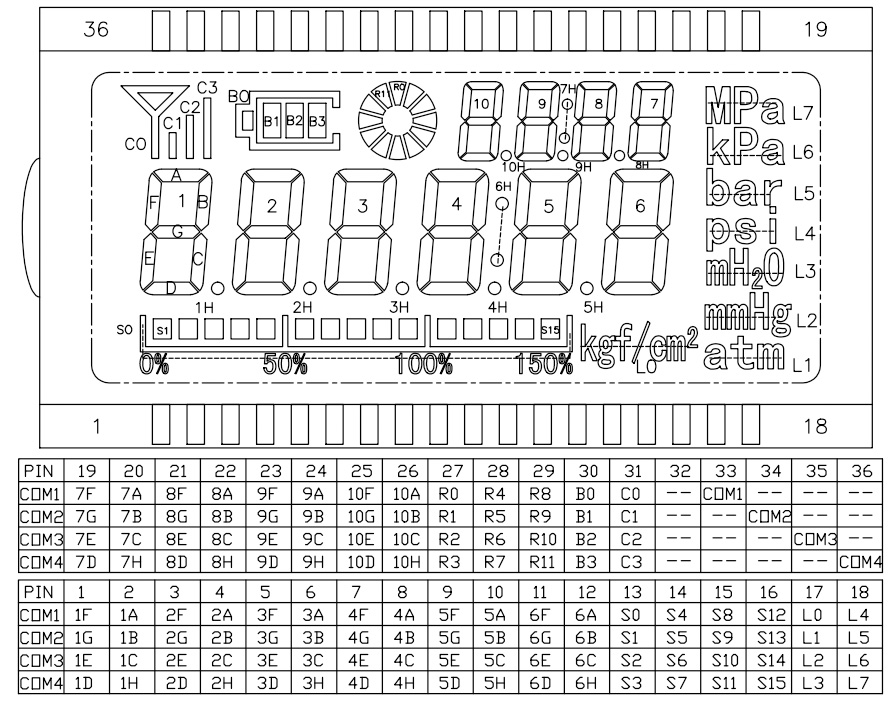

3.Pin Descriptions

4.Photo Display

5.Packing & Delivery
