40PIN HTN Positive 4-1/2 Digits Segment LCD Panel Digital Display LCD Screen with Electric Quantity 3.3V No Backlight
40PIN HTN Positive 4-1/2 Digits Segment LCD Panel Digital Display LCD Screen with Electric Quantity 3.3V No Backlight
30 sold
Quantity
Detail
Customer Reviews
1.Specification parameters
Display content: 4-1/2-Digits
Outline Dimension: 52.5*30.8*2.8mm
Active Area: 49.5*20.8mm
Display mode: HTN , Positive
Visual angle: 6 O’CLOCK
Connection: Metal PIN
Drive mode: 1/1 Duty , 1/1 Bias
Working voltage: 3.3V
PIN NO.: 40P
Operating Temperature: -20 ~ 70 degrees
Storage Temperature: -30 ~ 80 degrees

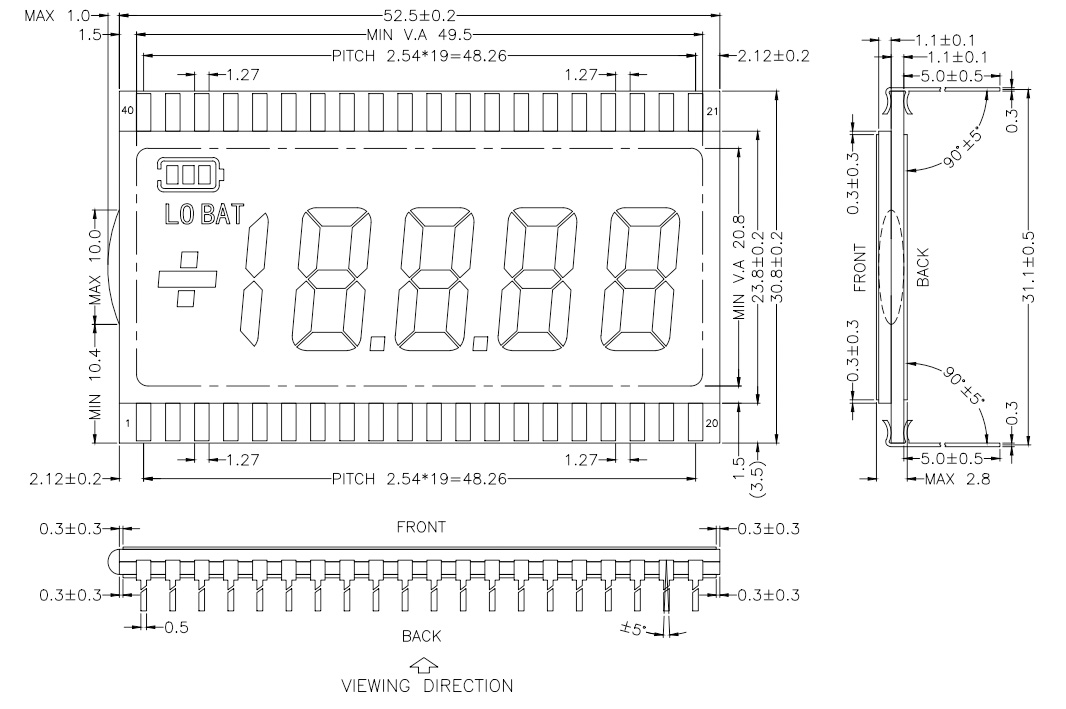

2.Extenal Dimensions
3.Pin Descriptions

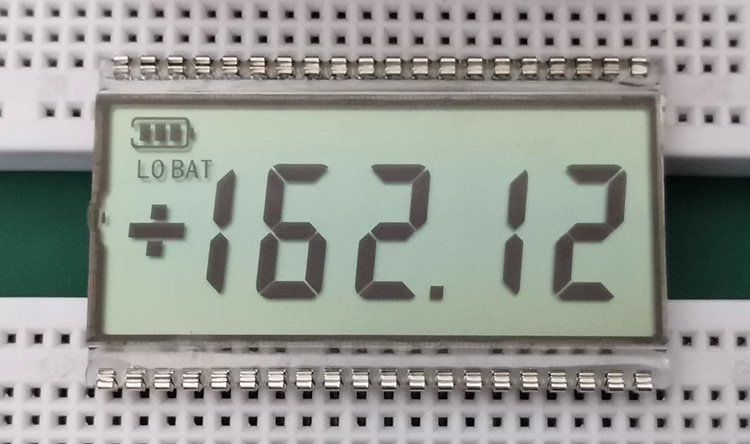

4.Photo Display
5.Packing & Delivery
