LCD 2002 2002B 20X2 Character Liquid Crystal Display Module Screen Parallel Port Screen English/Russian/Japanese/European
LCD 2002 2002B 20X2 Character Liquid Crystal Display Module Screen Parallel Port Screen English/Russian/Japanese/European
Quantity
Detail
Customer Reviews
1.Specification parameters
Characters: 20×2 Lines
LCD Mode: STN
Controller IC: AIP31066 or Equivalent
Driving Method: 1/16 Duty; 1/5Bias
Viewing Angie: 6 O’clock direction
6800 serial 8-Bit/4-Bit MPU Interface
Backlight: LED
Operating Temperature Range: -20 to +70℃;
Storage Temperature Range : -30 to +80℃;
3.Pin Descriptions
4.Photo Display
5.Packing & Delivery
Characters: 20×2 Lines
LCD Mode: STN
Controller IC: AIP31066 or Equivalent
Driving Method: 1/16 Duty; 1/5Bias
Viewing Angie: 6 O’clock direction
6800 serial 8-Bit/4-Bit MPU Interface
Backlight: LED
Operating Temperature Range: -20 to +70℃;
Storage Temperature Range : -30 to +80℃;
2.Extenal Dimensions

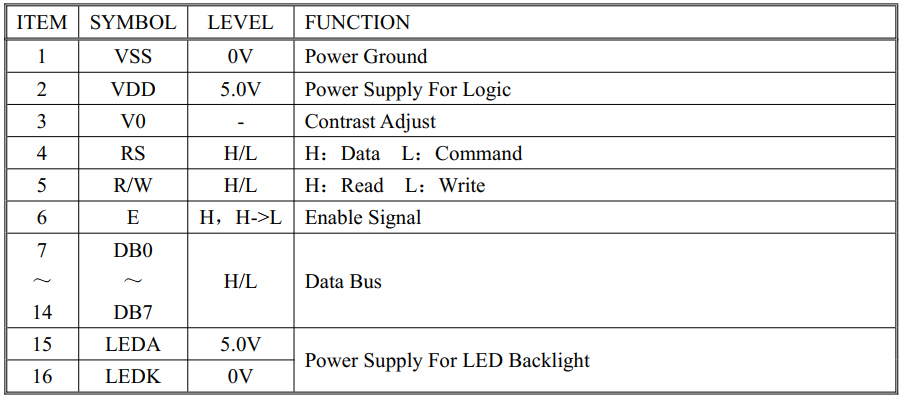

3.Pin Descriptions

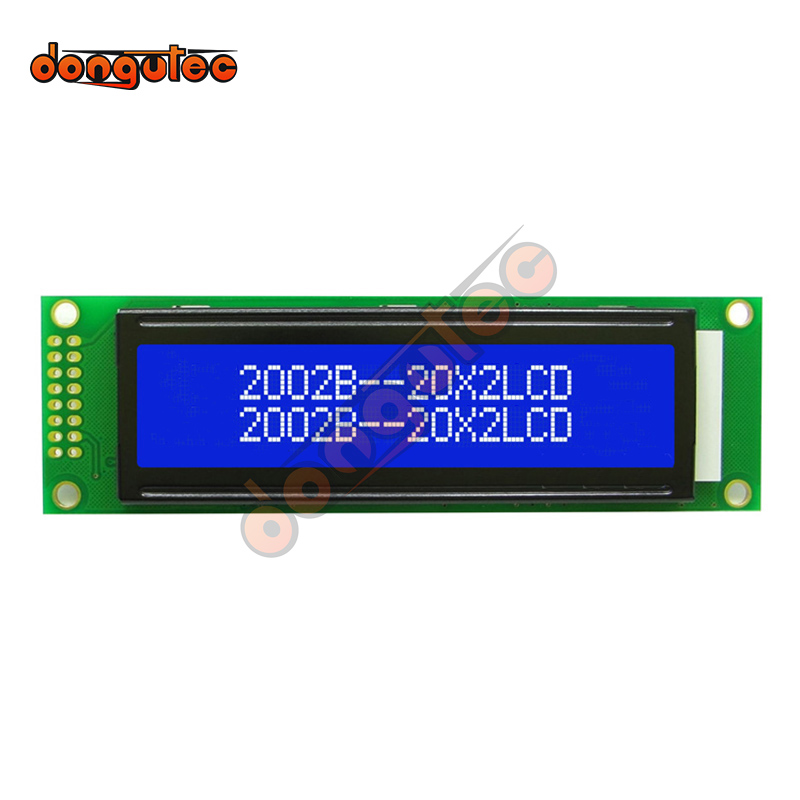

4.Photo Display
5.Packing & Delivery
